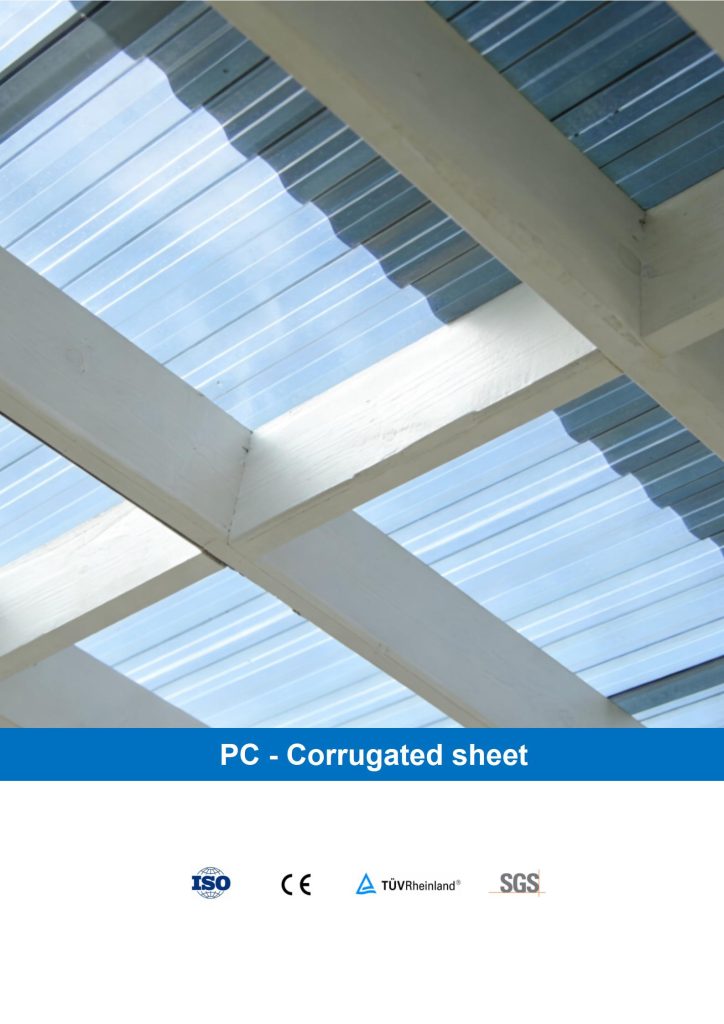

Corrugated Polycarbonate Sheet Product Summary
1. Basic Product Info
| Item | Details |
| Raw Material | Polycarbonate (PC granules) |
| Core Technology | Double-sided UV coating, anti-aging treatment |
| Core Features | High light transmittance, lightweight, high impact resistance, easy installation, convenient lap joint |

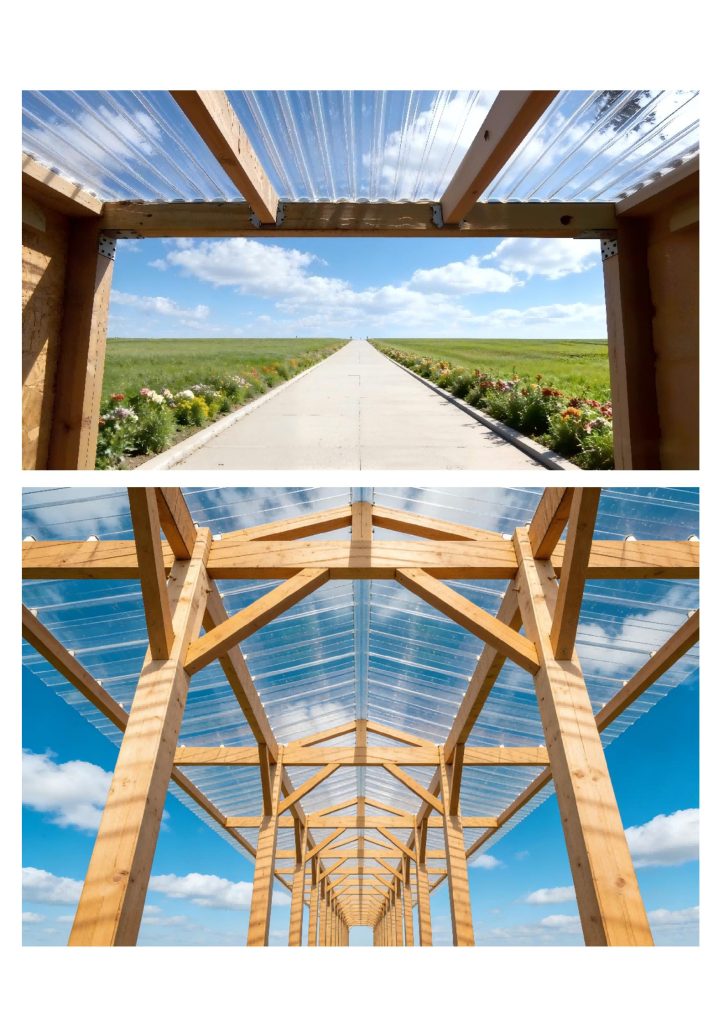

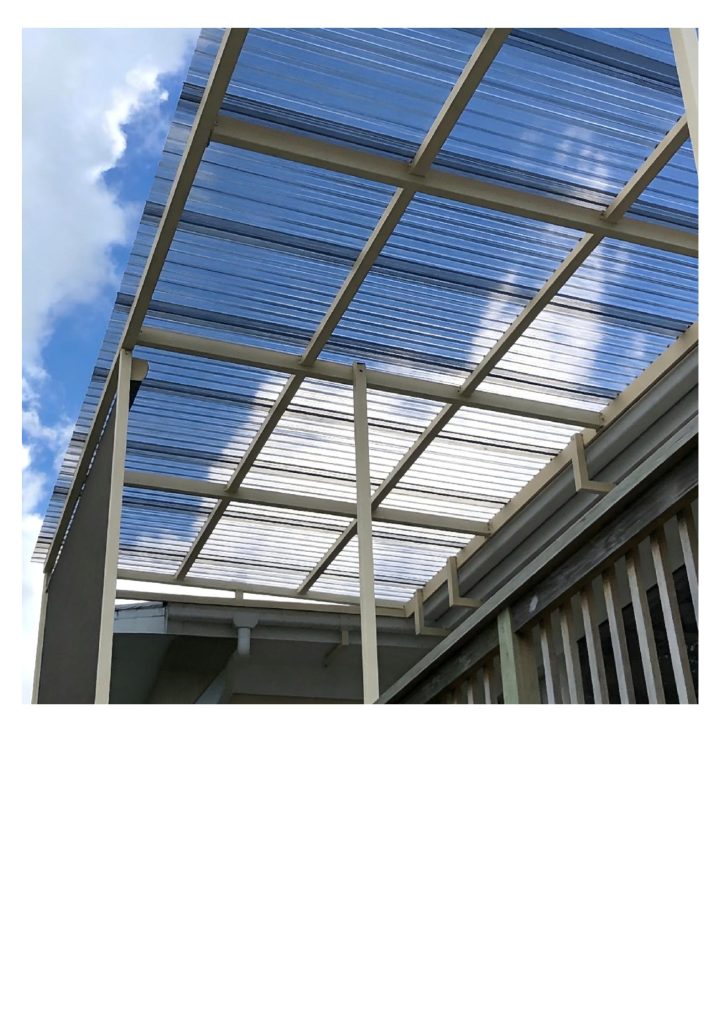

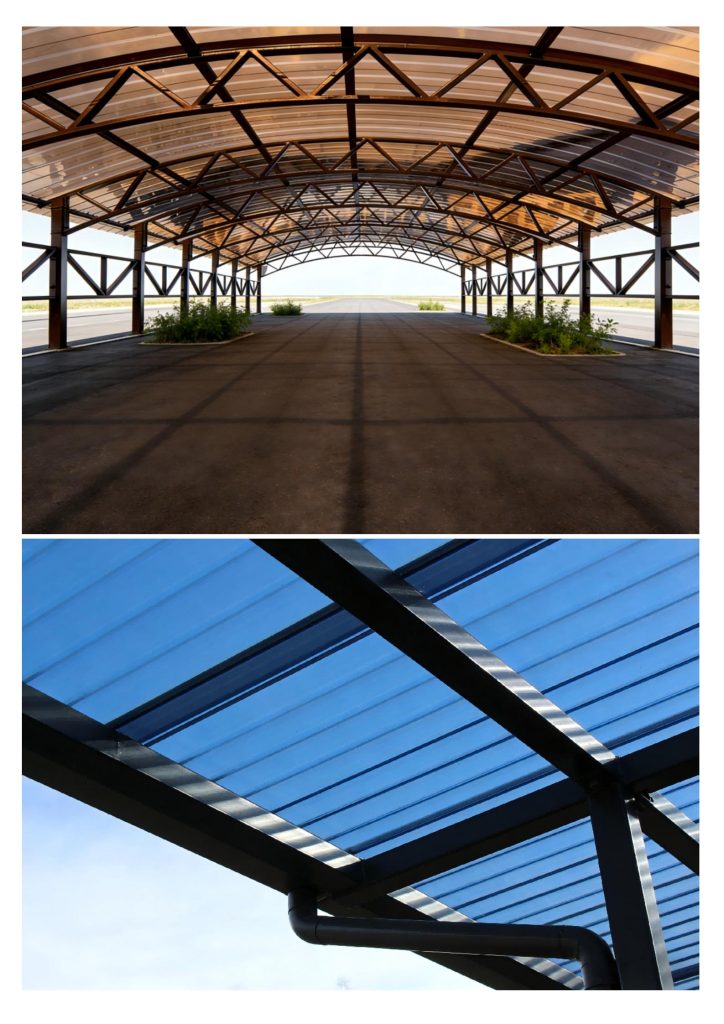

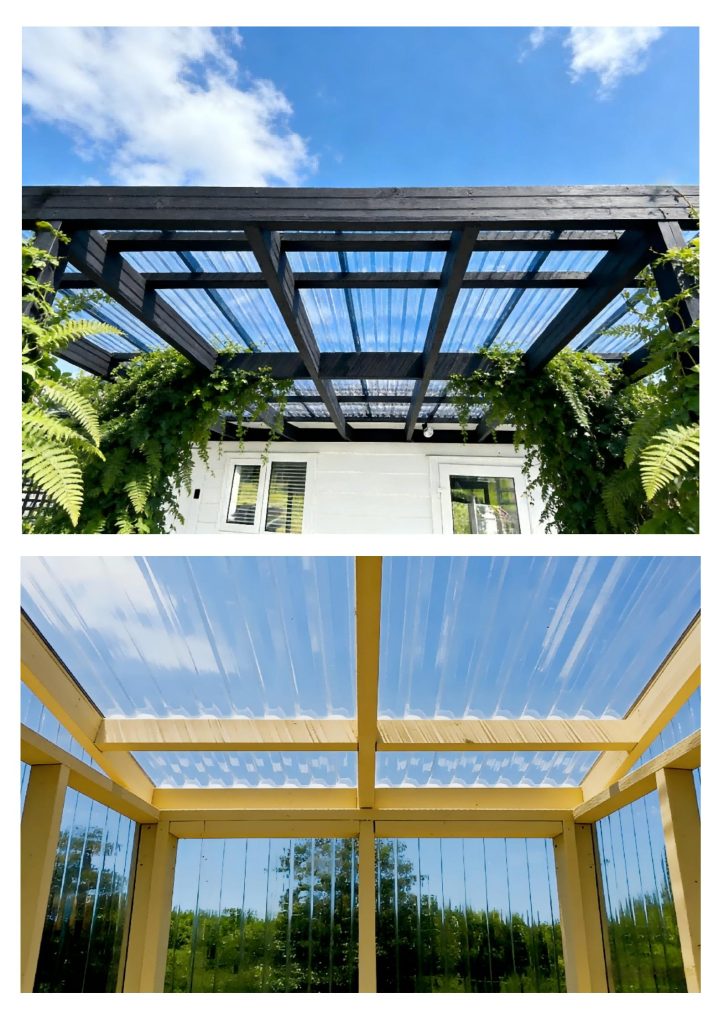

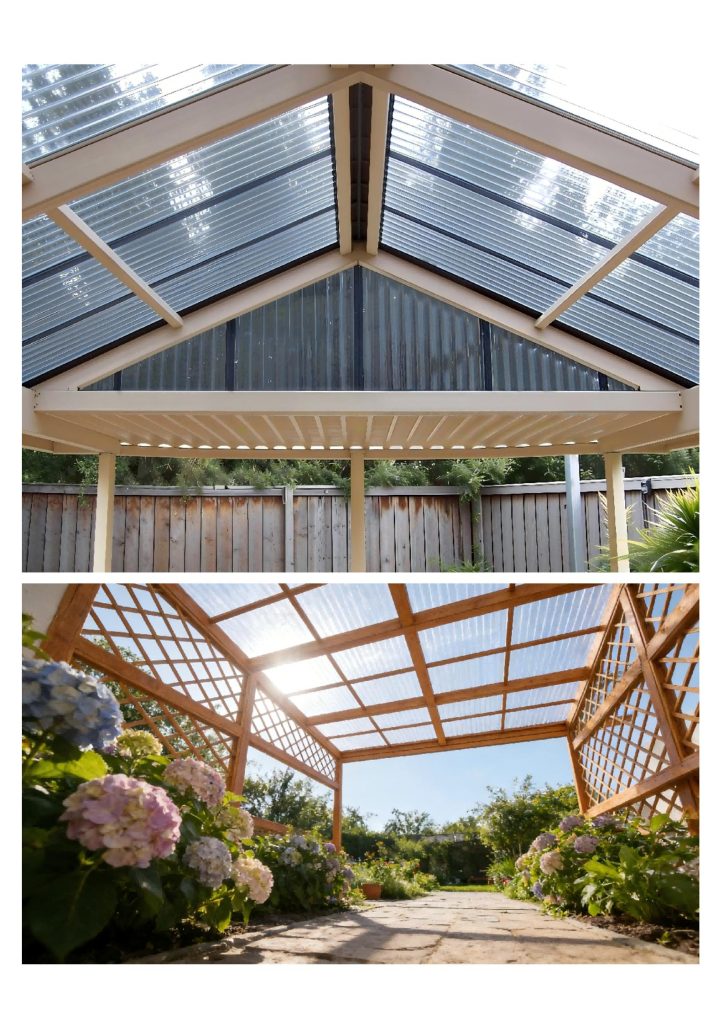

| Application Scenarios | Daylighting patio, greenhouse plant lighting, car shed, canopy, channel daylighting, building enclosure |

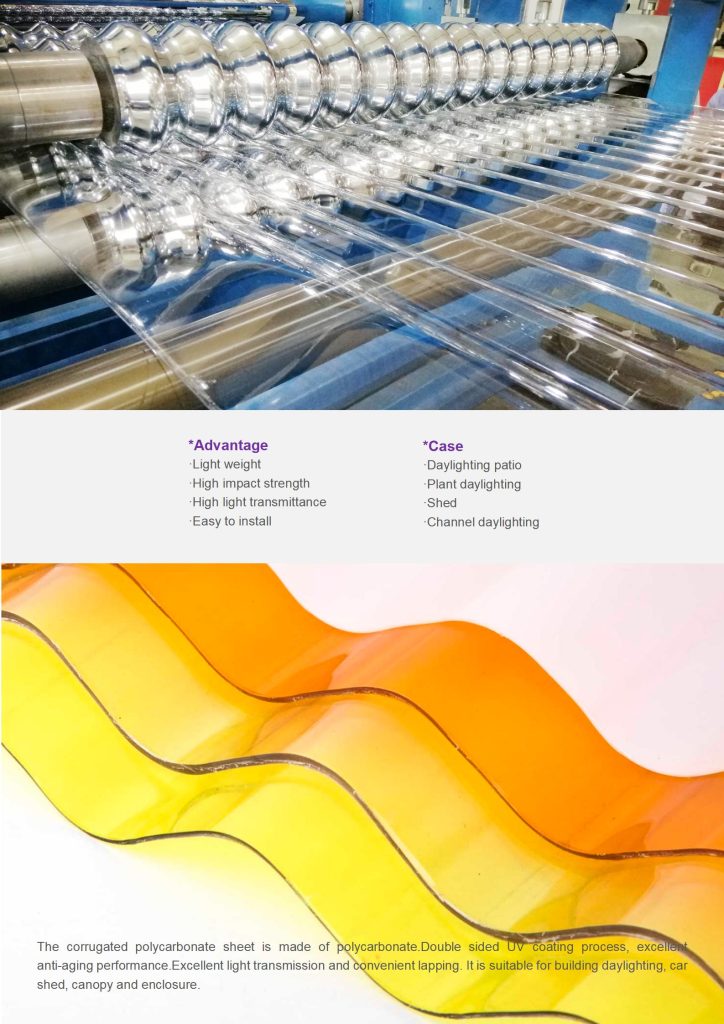

2. Product Advantages
- 1. Light weight
- 2. High impact strength
- 3. High light transmittance
- 4. Easy to install
3. Mould Specification Classification (3 Series Tables)

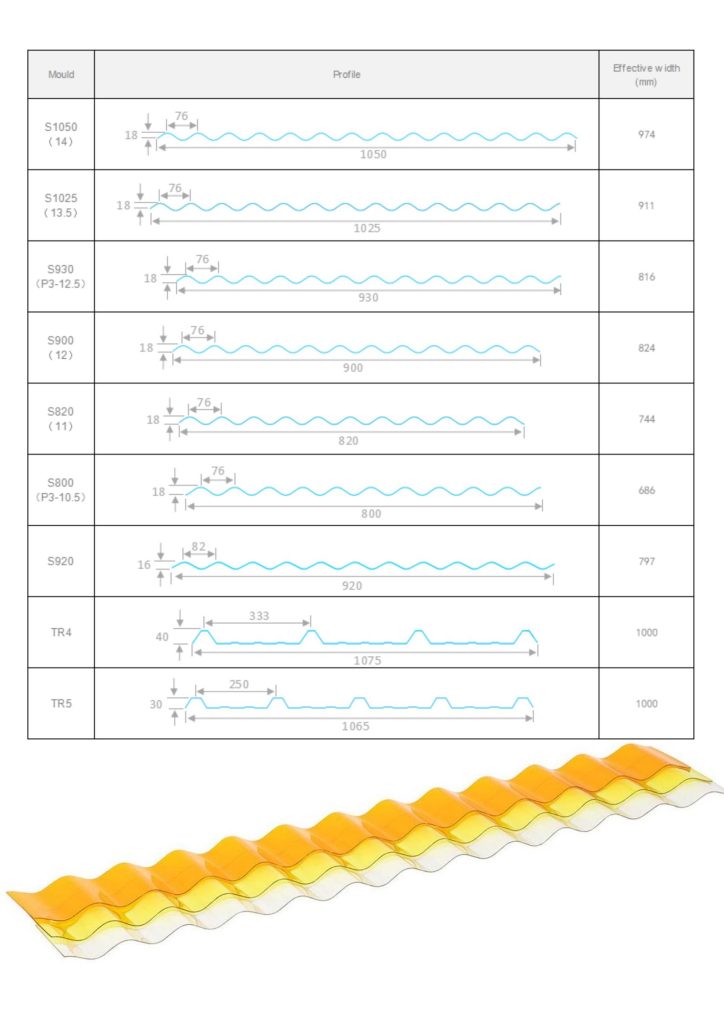

Series 1: Small Wave Conventional Models
| Mould Code | Total Width (mm) | Wave Height (mm) | Wave Spacing (mm) | Effective Width (mm) |
| S1050 (14) | 1050 | 18 | 76 | 974 |
| S1025 (13.5) | 1025 | 18 | 76 | 911 |
| S930 (P3-12.5) | 930 | 18 | 76 | 816 |
| S900 (12) | 900 | 18 | 76 | 824 |
| S820 (11) | 820 | 18 | 76 | 744 |
| S800 (P3-10.5) | 800 | 18 | 76 | 686 |
| S920 | 920 | 16 | 82 | 797 |
| TR4 | 1075 | 40 | 333 | 1000 |
| TR5 | 1065 | 30 | 250 | 1000 |

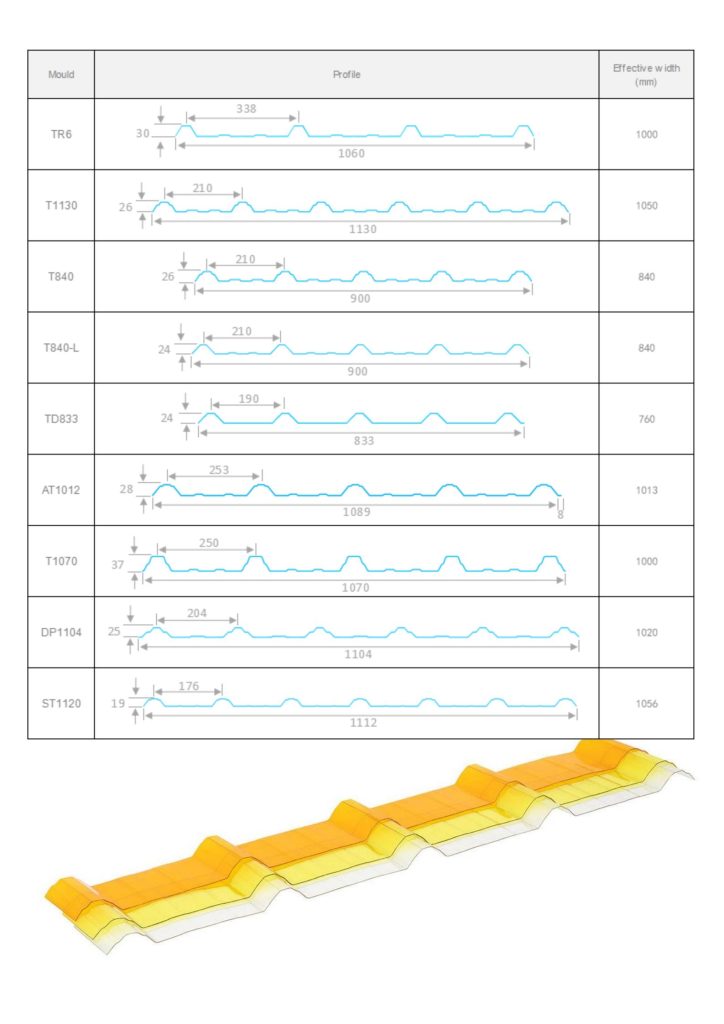

Series 2: Large Wave Industrial Models
| Mould Code | Total Width (mm) | Wave Height (mm) | Wave Spacing (mm) | Effective Width (mm) |
| TR6 | 1060 | 30 | 338 | 1000 |
| T1130 | 1130 | 26 | 210 | 1050 |
| T840 | 900 | 26 | 210 | 840 |
| T840-L | 900 | 24 | 210 | 840 |
| TD833 | 833 | 24 | 190 | 760 |
| AT1012 | 1089 | 28 | 253 | 1013 |
| T1070 | 1070 | 37 | 250 | 1000 |
| DP1104 | 1104 | 25 | 204 | 1020 |
| ST1120 | 1112 | 19 | 176 | 1056 |

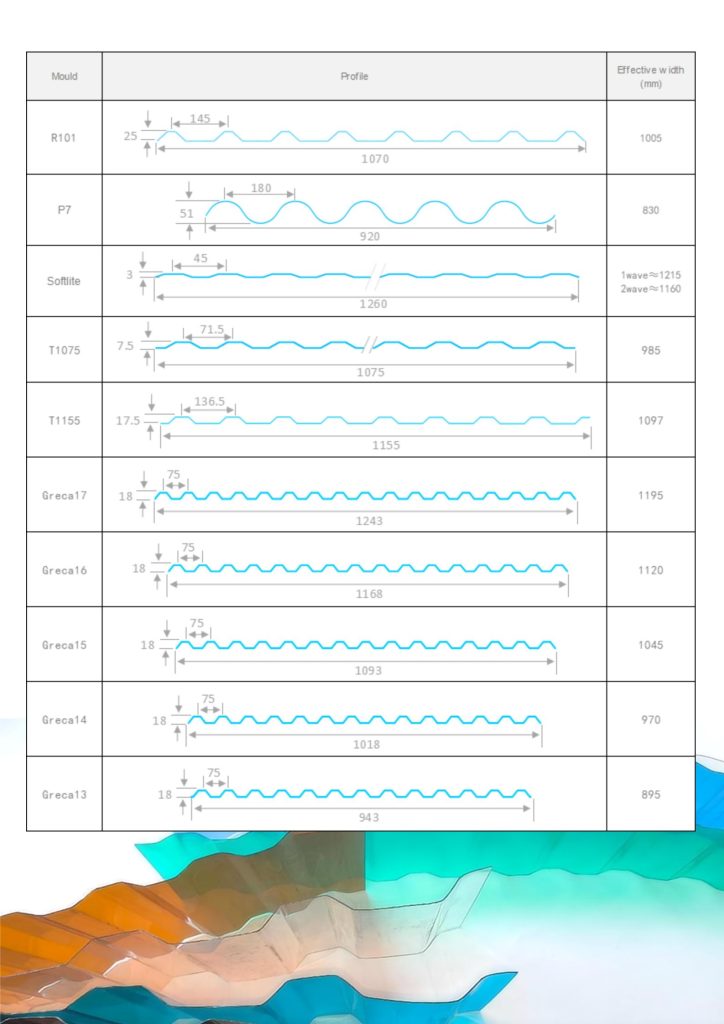

Series 3: European Standard Wave Models
| Mould Code | Total Width (mm) | Wave Height (mm) | Wave Spacing (mm) | Effective Width (mm) |
| R101 | 1070 | 25 | 145 | 1005 |
| P7 | 920 | 51 | 180 | 830 |
| Softlite | 1260 | 3 | 45 | 1 wave≈1215, 2 waves≈1160 |
| T1075 | 1075 | 7.5 | 71.5 | 985 |
| T1155 | 1155 | 17.5 | 136.5 | 1097 |
| Greca17 | 1243 | 18 | 75 | 1195 |
| Greca16 | 1168 | 18 | 75 | 1120 |
| Greca15 | 1093 | 18 | 75 | 1045 |
| Greca14 | 1018 | 18 | 75 | 970 |
| Greca13 | 943 | 18 | 75 | 895 |

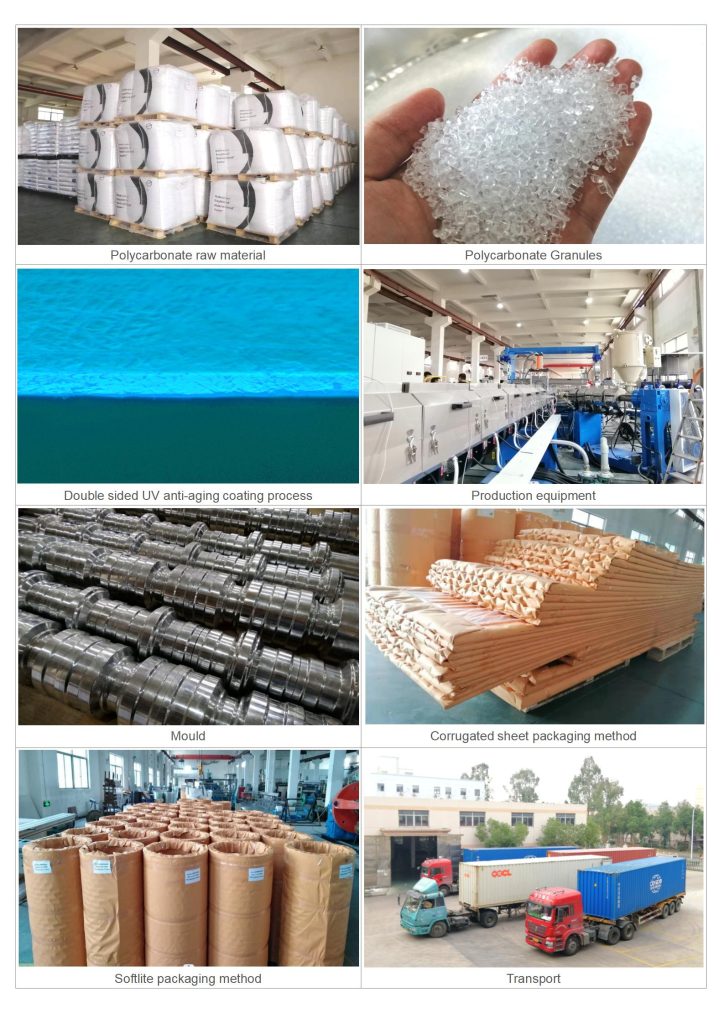

4. Production & Supporting Materials
- 1. Raw Material: Polycarbonate bulk resin packages, transparent PC plastic granules
- 2. Production Equipment: Full-automatic corrugated sheet extrusion production line
- 3. Processing Mold: Corrugated metal forming roller molds

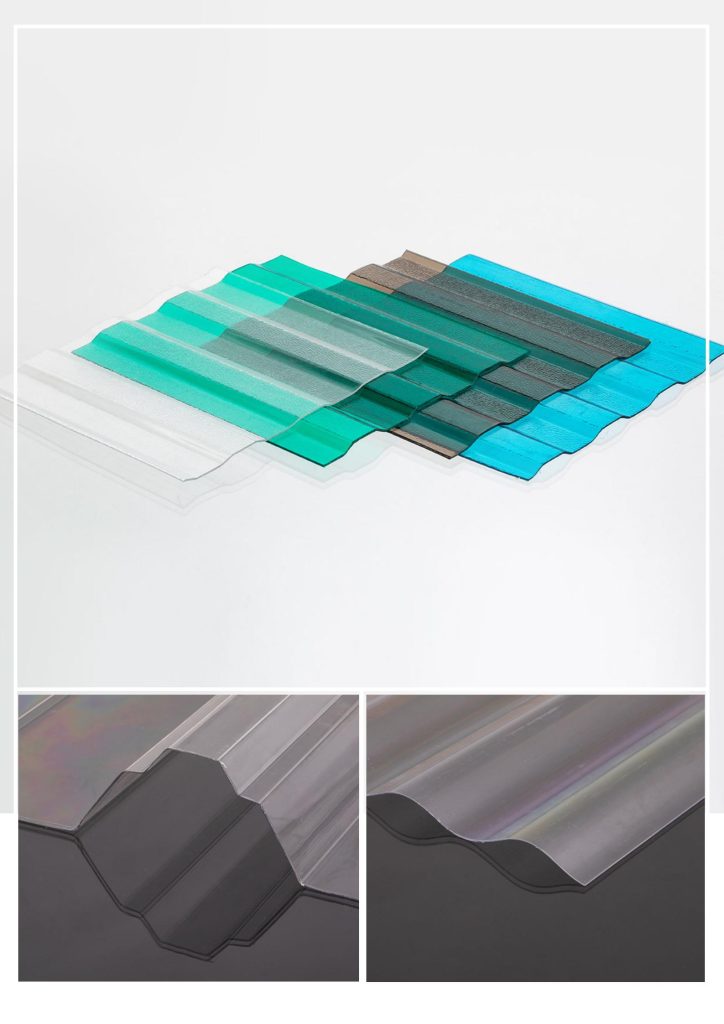

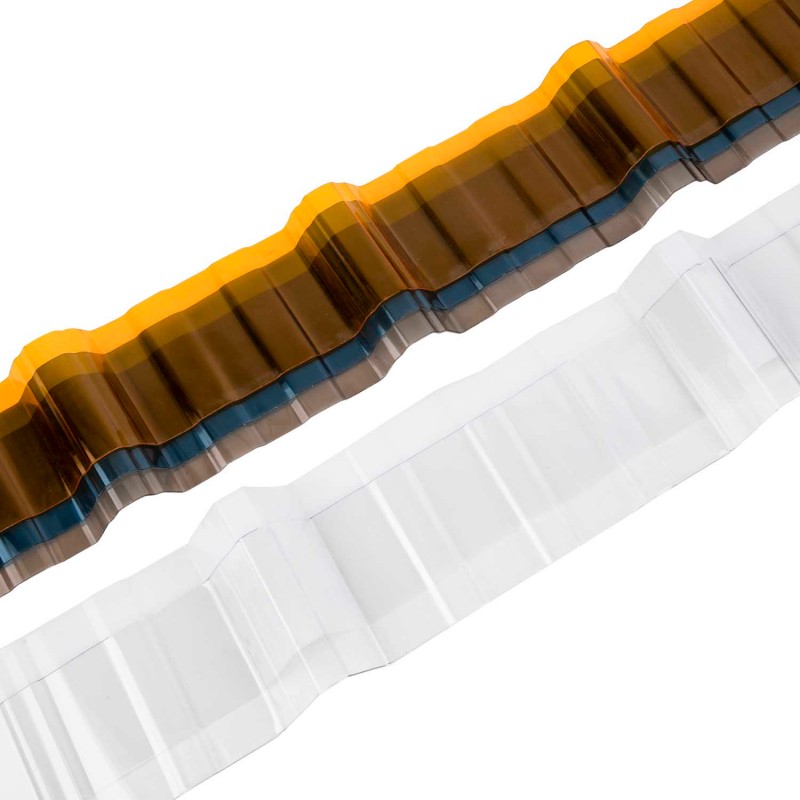

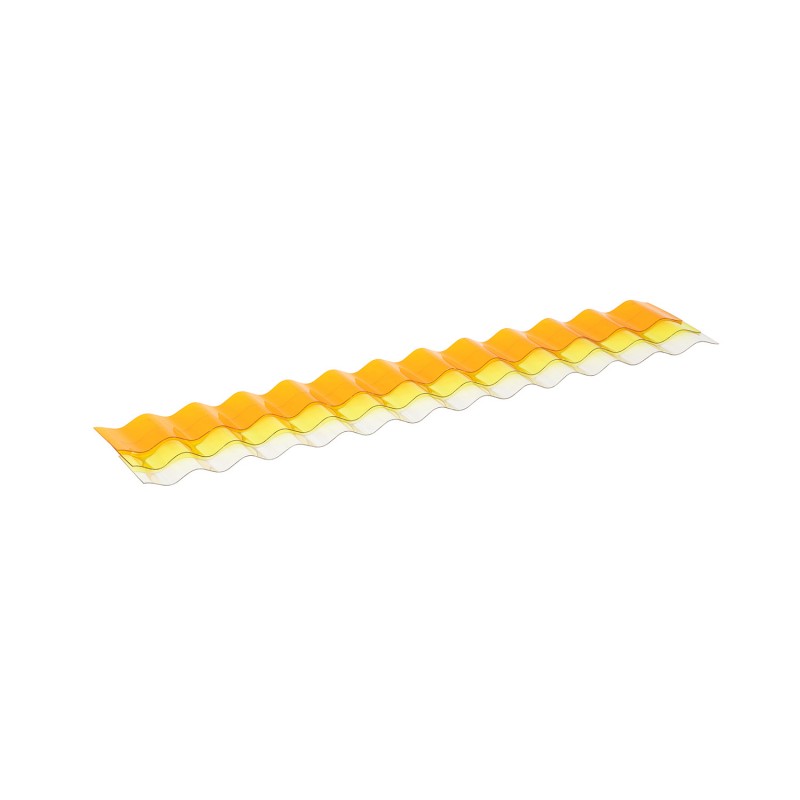

- 4. Color Options: Transparent, blue, green, yellow, orange, smoke brown, frosted surface
5. Packaging & Logistics
| Product Type | Packaging Method | Transport Mode |
| Conventional corrugated PC sheet | Stacked and wrapped with kraft paper pallet packaging | Container truck bulk delivery |
| Softlite thin corrugated sheet | Rolled kraft paper cylinder packaging | Container truck bulk delivery |

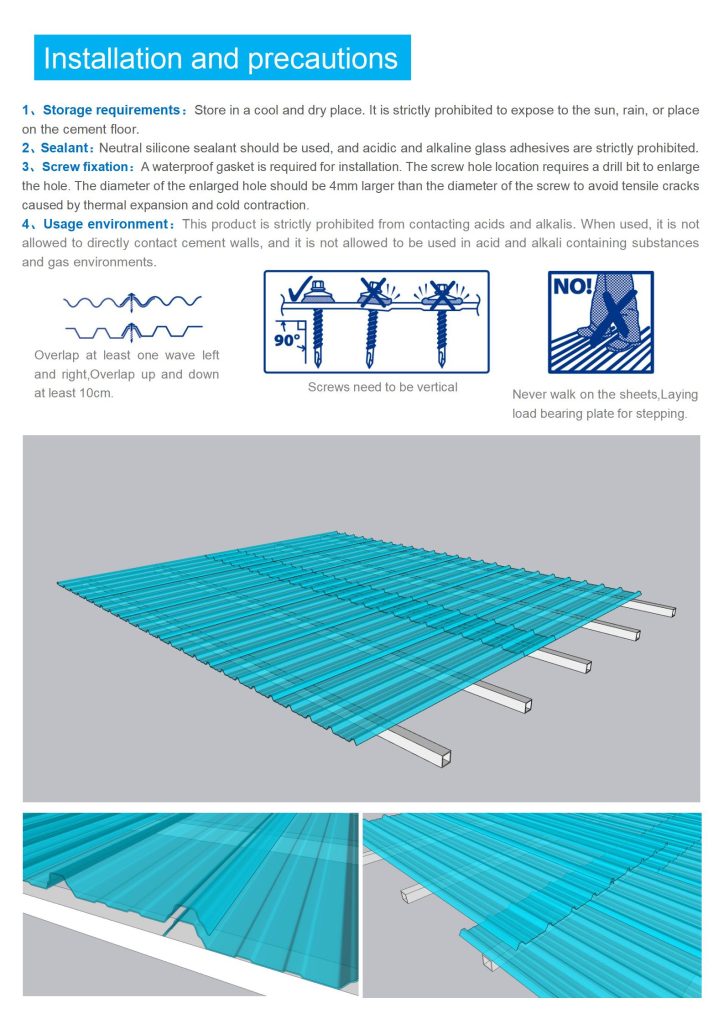

6. Installation & Operation Precautions
6.1 Storage Rules
- • Store in cool, dry warehouse
- • Forbid direct sunlight exposure, rain soaking, direct contact with cement floor
6.2 Sealant Requirement
- • Only neutral silicone sealant allowed
- • Acidic & alkaline glass glue are prohibited
6.3 Screw Fixing Standard
- 1. Must equip waterproof gaskets for all screws
- 2. Pre-drill expansion holes: hole diameter 4mm larger than screw diameter (resist thermal expansion & cold contraction cracking)
- 3. Screws must be perpendicular (90°) to sheet surface; inclined screw installation forbidden
- 4. Overlap standard:
- • Horizontal side lap: minimum 1 complete wave
- • Vertical upper & lower lap: ≥10cm
- 5. Forbid walking directly on PC sheets; lay bearing temporary plates for construction stepping
6.4 Service Environment Restrictions
- 1. Prolonged contact with acid/alkali substances is forbidden
- 2. Cannot attach directly to cement walls
- 3. Not applicable for environments with acid, alkali substances or corrosive gas
