Type	Thickness	Width	Length
Double-wall hollow	4mm, 6mm, 8mm, 10mm, 12mm	2100mm, 1830mm, 1220mm, 1050mm	5.8m, 6m, 11.8m
Four-wall hollow	6mm, 8mm, 10mm, 12mm, 16mm	2100mm, 1830mm, 1220mm, 1050mm	5.8m, 6m, 11.8m
Honeycomb	6mm, 8mm, 10mm, 12mm	2100mm, 1830mm, 1220mm, 1050mm	5.8m, 6m, 11.8m
X-shape	16mm, 18mm, 20mm, 25mm	2100mm, 1830mm, 1220mm, 1050mm	5.8m, 6m, 11.8m

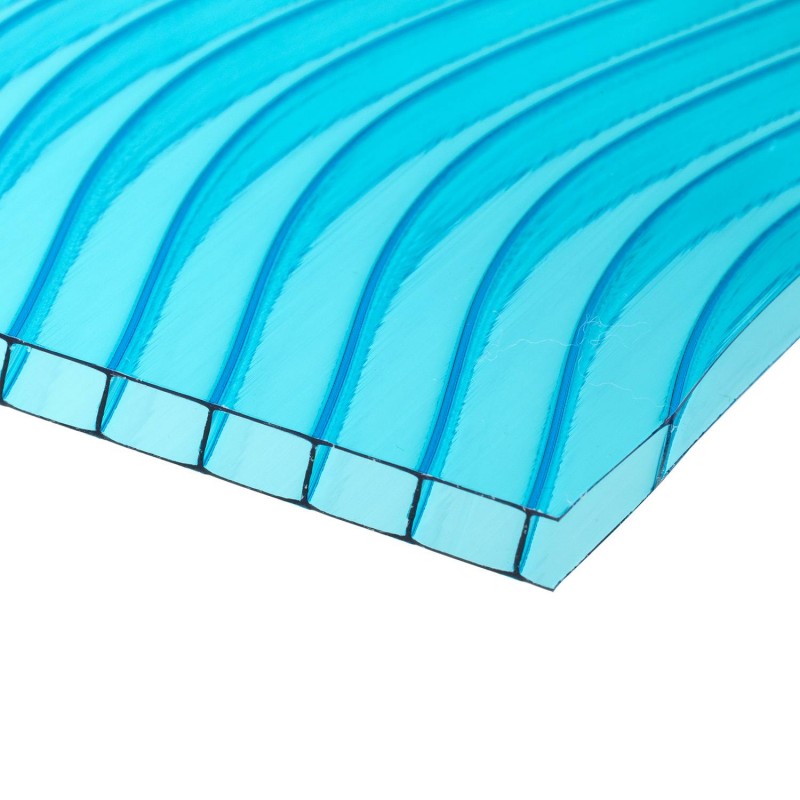

Polycarbonate Hollow Sheet

Virgin Bayer / Sabic PC Raw Material | 50μm Anti-UV Coating | 10 Years Quality Warranty

Product Introduction – PC Hollow Polycarbonate Sheet

PC hollow sheet is produced from virgin polycarbonate raw materials (main suppliers: Bayer and Sabic), recycled materials are strictly forbidden. The sheet surface is covered with a 50-micron anti-ultraviolet UV coating to extend service life, with a 10-year official quality guarantee.

It features customizable light transmittance, lightweight & high strength, and thermal insulation performance. Widely applied in greenhouses, building skylights, carports, rain shelters and corridor canopies.

Core Advantages: Anti-UV & Anti-Aging Performance

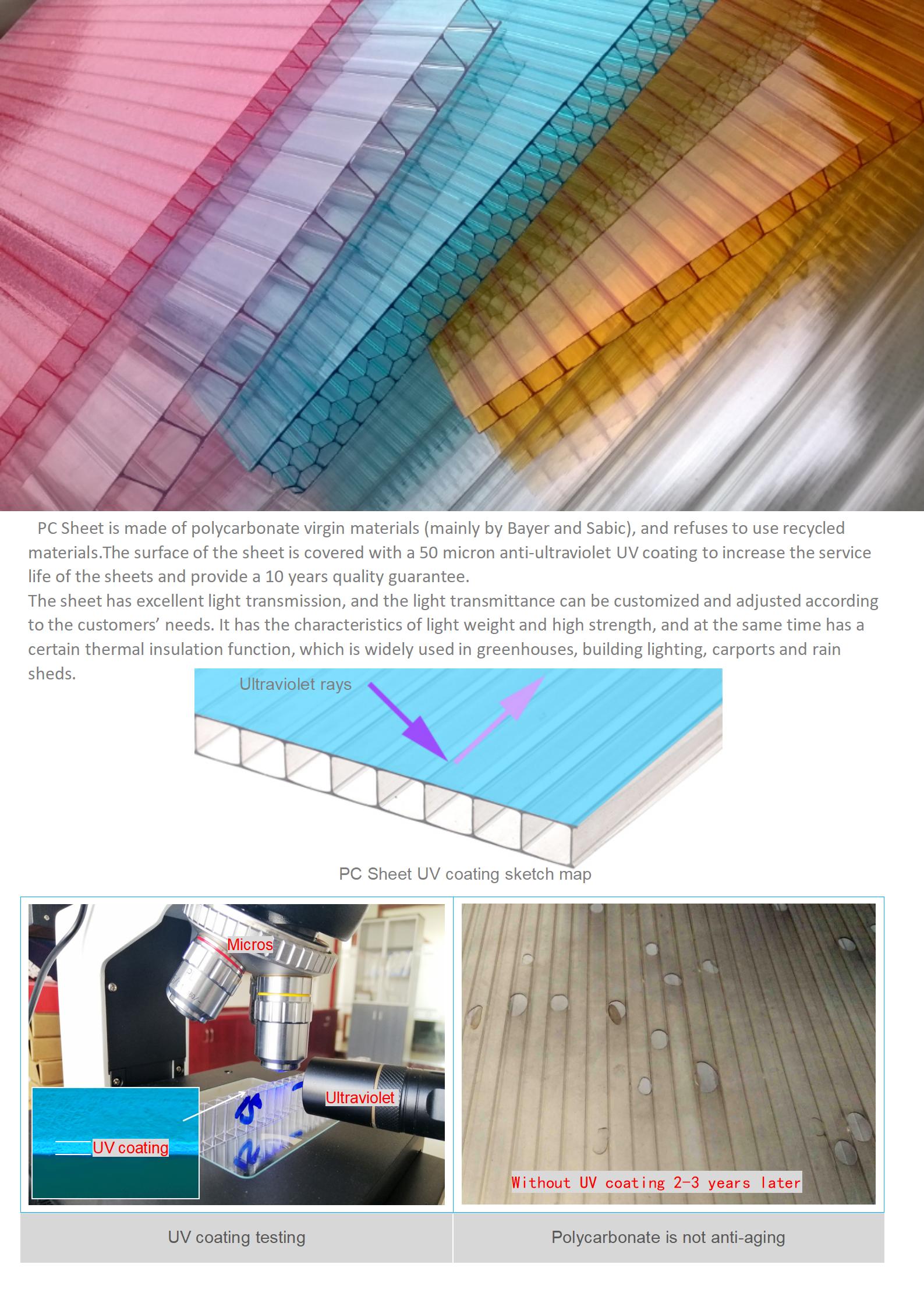

Contrast of Sheets With / Without UV Coating

Sheets without UV coating will crack, yellow and perforate within 2-3 years under outdoor sunlight exposure.
Our 50μm UV coating can block ultraviolet rays effectively.

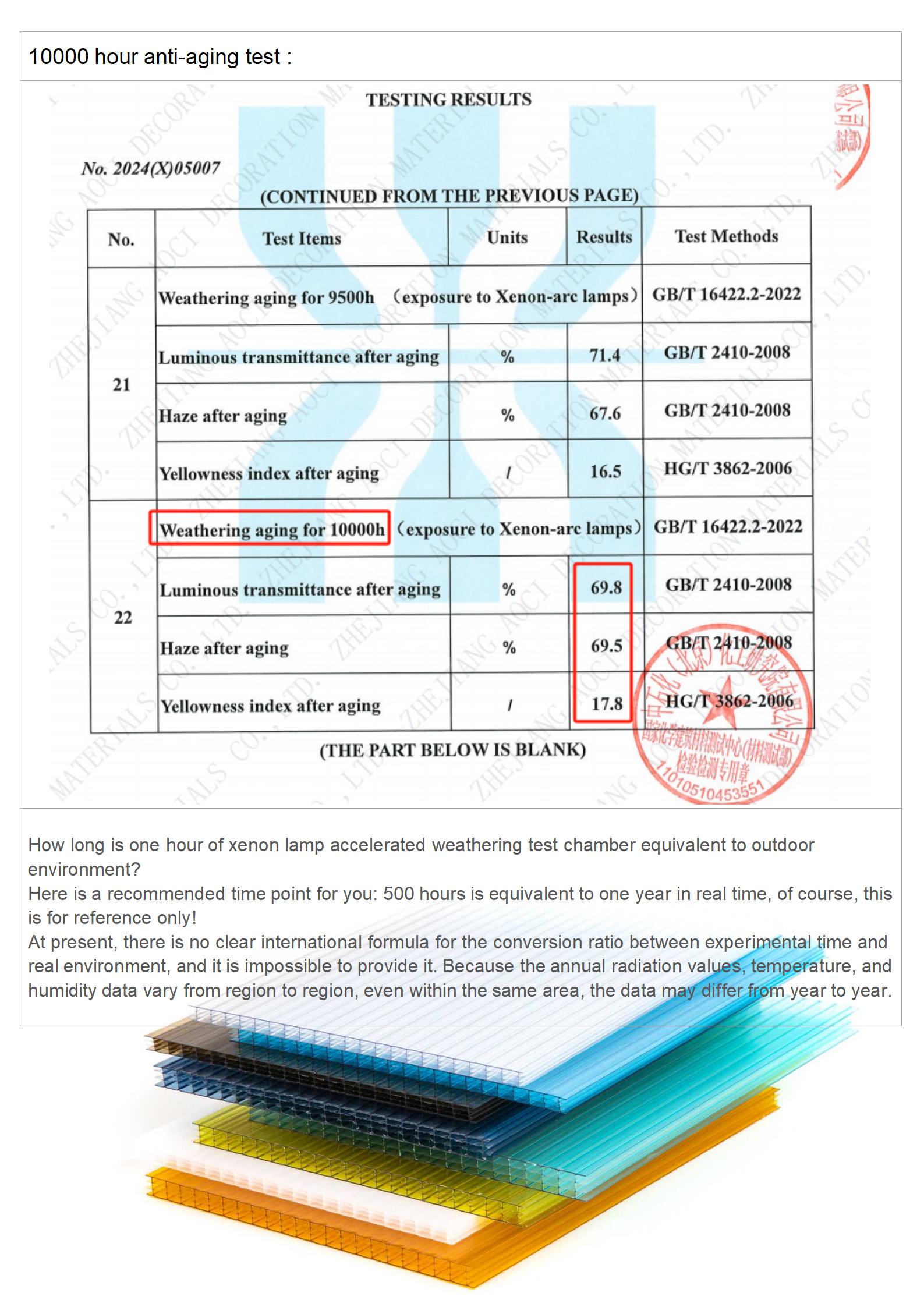

Xenon Lamp Accelerated Aging Test Data

Test Item	9500 Hours Aging Result	10000 Hours Aging Result	Test Standard
Luminous Transmittance	71.4%	69.8%	GB/T 2410-2008
Haze	67.6%	69.5%	GB/T 2410-2008
Yellowness Index	16.5	17.8	HG/T 3862-2006

Reference conversion: 500 hours of xenon lamp test ≈ 1 year natural outdoor exposure (for reference only; no unified international conversion formula due to regional light, temperature and humidity differences).

Technical Specifications & Light Transmittance Data

Light Transmittance by Thickness (Unit: %, Tolerance ±3%)

Thickness(mm)	Clear	Bronze	Opal	Blue	Blue-green	Green
4	82	58	57	45	55	45
6	80	50	56	36	50	42
8	80	44	52	30	47	40
10	79	40	44	28	42	35
12	70	38	42	25	40	34
16	65	36	40	24	38	32
20	63	35	38	23	35	31
25	60	33	36	21	33	30

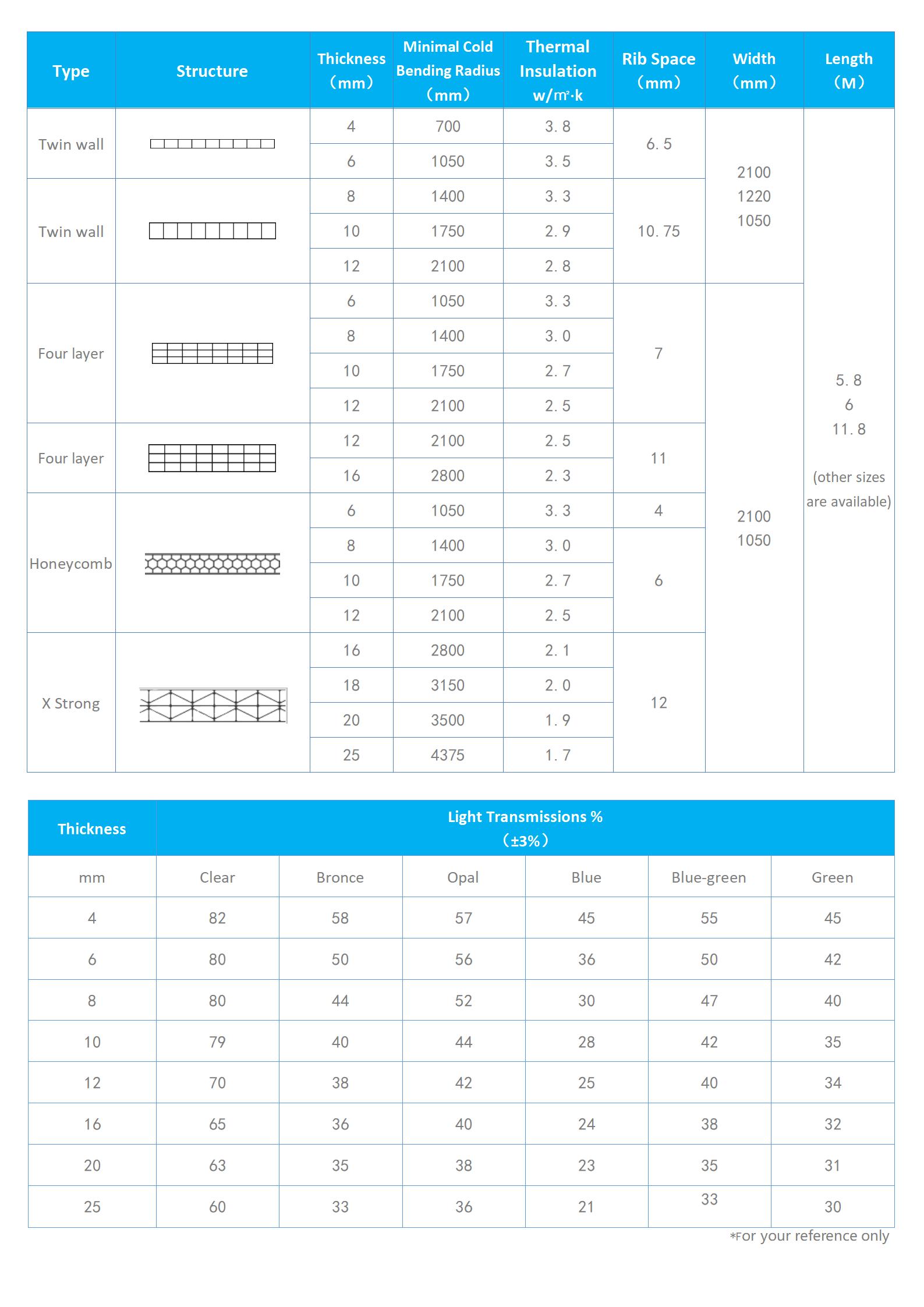

Structure Type Parameter Table

Structure Type	Thickness(mm)	Min Cold Bending Radius(mm)	Thermal Insulation Coefficient(W/㎡·k)	Rib Space(mm)
Twin Wall	4	700	3.8	6.5
Twin Wall	6	1050	3.5	6.5
Twin Wall	8	1400	3.3	10.75
Twin Wall	10	1750	2.9	10.75
Twin Wall	12	2100	2.8	10.75
Four Layer	6	1050	3.3	7
Four Layer	8	1400	3.0	7
Four Layer	10	1750	2.7	7
Four Layer	12	2100	2.5	11
Four Layer	16	2800	2.3	11
Honeycomb	6	1050	3.3	4
Honeycomb	8	1400	3.0	6
Honeycomb	10	1750	2.7	6
Honeycomb	12	2100	2.5	6
X Strong	16	2800	2.1	12
X Strong	18	3150	2.0	12
X Strong	20	3500	1.9	12
X Strong	25	4375	1.7	12

Standard width: 1050mm / 1220mm / 2100mm
Standard length: 5.8m / 6m / 11.8m, custom sizes available.

Application Fields

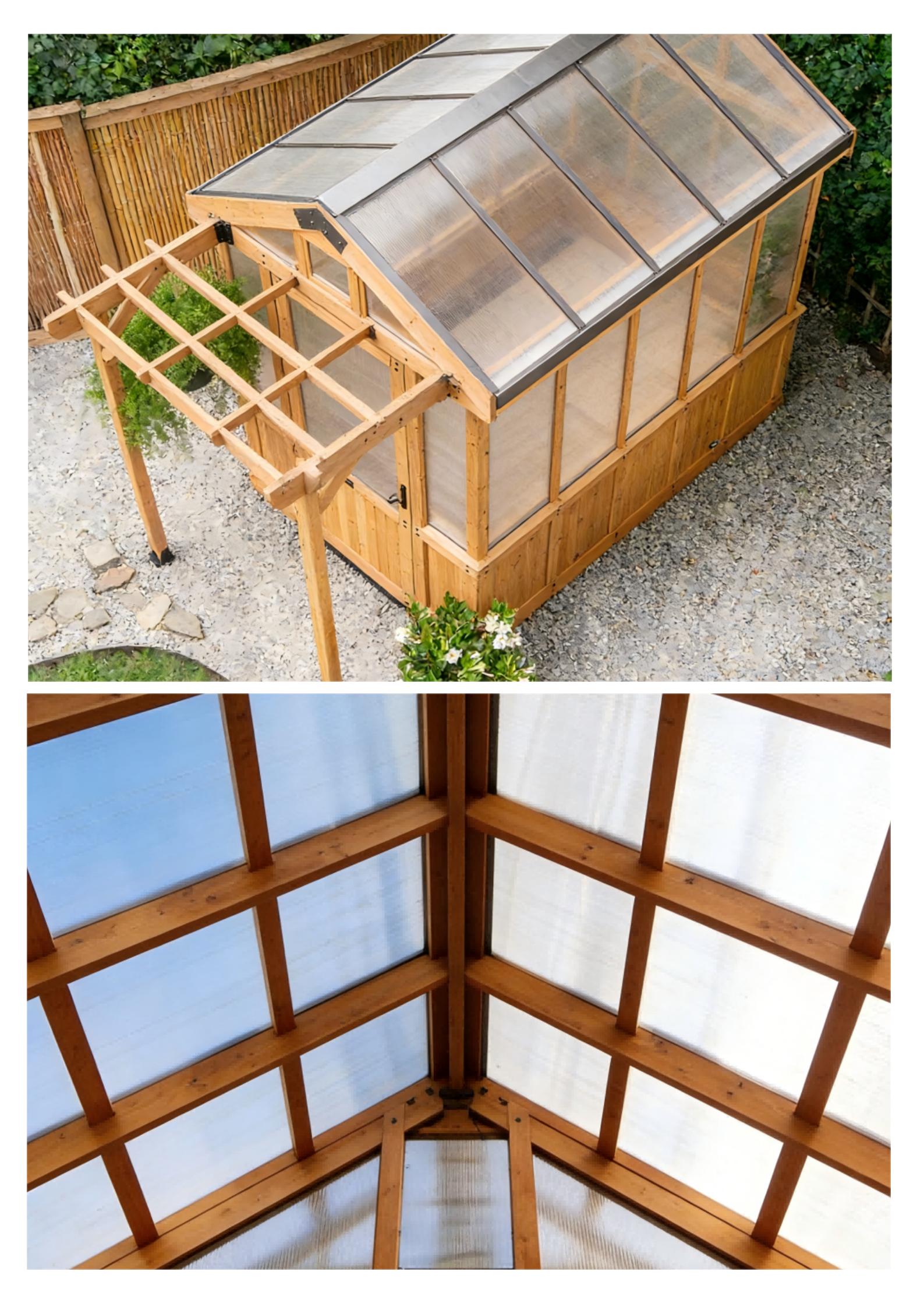

• Agricultural greenhouses & flower houses

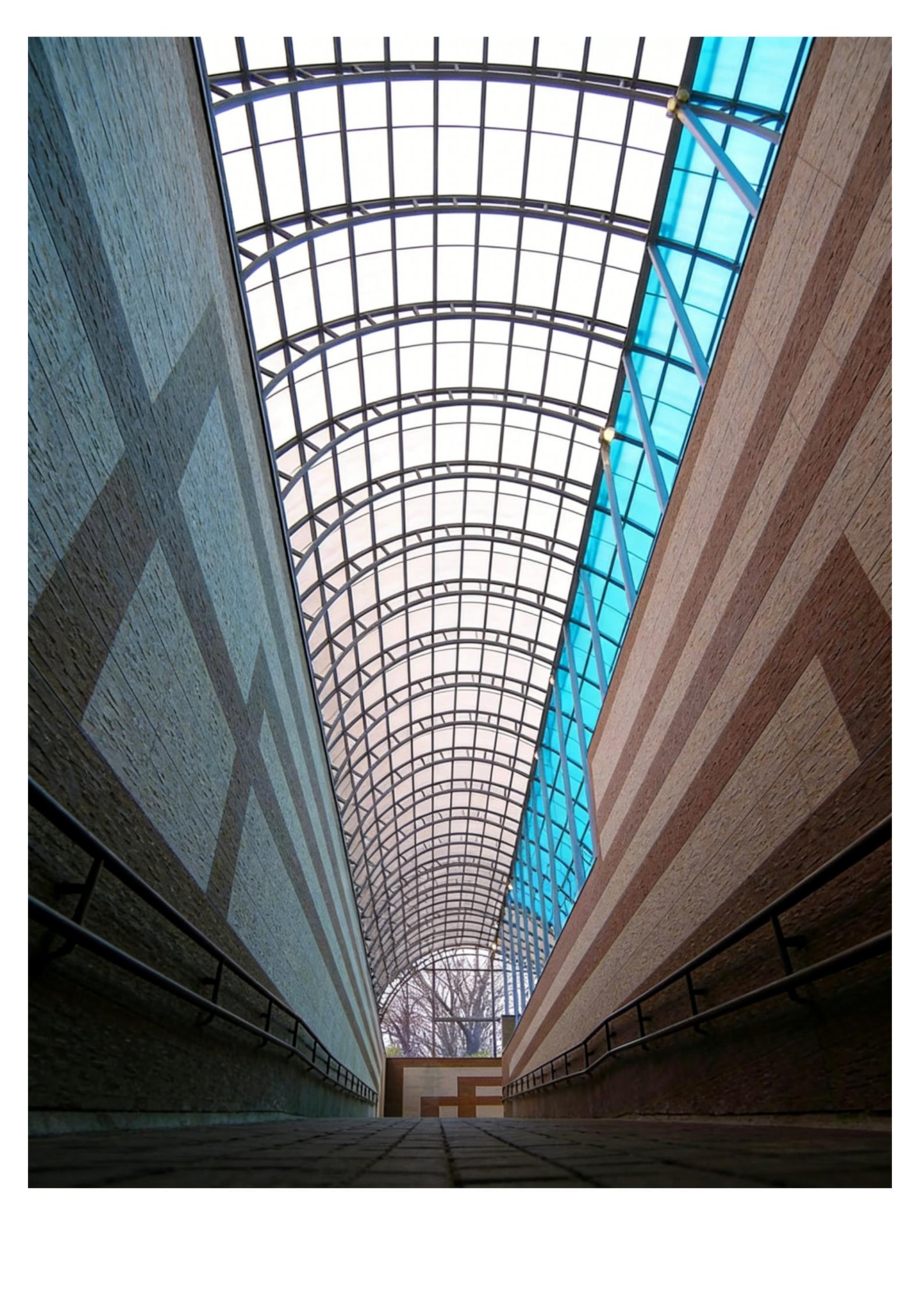

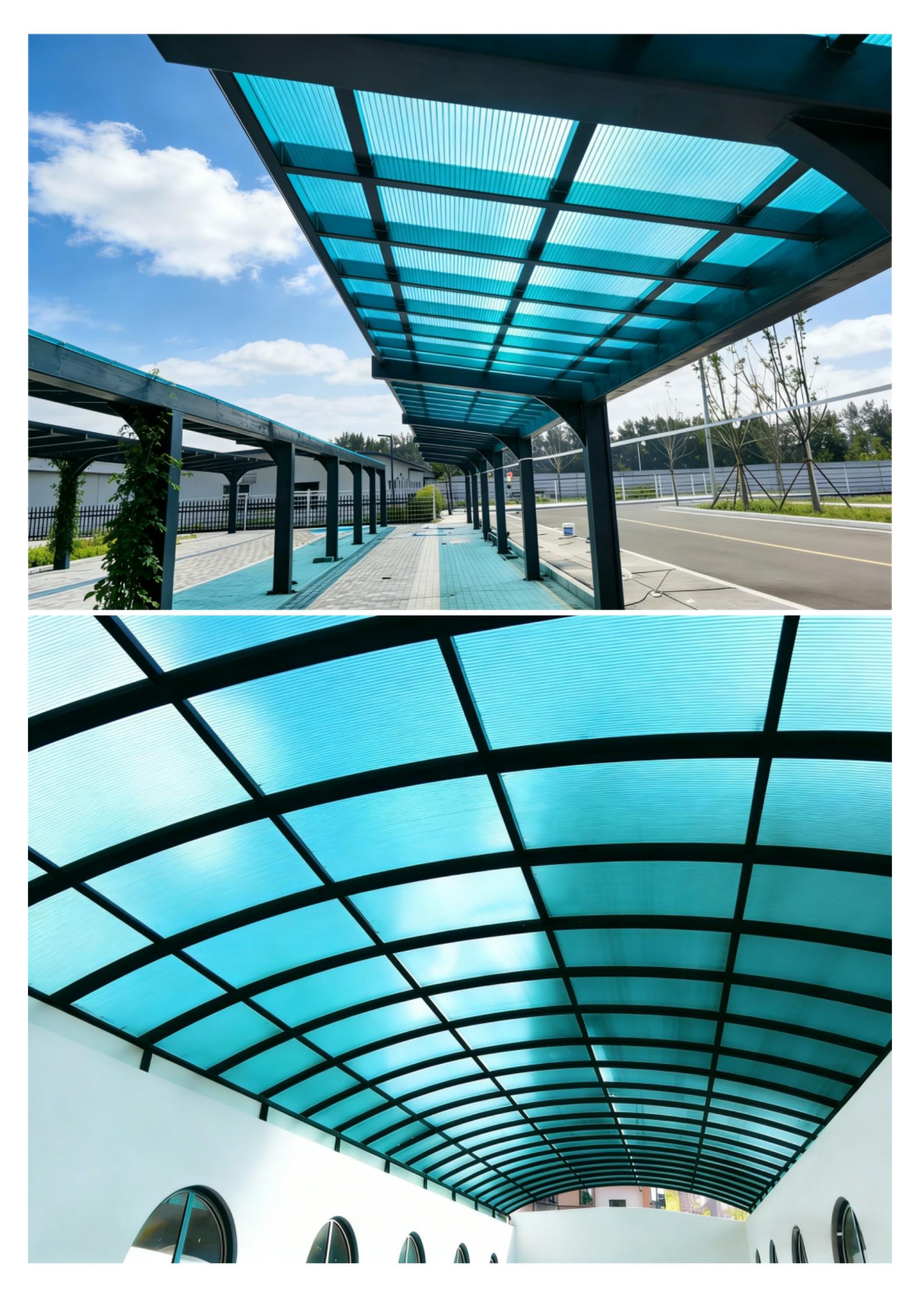

• Building skylights, corridor & curved canopies

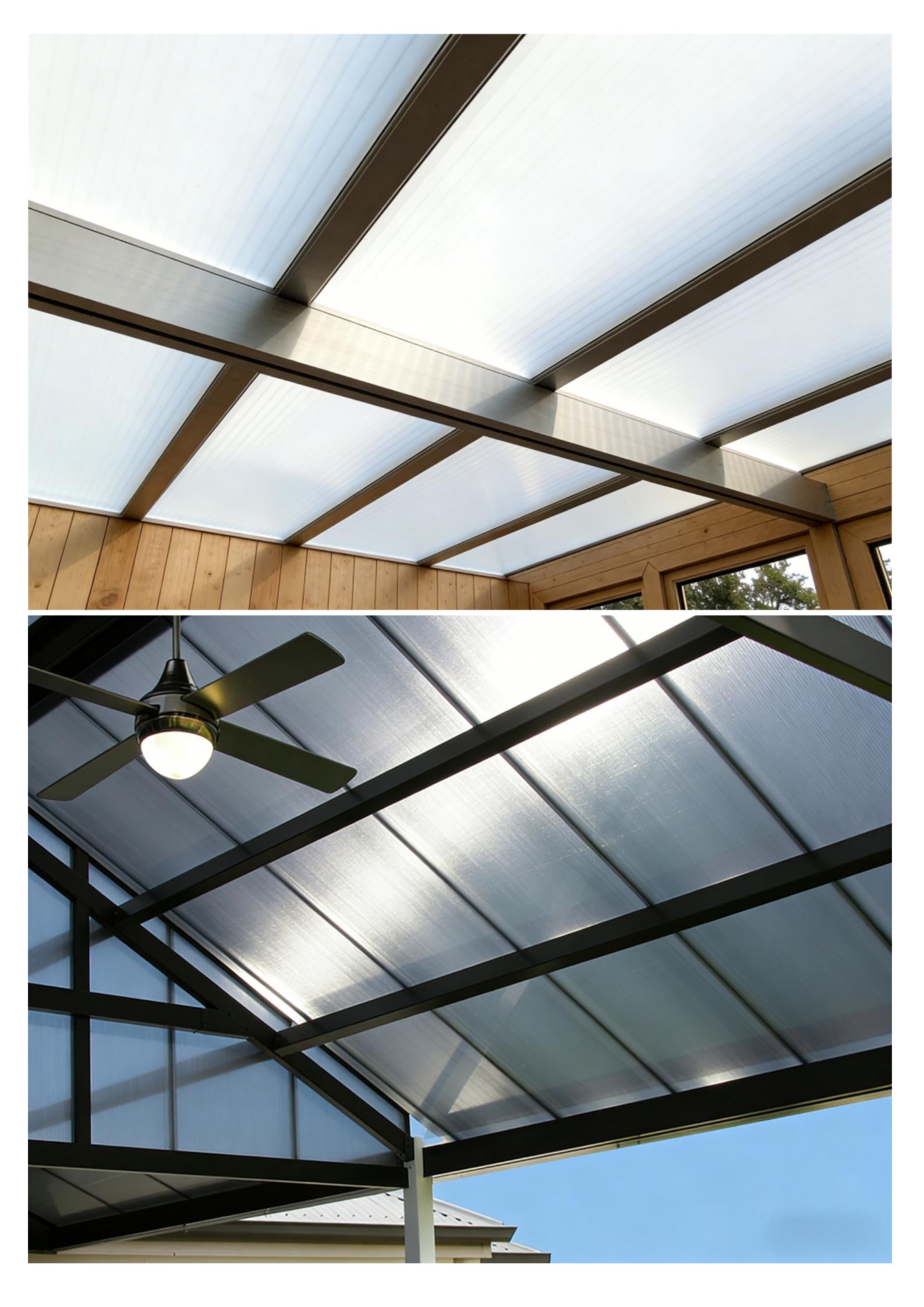

• Parking carports, residential rain shelters

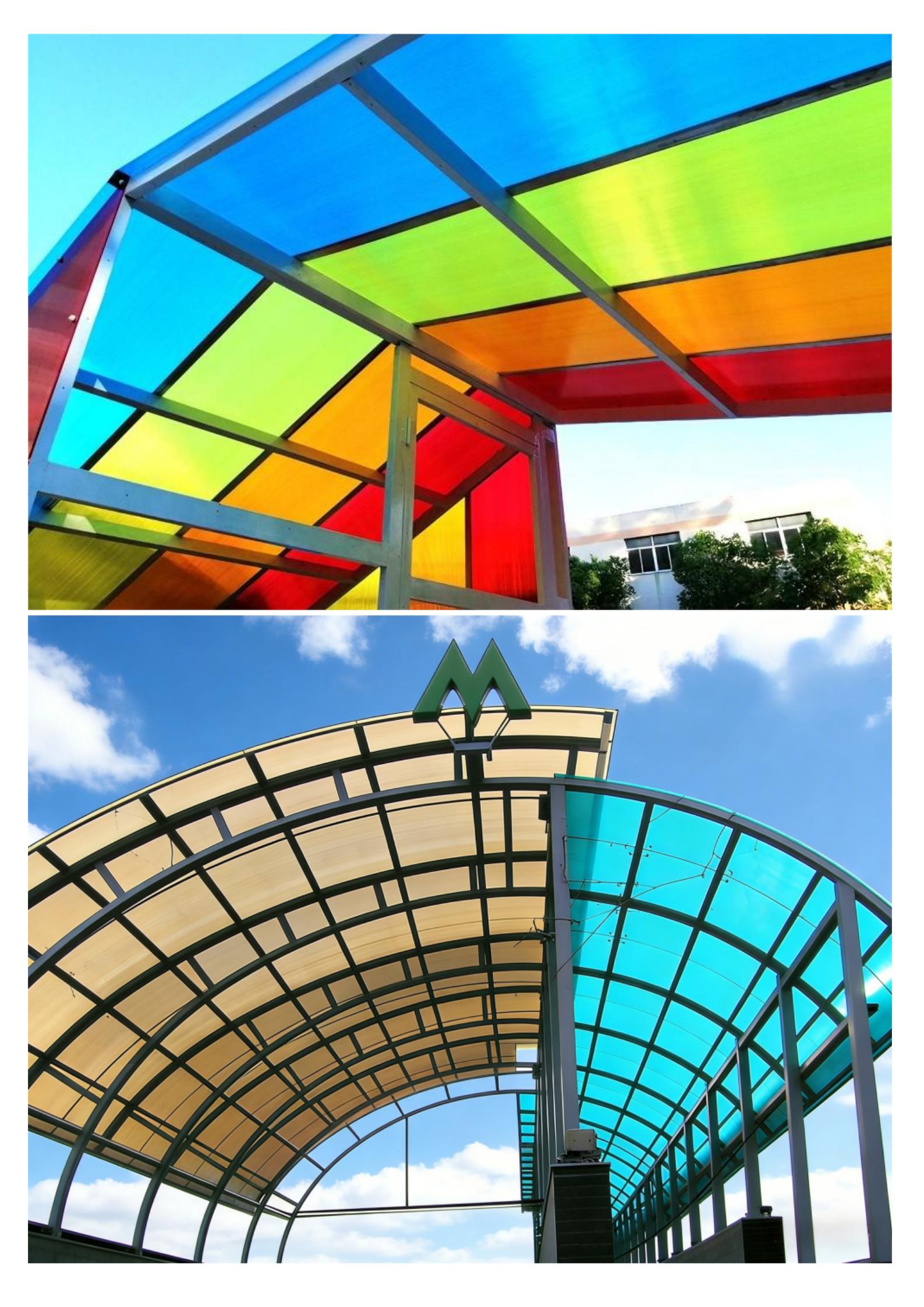

• Public transit station curved roofing
• Indoor daylighting partitions

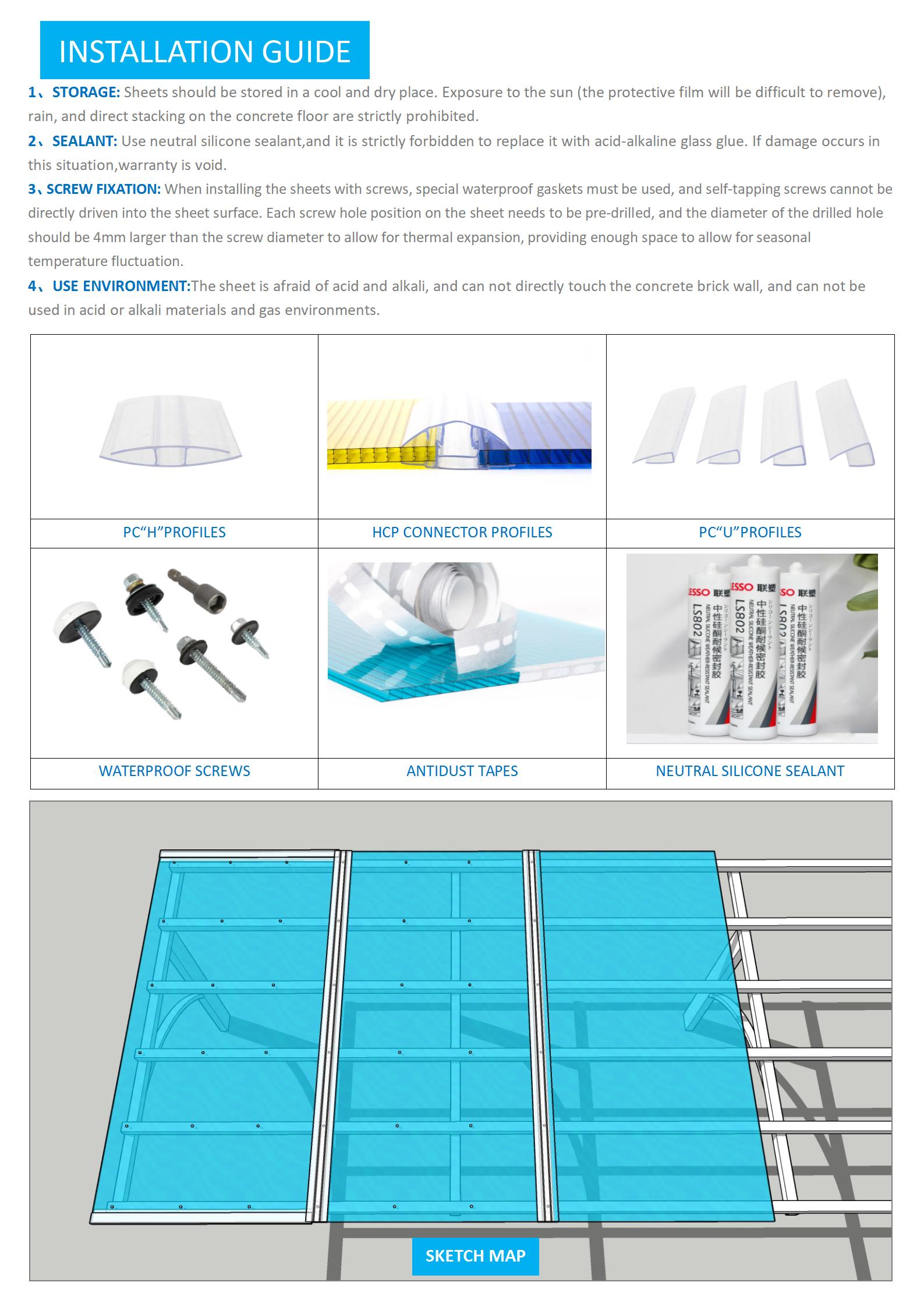

Official Installation Guide

1. Storage Requirements

Store in cool & dry environment. Strictly avoid direct sunlight, rain, and direct stacking on concrete ground. Sun exposure will make protective film unpeelable.

2. Sealant Regulation

Only neutral silicone sealant is allowed. Acidic or alkaline glass glue is forbidden. Warranty will be void if damaged by improper glue.

3. Screw Fixing Rules

Special waterproof gaskets must be matched with screws. Pre-drill holes 4mm larger than screw diameter to reserve space for thermal expansion & contraction.

4. Service Environment Limit

The sheet is sensitive to acid & alkali. Do not contact concrete brick walls directly, and cannot be used in corrosive acid/alkali gas environments.

Complete Supporting Accessories

Accessory Name	Function
PC H Profile Connector	Splice two sheets together horizontally
PC U Edge Profile	Seal sheet edge to prevent dust & water
Waterproof Self-tapping Screws with Gaskets	Fix sheets on steel/wood frames, waterproof sealing
Anti-dust Perforated Tape	Block hollow rib ends to stop dust & bugs
Neutral Silicone Weather Resistant Sealant	Waterproof joint sealing for installation
