Data-Based Product Summary of Polycarbonate (PC) Solid Sheet

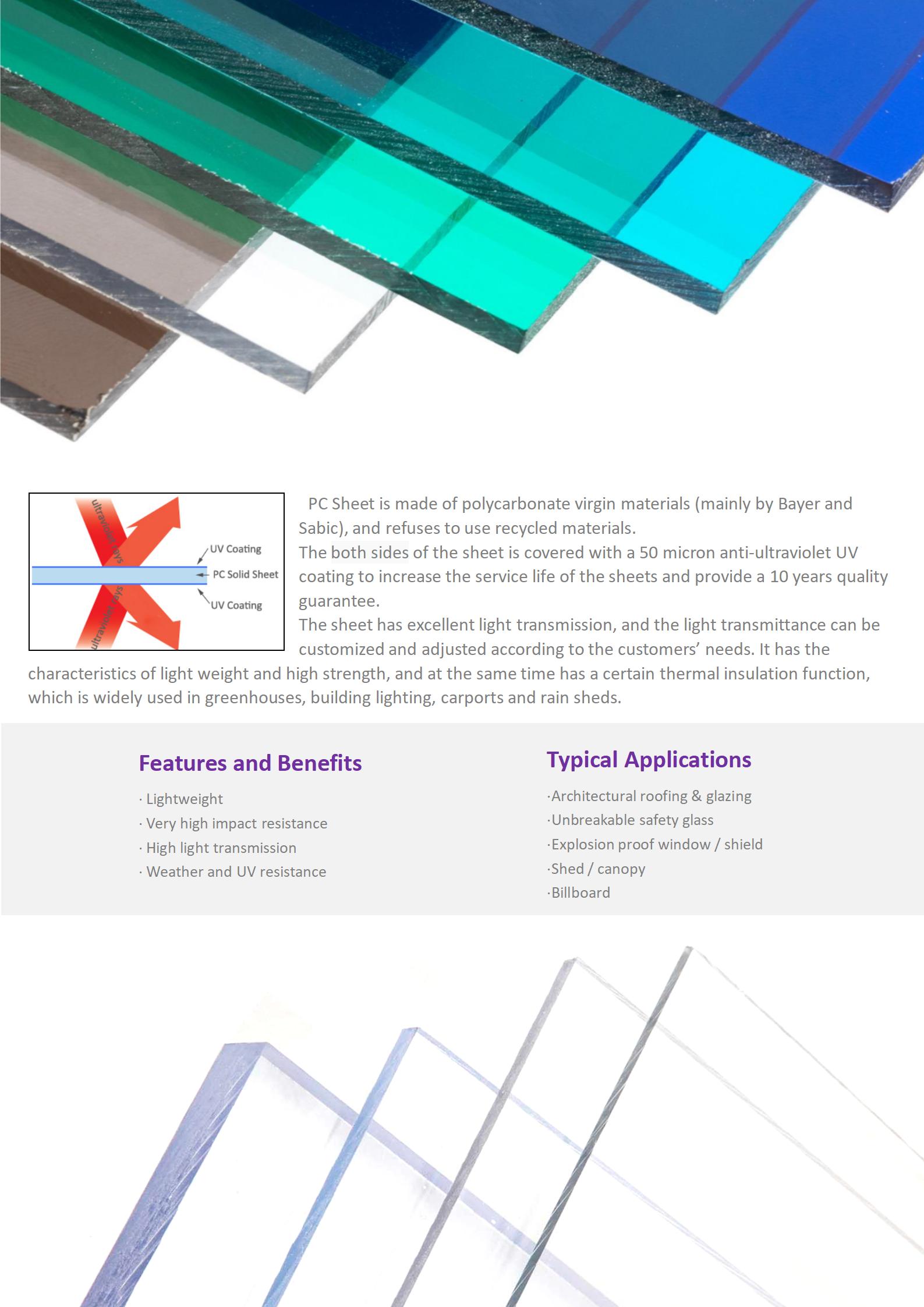

1. Raw Material & Core UV Protection Parameters
- 1. Raw Material: Virgin polycarbonate pellets from Bayer & Sabic; recycled materials are strictly prohibited
- 2. UV Coating: Double-sided 50-micron anti-UV coating on both sheet surfaces
- 3. Quality Warranty: 10-year weather resistance guarantee
- 4. UV Blocking Performance: Ultraviolet transmittance ≤ 0.001%
2. Standard Size Specifications
Width (Customizable Available)
1220mm, 1560mm, 1820mm, 2100mm
Length
Fully customized on demand
Thickness Range
2mm / 3mm / 4mm / 5mm / 6mm / 7mm / 8mm / 9mm / 10mm

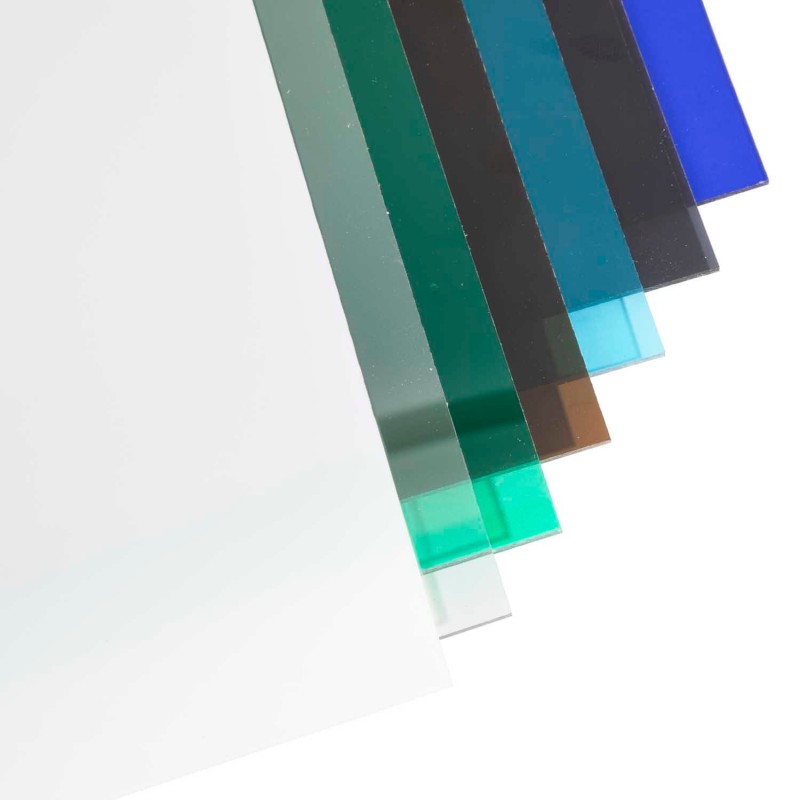

Color Options
Clear, Bronze, Blue, Green, Opal, Grey and other custom colors
Roll & Sheet Standard Packing
- • Roll: 1.22m×30M / 1.56m×30M / 1.82m×30M / 2.1m×30M per roll
- • Flat Sheet: 1.22m×2.44M per piece
3. Core Physical Performance Data (Compliant with JG347T-2012 Standard)
Mechanical Properties
| Performance Index | Standard Minimum Value | Test Standard |
| Tensile Yield Strength | ≥60 MPa | GB/T 1040.1-2006, GB/T 1040.2-2006 |
| Tensile Modulus of Elasticity | ≥2200 MPa | GB/T 1040.1-2006, GB/T 1040.2-2006 |
| Bending Strength | ≥60 MPa | GB/T 9341-2008 |
| Flexural Modulus of Elasticity | ≥2200 MPa | GB/T 9341-2008 |
| Shore Hardness | ≥80 HA | GB/T 2411-2008 |
| Charpy Notched Impact Strength | ≥6 KJ/㎡ | – |
| Tensile Impact Strength | ≥150 KJ/㎡ | – |
| Drop Impact Max Penetration Force | ≥600 N | – |
| Drop Impact Max Penetration Energy | ≥5 J | – |
Thermal Properties
| Performance Index | Standard Limit | Test Standard |
| Load Deformation Temperature | ≥125 ℃ | GB/T 1634.2-2004 |
| Vicat Softening Temperature | ≥145 ℃ | – |
| Thermal Deformation Temperature | ≥130 ℃ | – |
| Linear Thermal Expansion Coefficient (-30℃~+30℃) | ≤6.5×10⁻⁵ /℃ | GB/T 1036-2008 |
| Thermal Expansion Coefficient | ≤7.5×10⁻⁵ /℃ | – |
| Heating Dimensional Change Rate (1.5mm≤d≤5mm) | ≤10% | – |
| Heating Dimensional Change Rate (d≥5mm) | ≤5% | – |
Light Transmission & Optical Performance
| Sheet Thickness | Minimum Light Transmittance | Haze Limit |
| 1.5mm | ≥85% | ≤5.0% |
| 3mm | ≥83% | ≤5.0% |
| 4mm | ≥82% | ≤5.0% |
| 6mm | ≥80% | ≤5.0% |
| 12mm | ≥75% | ≤5.0% |
Weather Resistance (2000h Accelerated Aging Test)
- 1. Chromatic Aberration: ≤5.0
- 2. Yellow Index Change: ≤3.0
- 3. Drop Weight Impact Performance Retention Rate: ≥60%
Combustion Grade
Combustion Performance Class B
4. Key Product Advantages (Data Supported)
- 1. Ultra-high impact resistance: Unbreakable safety glass alternative, explosion-proof
- 2. Lightweight: Low self-weight, easy transportation & installation
- 3. High light transmittance: Adjustable light transmission as customized
- 4. Full weather & anti-UV performance: 10-year service life supported by double-sided 50μm UV coating
5. Typical Application Scenarios
- • Architectural roof & daylight glazing
- • Unbreakable safety glass panels
- • Explosion-proof windows & protective shields
- • Carports, rain sheds & pedestrian canopies
- • Advertising billboards
- • Noise barrier walls
6. Standard Installation Technical Data & Rules
- 1. Storage Requirement: Cool & dry environment; avoid direct sunlight, rain and direct contact with concrete ground
- 2. Sealant Requirement: Only neutral silicone sealant; acid & alkaline glass glue invalidates warranty
- 3. Screw Fixing Standard
- • Pre-drill holes 4mm larger than screw diameter to reserve thermal expansion space
- • Hole edge distance ≥30mm
- • Special waterproof gaskets mandatory for all screws
- • Curved surfaces cannot be fixed with surface screws
- 4. Service Environment Restriction: Cannot contact acid/alkali concrete, bricks, or corrosive acid/alkali gas directly
- 5. Liability Clause: Warranty void if construction fails to follow official installation guidelines
7. Production & Factory Support
- • Fully automated intelligent production lines
- • Customizable size, thickness, color and light transmittance
- • Contact Email: polycarbonatesheet@qq.com
