Item	Specification
Width	1220mm, 1560mm, 1820mm, 2100mm or custom
Length	Custom
Thickness	1.5mm, 2mm, 3mm, 4mm, 5mm, 6mm
Roll Size	1.22m × 30m/roll, 1.56m × 30m/roll, 1.82m × 30m/roll, 2.1m × 30m/roll
Sheet Size	1.22m × 2.44m/sheet, 2m × 3m/sheet

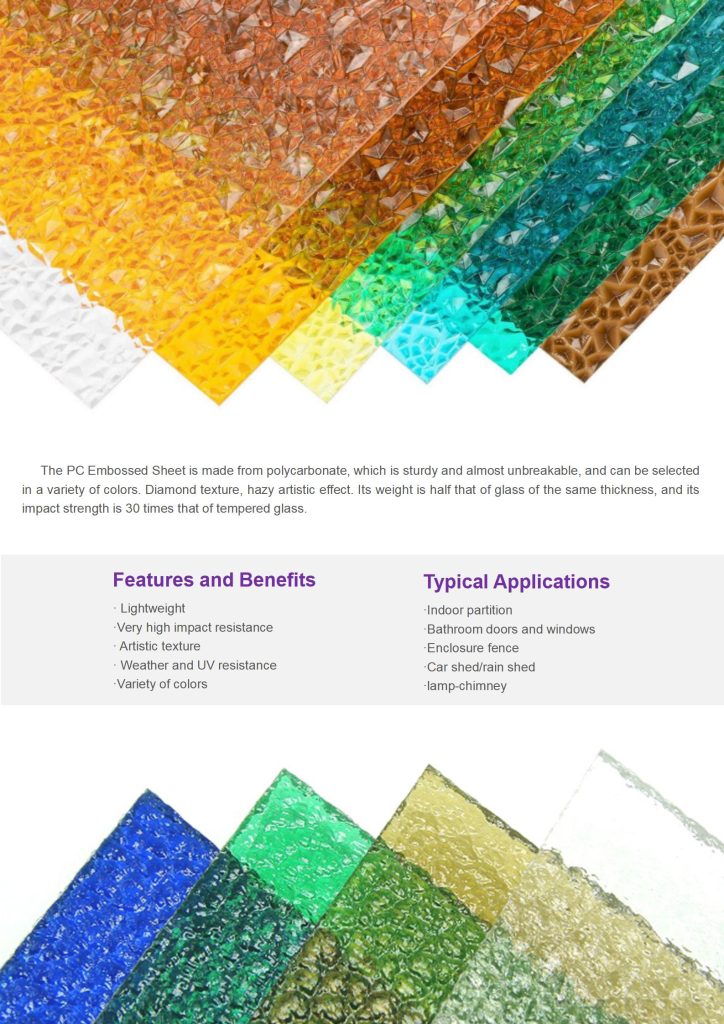

PC Embossed Polycarbonate Sheet Product Summary (Pure Text Data Version)

1. Basic Material & Texture

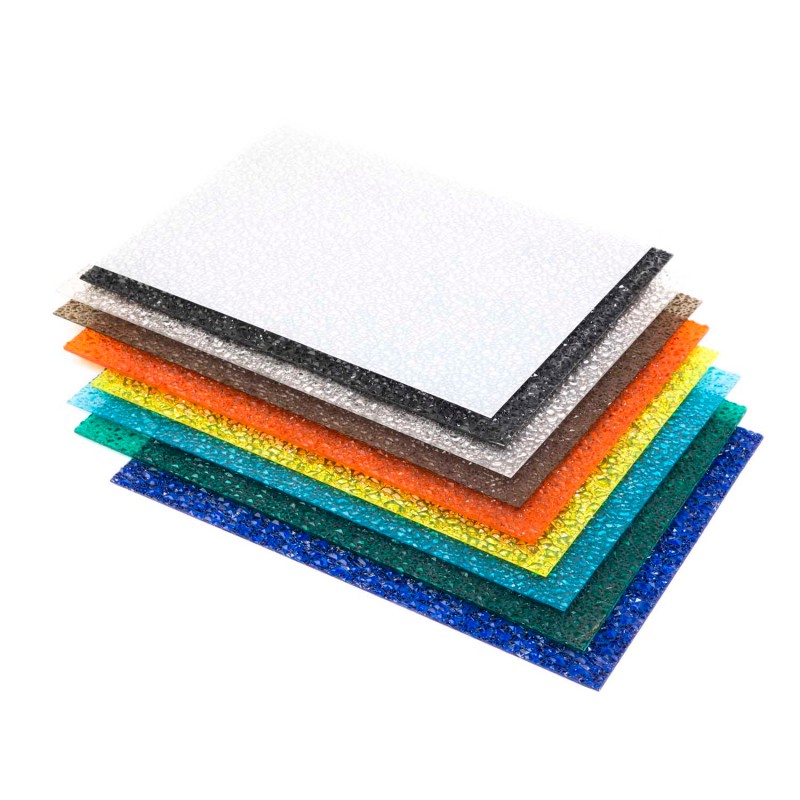

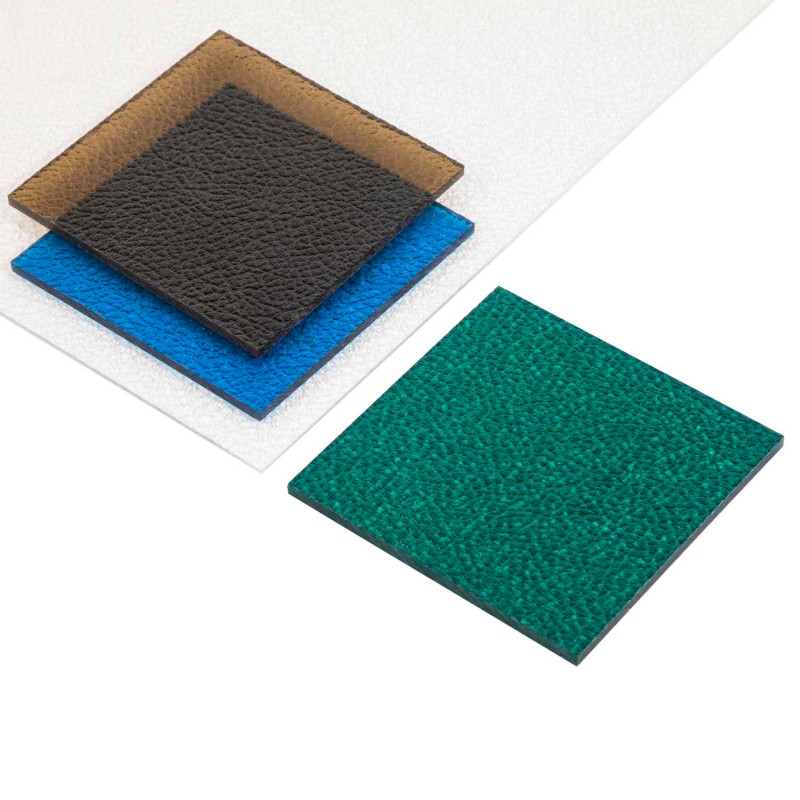

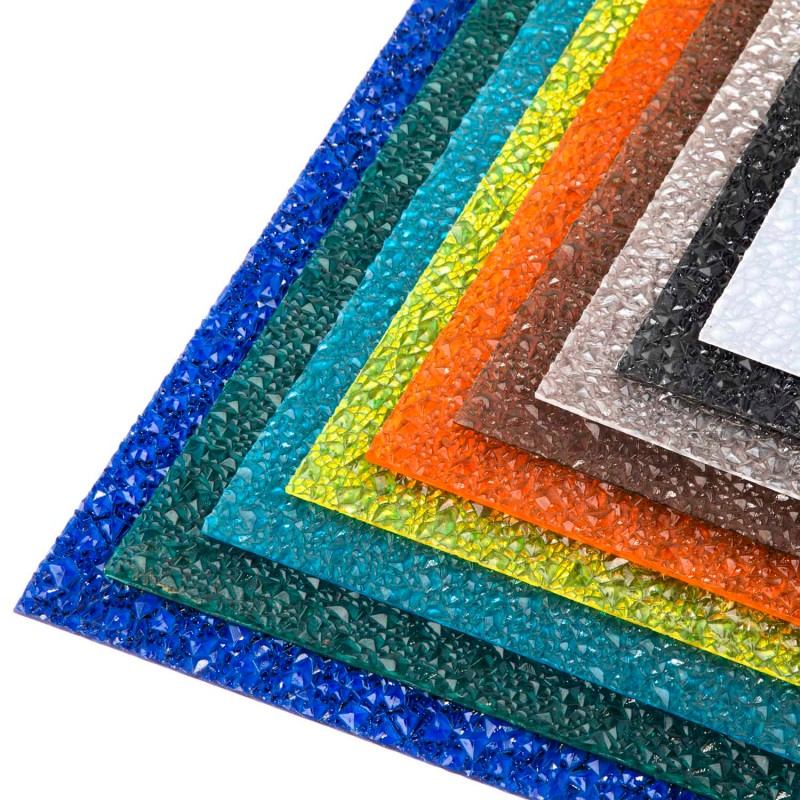

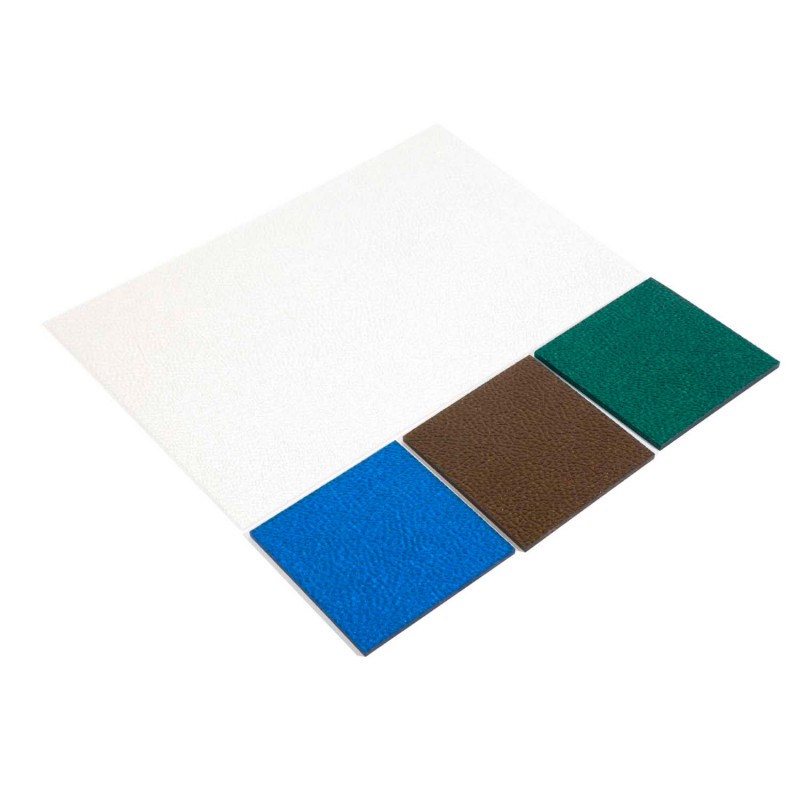

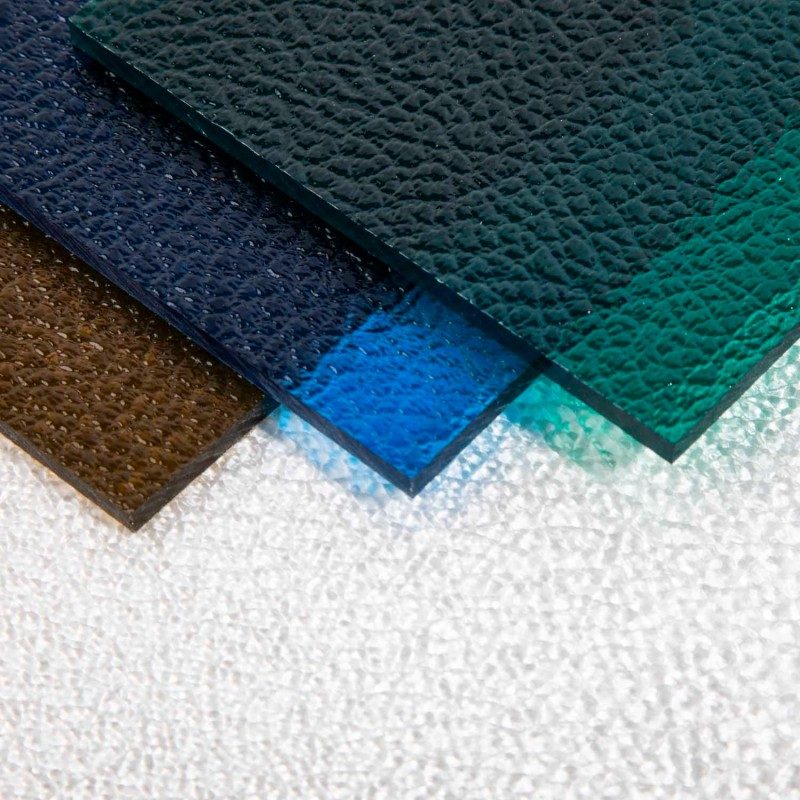

• Raw material: Polycarbonate (PC) solid sheet, diamond embossed texture, matte hazy decorative effect
• Core advantage vs glass: Same thickness weight = 1/2 of glass; impact strength = 30× tempered glass, sturdy & nearly unbreakable

2. Core Features & Advantages

1. Lightweight
2. Ultra-high impact resistance
3. Artistic diamond embossed texture
4. Weather & UV aging resistance
5. Rich customizable color options
6. Easy cutting, processing & installation

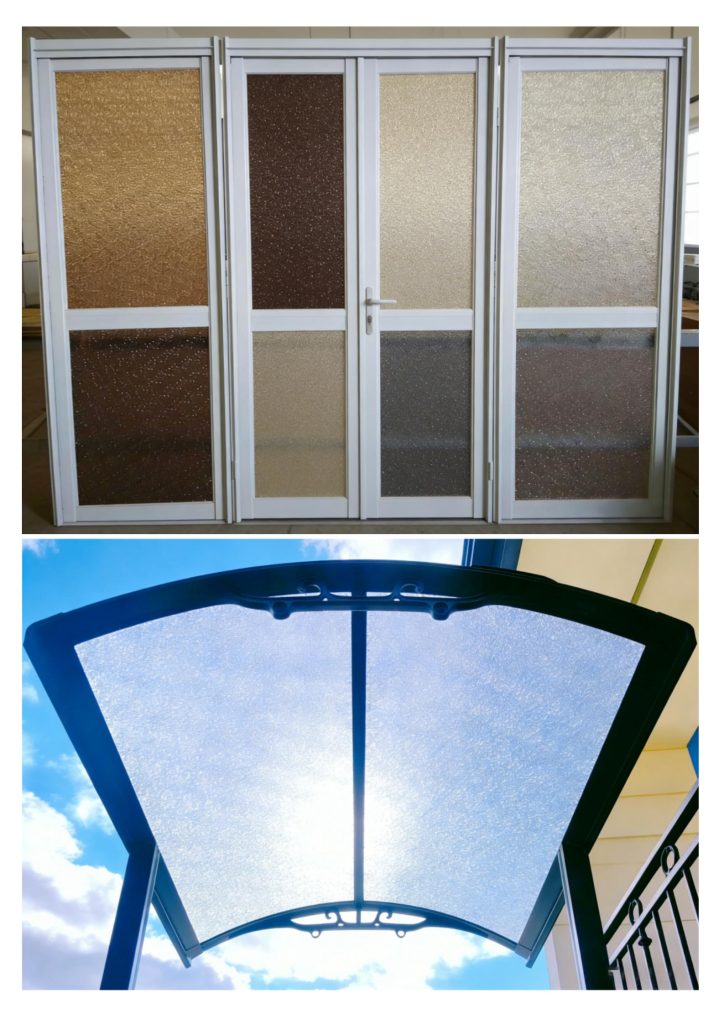

3. Typical Application Scenarios

• Indoor space partitions
• Bathroom doors & windows

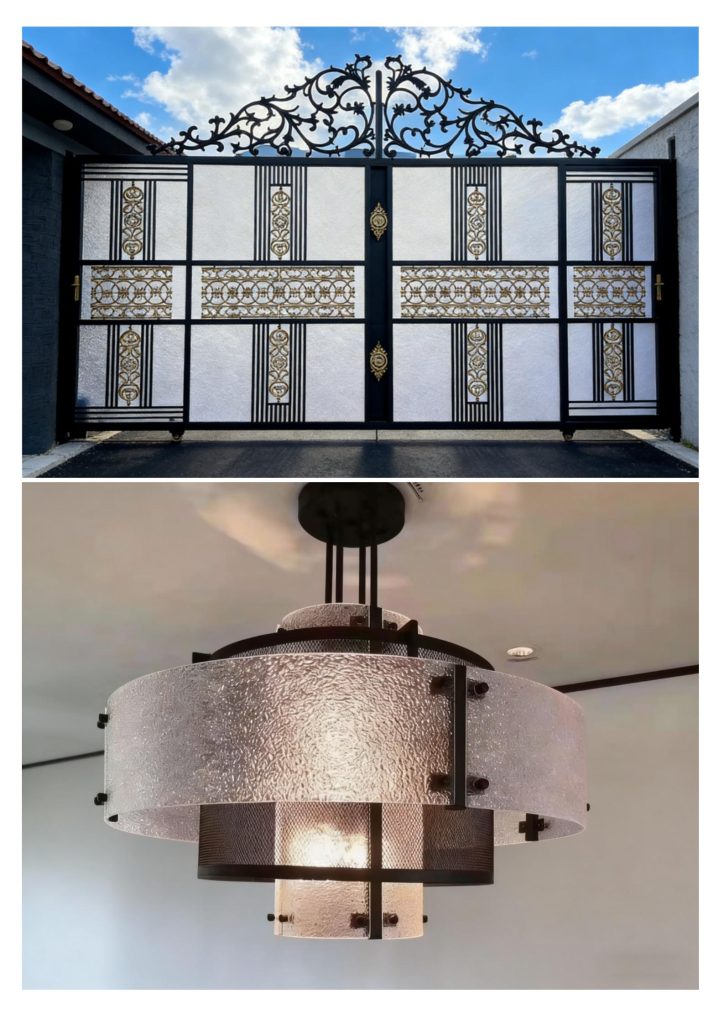

• Boundary enclosure fences & gates

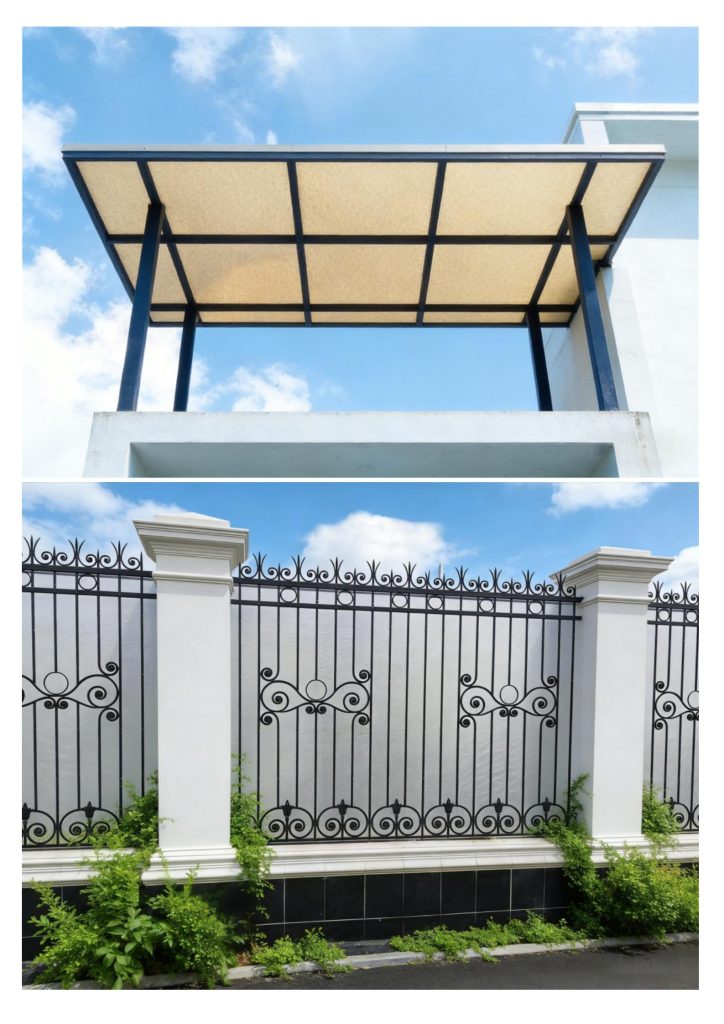

• Car sheds / outdoor rain awnings
• Lampshade & lighting fixture panels

4. Available Specifications

Size Series

1. Width: 1220mm / 1560mm / 1820mm / 2100mm (custom width supported)
2. Length: Fully customizable
3. Thickness range: 1.5mm ~ 6mm (optional single thickness: 1.5/2/3/4/5/6mm)

Supply Form

• Roll goods: 1.22×30M / 1.56×30M / 1.82×30M / 2.1×30M per roll
• Flat sheet goods: 1.22×2.44M / 2×3M per sheet

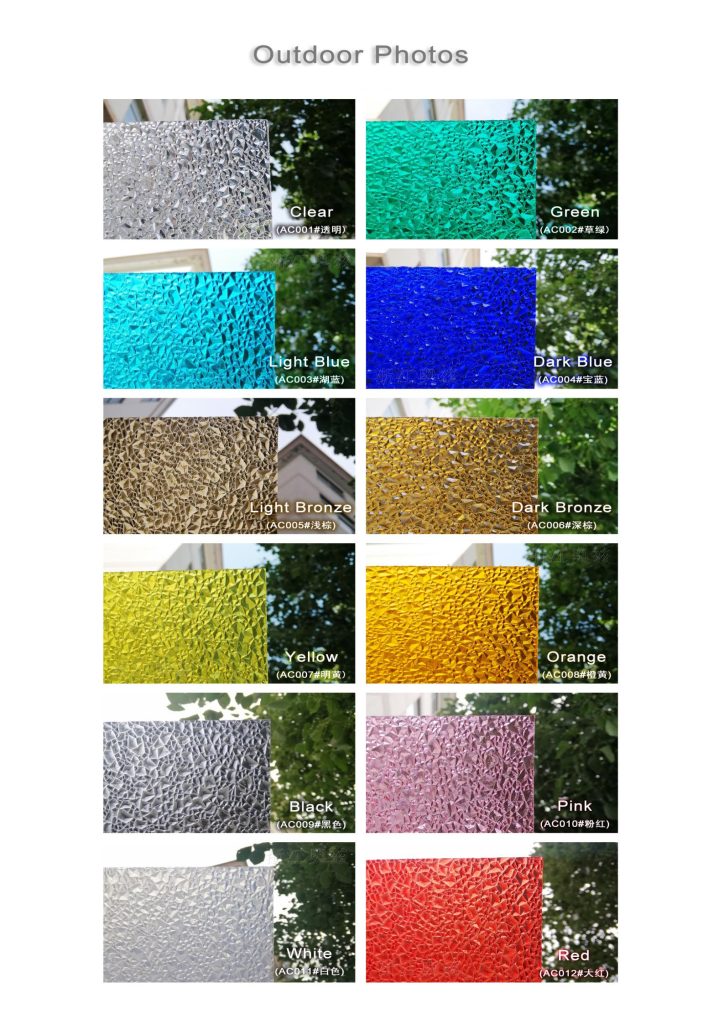

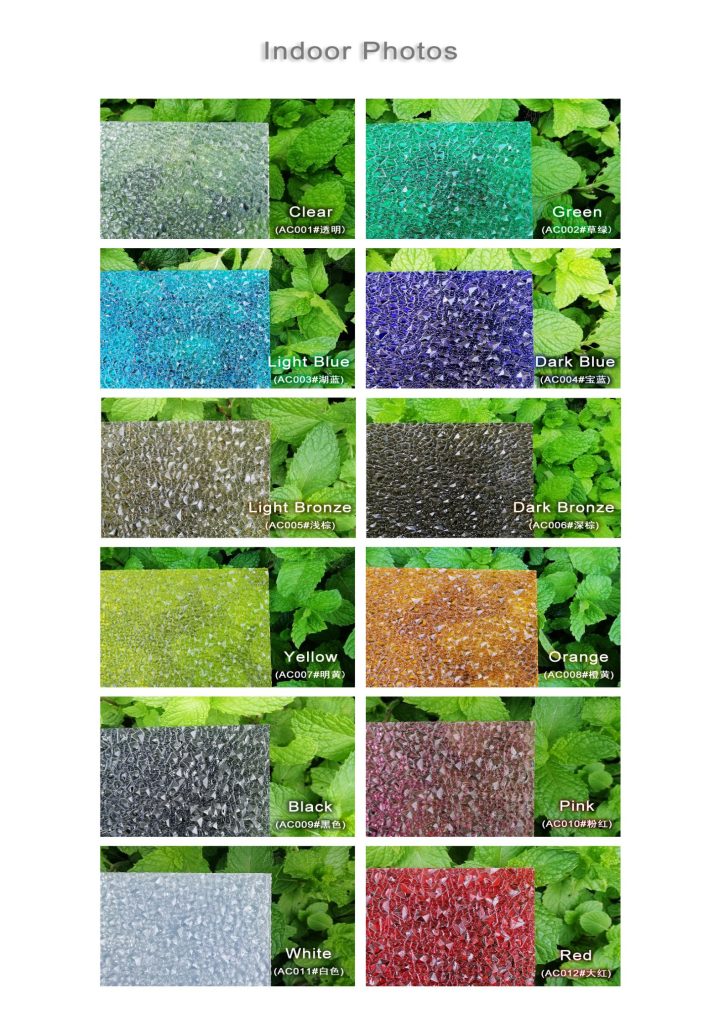

Standard Color Palette

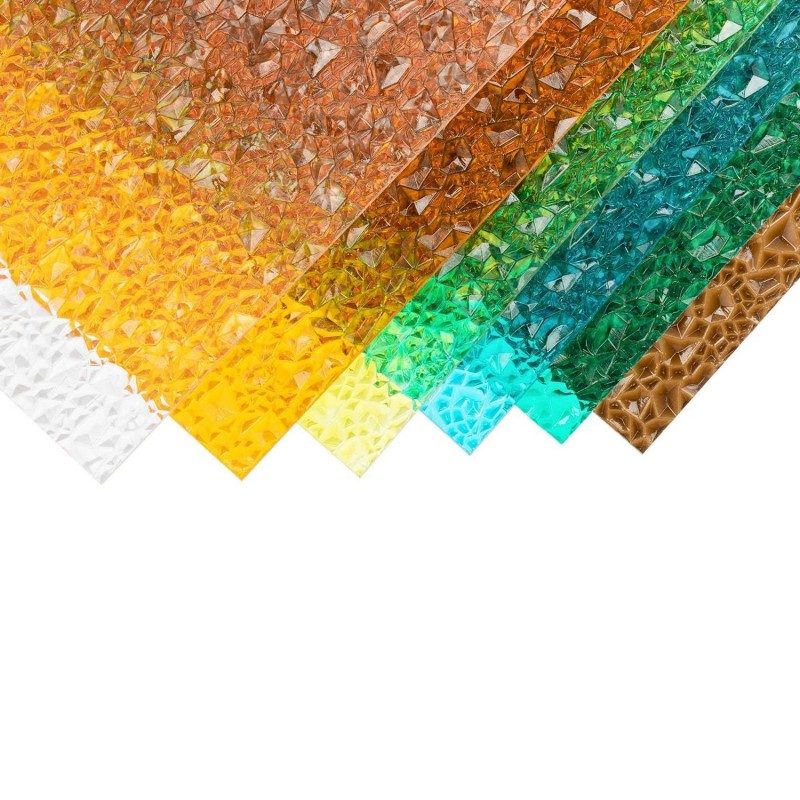

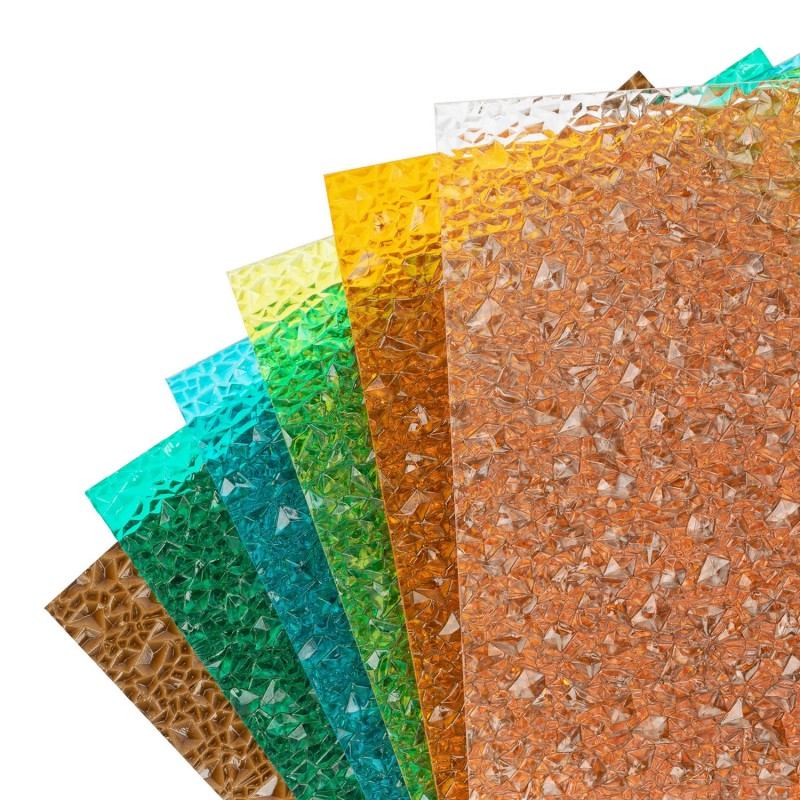

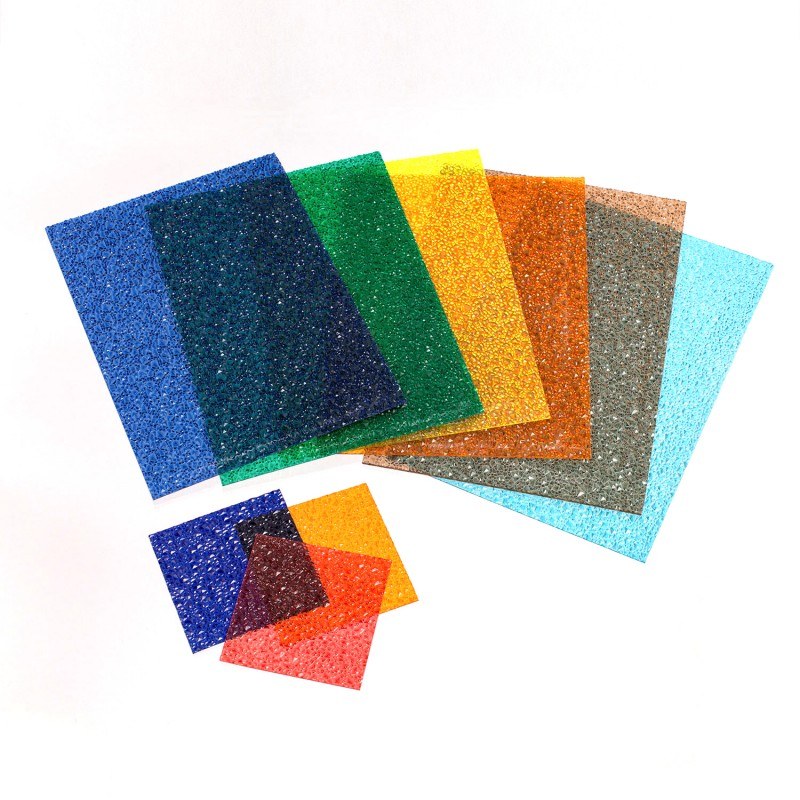

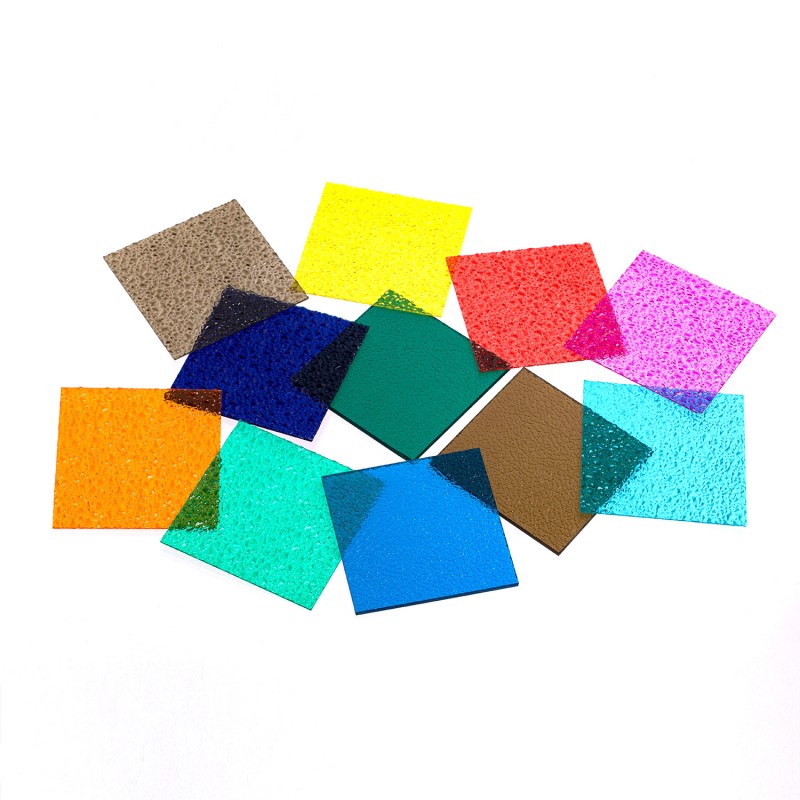

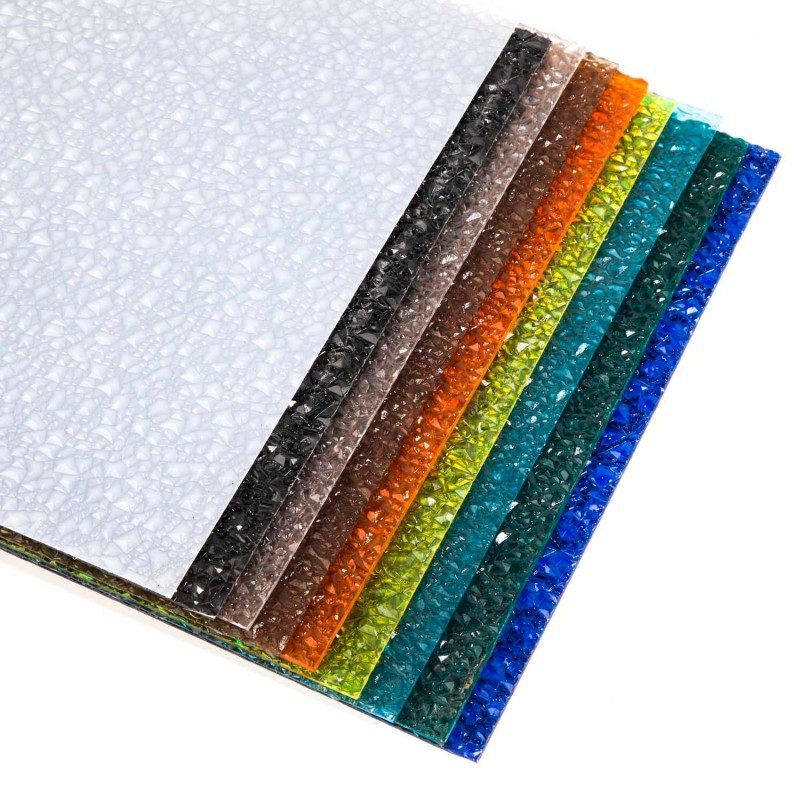

Clear, Light Bronze, Dark Bronze, Light Blue, Dark Blue, Green, Yellow, Orange, Black, White, Pink, Red, Opal, Grey

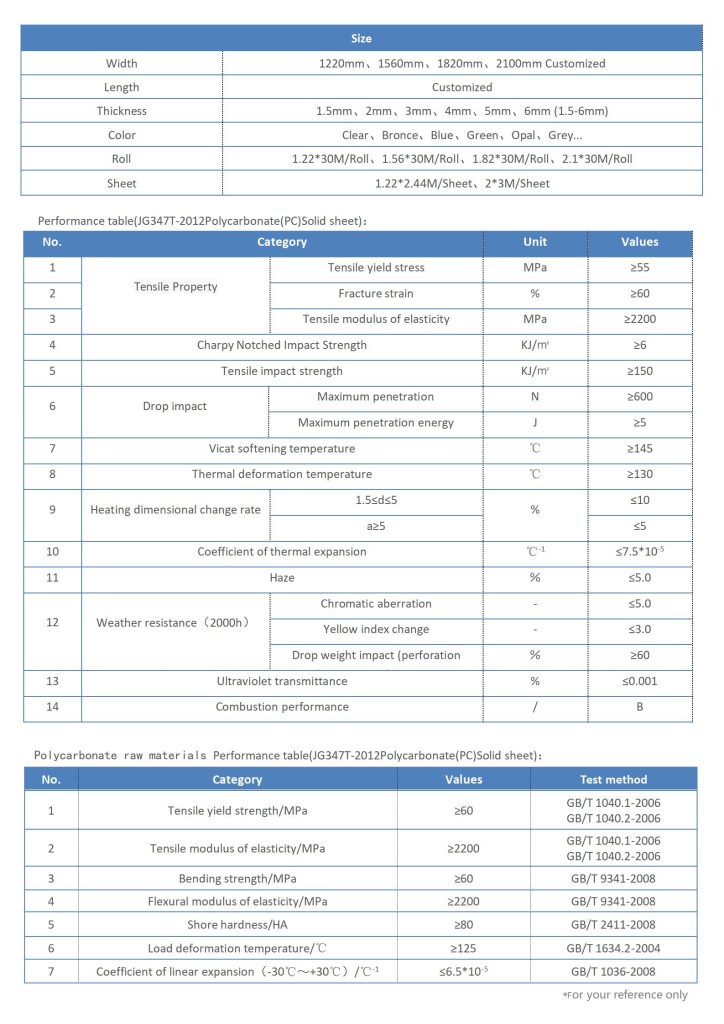

5. Main Physical Performance Standard (JG347T-2012 PC Solid Sheet Standard)

Mechanical Properties

1. Tensile yield strength: ≥60 MPa (test GB/T 1040.1-2006 / GB/T 1040.2-2006)
2. Tensile elastic modulus: ≥2200 MPa
3. Bending strength: ≥60 MPa (test GB/T 9341-2008)
4. Flexural elastic modulus: ≥2200 MPa
5. Shore hardness: ≥80 HA (test GB/T 2411-2008)
6. Fracture strain: ≥60 %
7. Charpy notched impact strength: ≥6 KJ/㎡
8. Tensile impact strength: ≥150 KJ/㎡
9. Drop penetration resistance: ≥600 N; penetration energy ≥5 J

Thermal Properties

1. Load deformation temperature: ≥125 ℃ (GB/T 1634.2-2004)
2. Vicat softening temperature: ≥145 ℃
3. Thermal deformation temperature: ≥130 ℃
4. Linear expansion coefficient (-30℃~+30℃): ≤6.5×10⁻⁵ /℃; max ≤7.5×10⁻⁵ /℃
5. Heating dimensional change rate: ≤10% (1.5–5mm thickness); ≤5% (≥5mm thickness)

Optical & Weather Resistance

1. Haze value: ≤5.0 %
2. UV transmittance: ≤0.001 %
3. 2000h accelerated weathering test:
- • Chromatic aberration ≤5.0
- • Yellow index change ≤3.0
- • Drop impact performance retention ≥60 %
4. Combustion grade: Class B

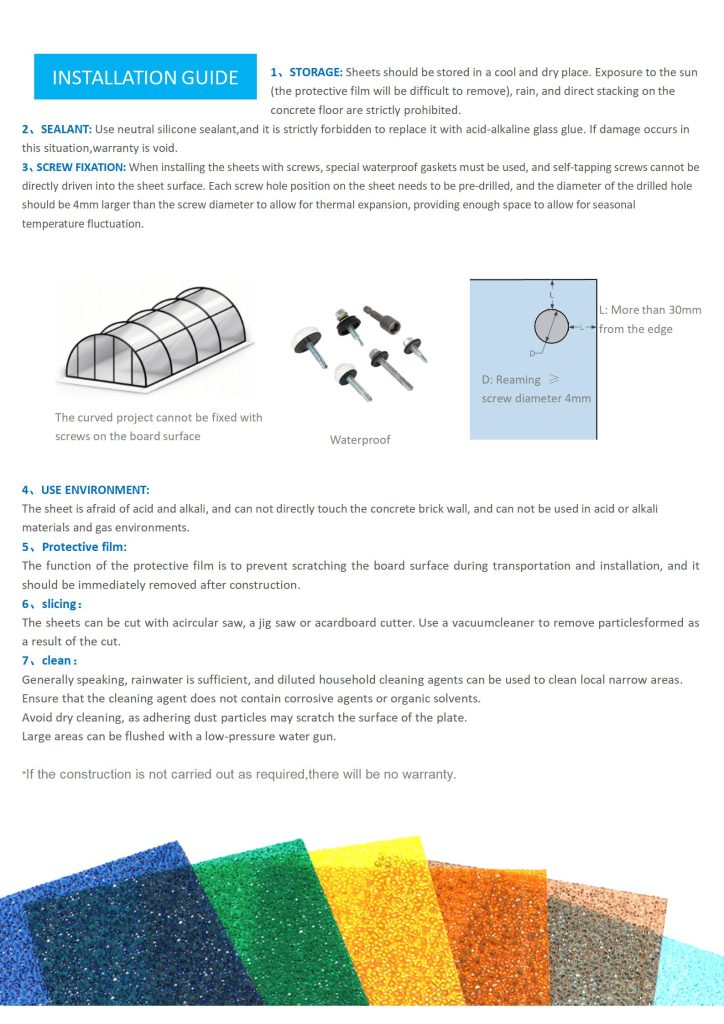

6. Standard Installation & Storage Guidelines

1. Storage Requirement

Store in cool, dry indoor area; strictly forbid long-term sunlight exposure, rain soaking, direct stacking on concrete ground (protective film will be hard to peel).

2. Sealant Rule

Only neutral silicone sealant allowed; acid/alkaline glass glue prohibited. Damage from improper glue voids product warranty.

3. Screw Fixing Specification

• Special waterproof gaskets mandatory for all screw installation
• Pre-drill holes before screwing; hole diameter ≥ screw diameter +4mm (reserve thermal expansion gap)
• Hole edge distance ≥30mm
• Self-tapping screws cannot be directly driven into sheet surface
• Curved molding sheets cannot be fixed with surface screws

4. Service Environment Restriction

PC sheet reacts with acid & alkali; cannot directly contact concrete/brick walls, cannot be used in acidic/alkaline material & gas environments.

5. Protective Film

Remove film immediately after construction; film only prevents scratches during transport & installation.

6. Cutting Method

Cuttable via circular saw, jigsaw, utility knife; clean cutting debris with vacuum cleaner after cutting.

7. Cleaning Method

• Daily maintenance: Natural rainwater flushing
• Local stains: Diluted neutral household detergent (no corrosive agents/organic solvents)
• Avoid dry wiping (dust will scratch embossed surface)
• Large area cleaning: Low-pressure water gun flushing
