PC-Profile Product Introduction (Editable Text Version)

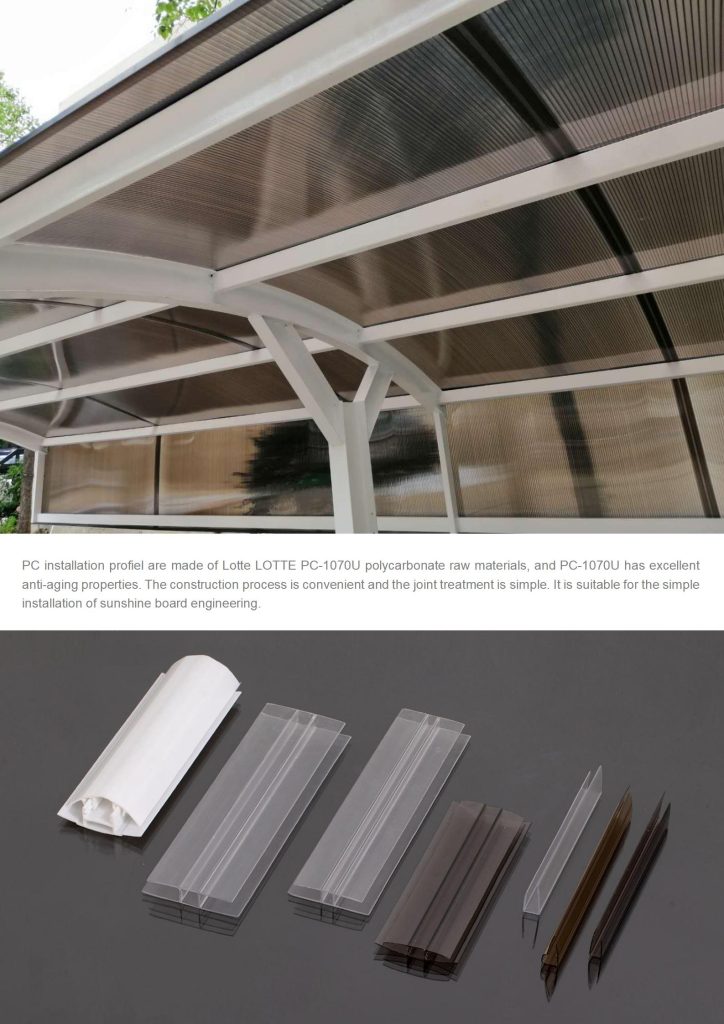

1. Product Overview
PC installation profiel are made of Lotte LOTTE PC-1070U polycarbonate raw materials, and PC-1070U has excellent anti-aging properties. The construction process is convenient and the joint treatment is simple. It is suitable for the simple installation of sunshine board engineering.
2. Product Size Specification Tables

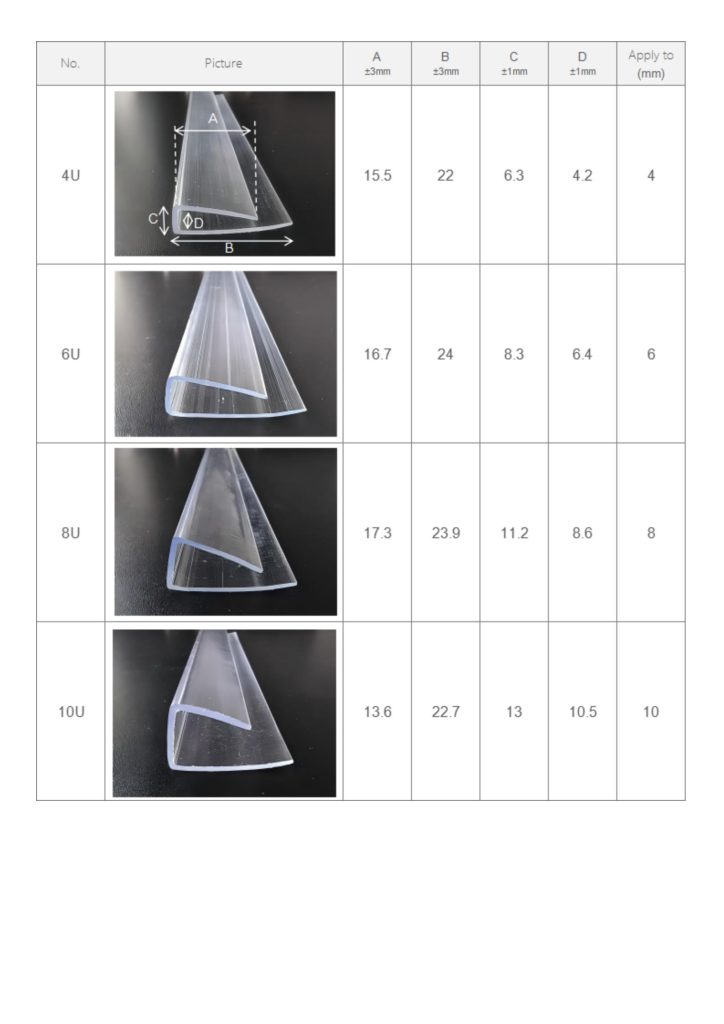

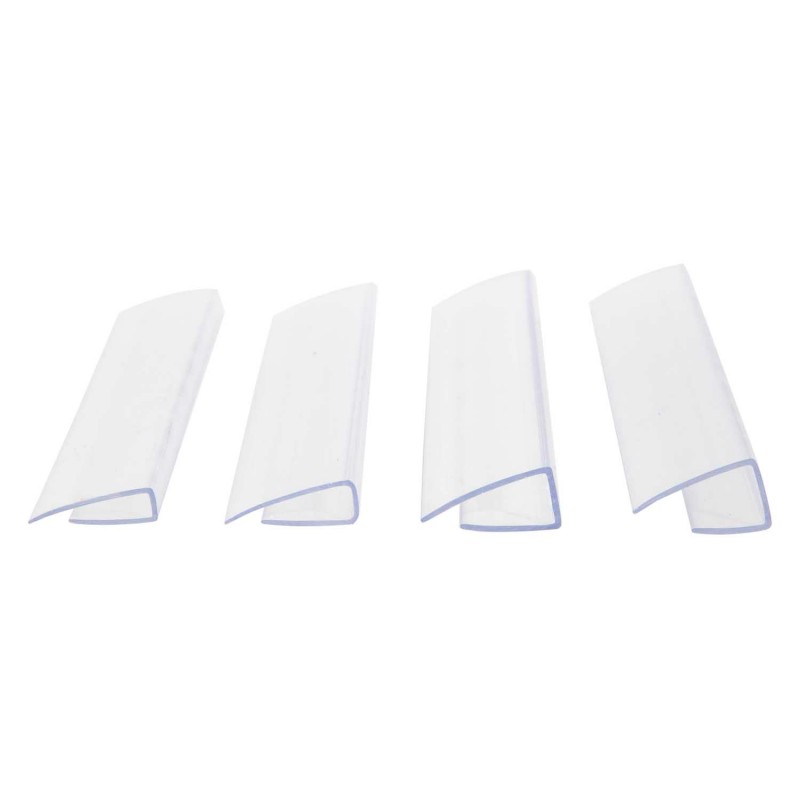

Table 1: U Series Standard Sizes (4U / 6U / 8U / 10U)
| Model No. | A (±3mm) | B (±3mm) | C (±1mm) | D (±1mm) | Apply to PC sheet (mm) |
| 4U | 15.5 | 22 | 6.3 | 4.2 | 4 |
| 6U | 16.7 | 24 | 8.3 | 6.4 | 6 |
| 8U | 17.3 | 23.9 | 11.2 | 8.6 | 8 |
| 10U | 13.6 | 22.7 | 13 | 10.5 | 10 |

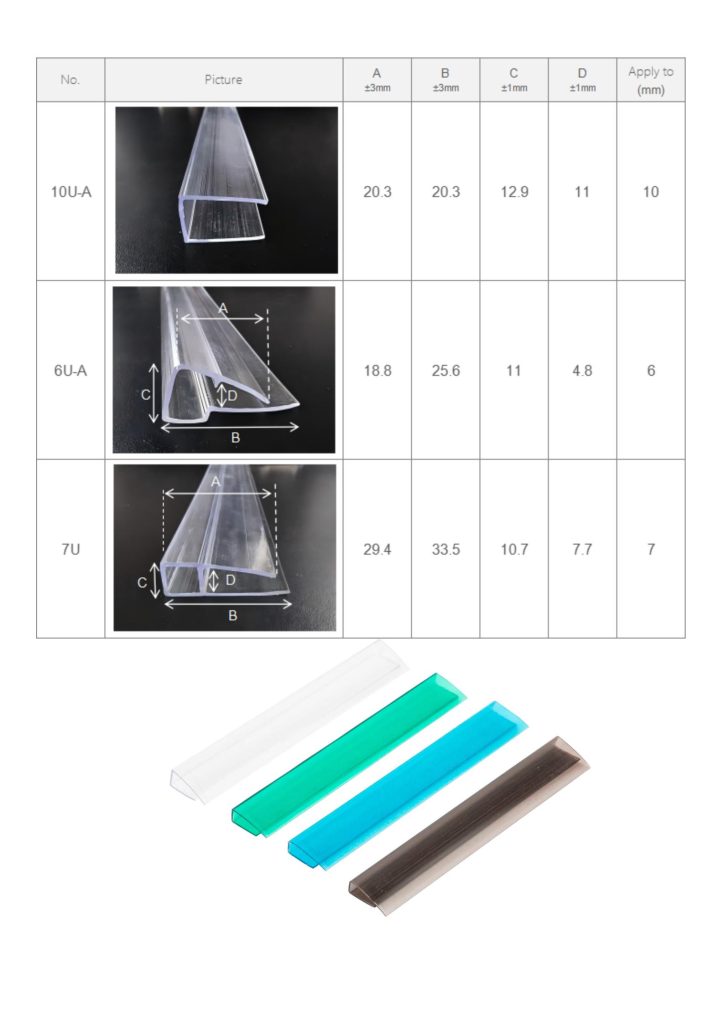

Table 2: U-A Series Special Sizes (10U-A / 6U-A / 7U)
| Model No. | A (±3mm) | B (±3mm) | C (±1mm) | D (±1mm) | Apply to PC sheet (mm) |
| 10U-A | 20.3 | 20.3 | 12.9 | 11 | 10 |
| 6U-A | 18.8 | 25.6 | 11 | 4.8 | 6 |
| 7U | 29.4 | 33.5 | 10.7 | 7.7 | 7 |

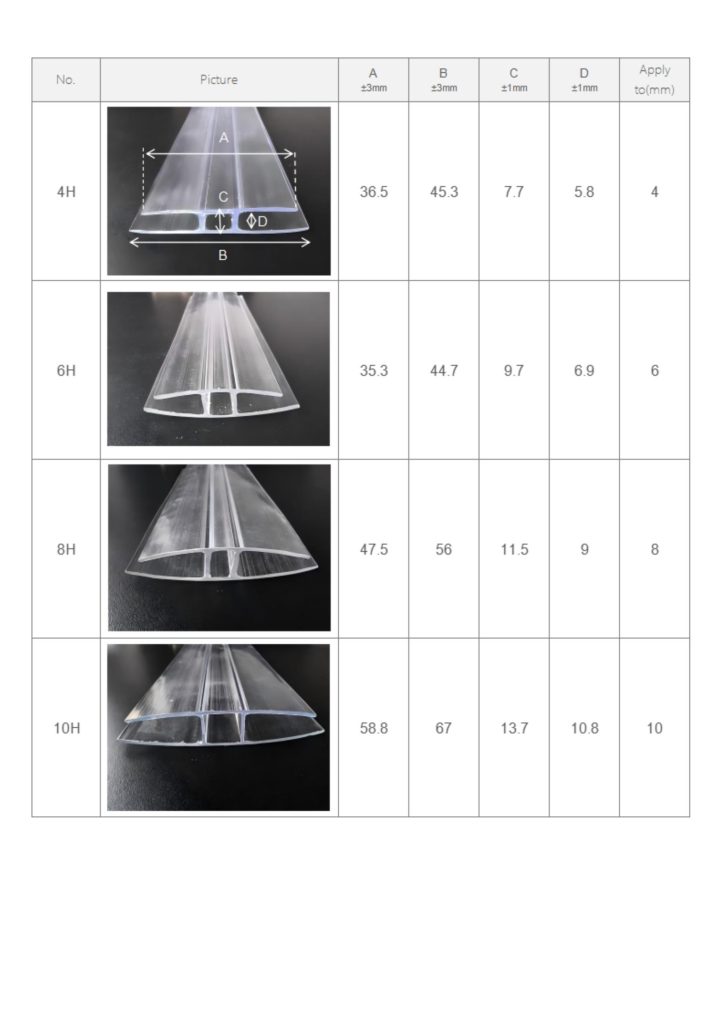

Table 3: H Series Standard Sizes (4H / 6H / 8H / 10H)
| Model No. | A (±3mm) | B (±3mm) | C (±1mm) | D (±1mm) | Apply to PC sheet (mm) |
| 4H | 36.5 | 45.3 | 7.7 | 5.8 | 4 |
| 6H | 35.3 | 44.7 | 9.7 | 6.9 | 6 |
| 8H | 47.5 | 56 | 11.5 | 9 | 8 |
| 10H | 58.8 | 67 | 13.7 | 10.8 | 10 |

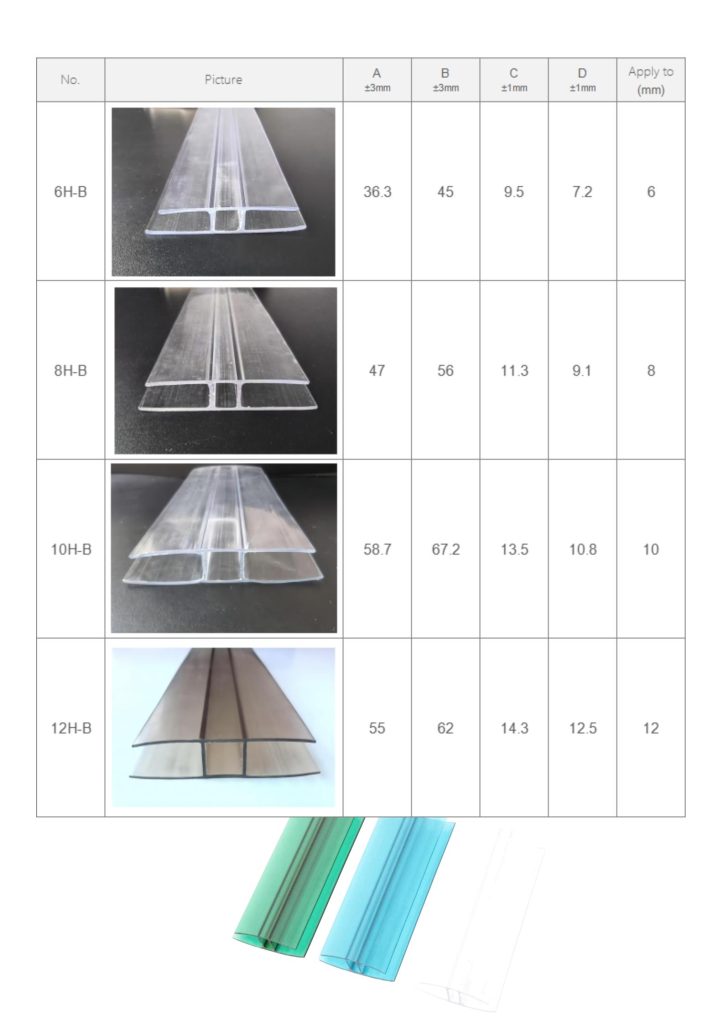

Table 4: H-B Series Sizes (6H-B / 8H-B / 10H-B / 12H-B)
| Model No. | A (±3mm) | B (±3mm) | C (±1mm) | D (±1mm) | Apply to PC sheet (mm) |
| 6H-B | 36.3 | 45 | 9.5 | 7.2 | 6 |
| 8H-B | 47 | 56 | 11.3 | 9.1 | 8 |
| 10H-B | 58.7 | 67.2 | 13.5 | 10.8 | 10 |
| 12H-B | 55 | 62 | 14.3 | 12.5 | 12 |

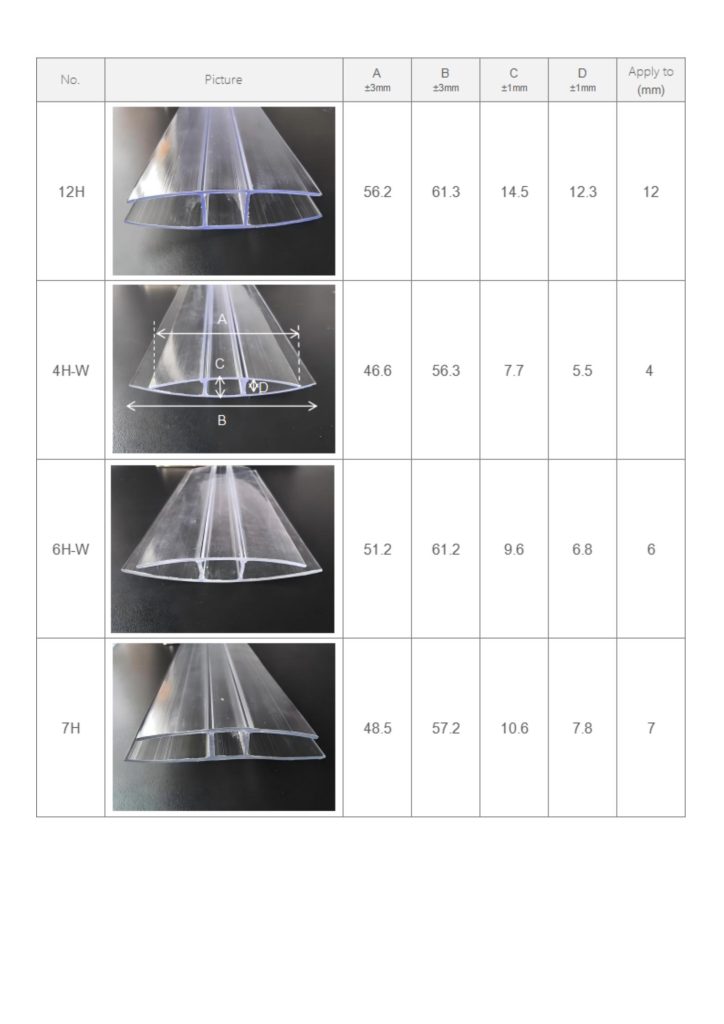

Table 5: H-W Series Sizes (12H / 4H-W / 6H-W / 7H)
| Model No. | A (±3mm) | B (±3mm) | C (±1mm) | D (±1mm) | Apply to PC sheet (mm) |
| 12H | 56.2 | 61.3 | 14.5 | 12.3 | 12 |
| 4H-W | 46.6 | 56.3 | 7.7 | 5.5 | 4 |
| 6H-W | 51.2 | 61.2 | 9.6 | 6.8 | 6 |
| 7H | 48.5 | 57.2 | 10.6 | 7.8 | 7 |
Table 6: AB & N Lock Special Profiles

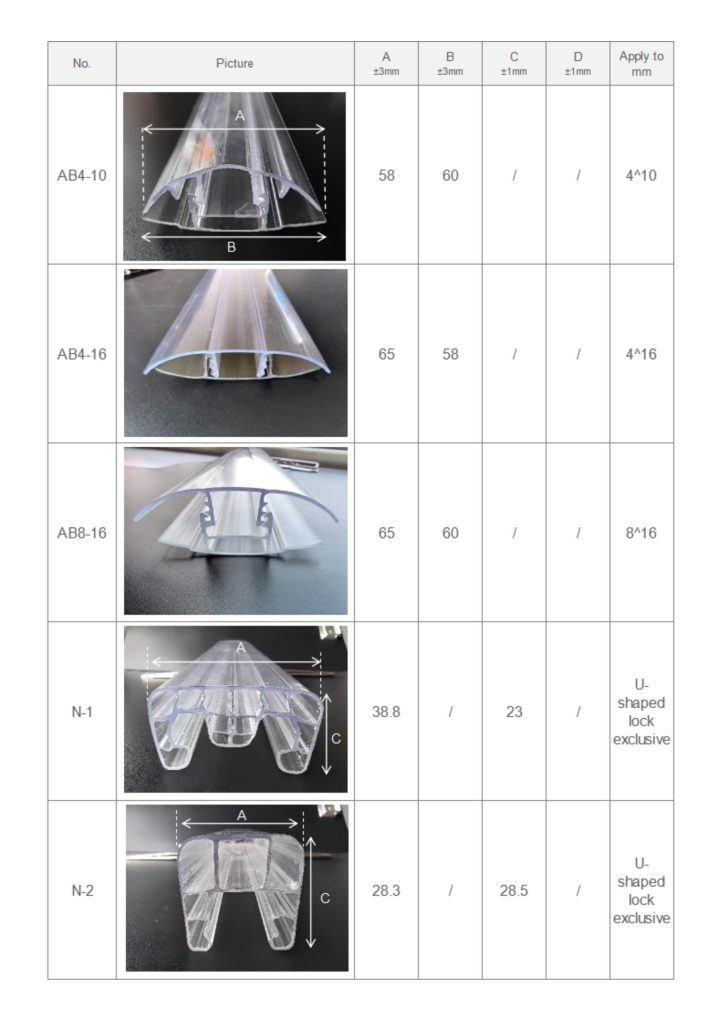

| Model No. | A (±3mm) | B (±3mm) | C (±1mm) | D (±1mm) | Application Scope |
| AB4-10 | 58 | 60 | / | / | 4~10mm PC sheet |
| AB4-16 | 65 | 58 | / | / | 4~16mm PC sheet |
| AB8-16 | 65 | 60 | / | / | 8~16mm PC sheet |
| N-1 | 38.8 | / | 23 | / | Exclusive U-shaped lock |
| N-2 | 28.3 | / | 28.5 | / | Exclusive U-shaped lock |

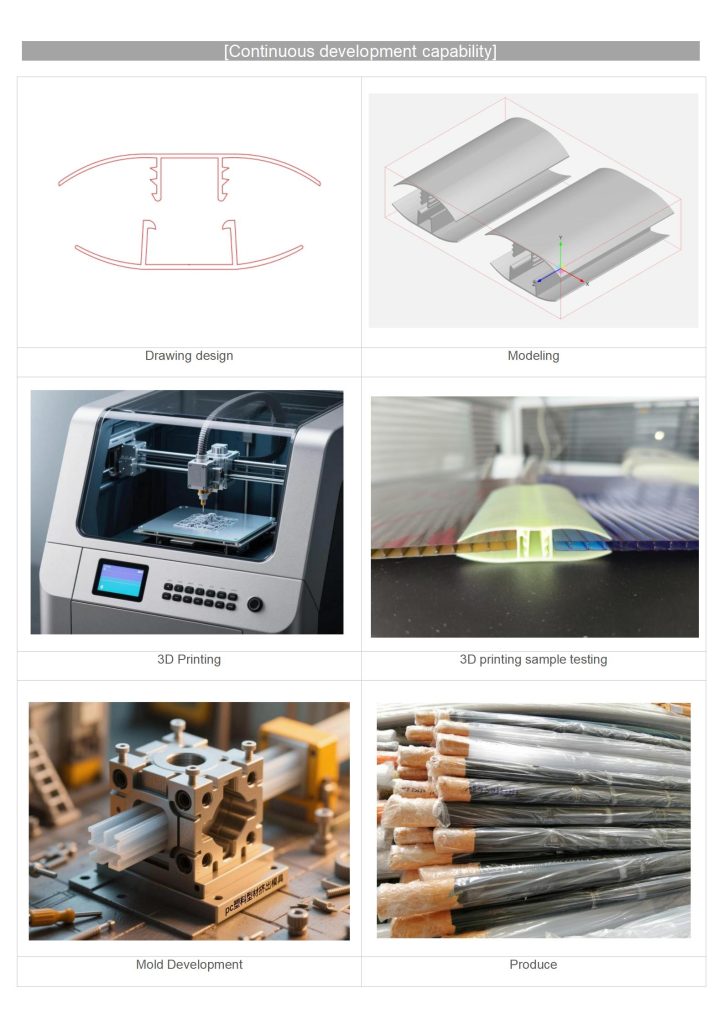

3. Full R&D & Production Process Chain
| Process Step | Work Content |
| Drawing design | Custom cross-section drawing design for PC profiles |
| 3D Modeling | 3D structural modeling of finished profiles |
| 3D Printing | Rapid prototype printing |
| 3D printing sample testing | Physical fitting test with polycarbonate sunshine board |
| Mold Development | Custom extrusion mold development for PC plastic profiles |
| Mass Produce | Extrusion production, packaging and storage of finished PC profiles |
4. Main Product Classification

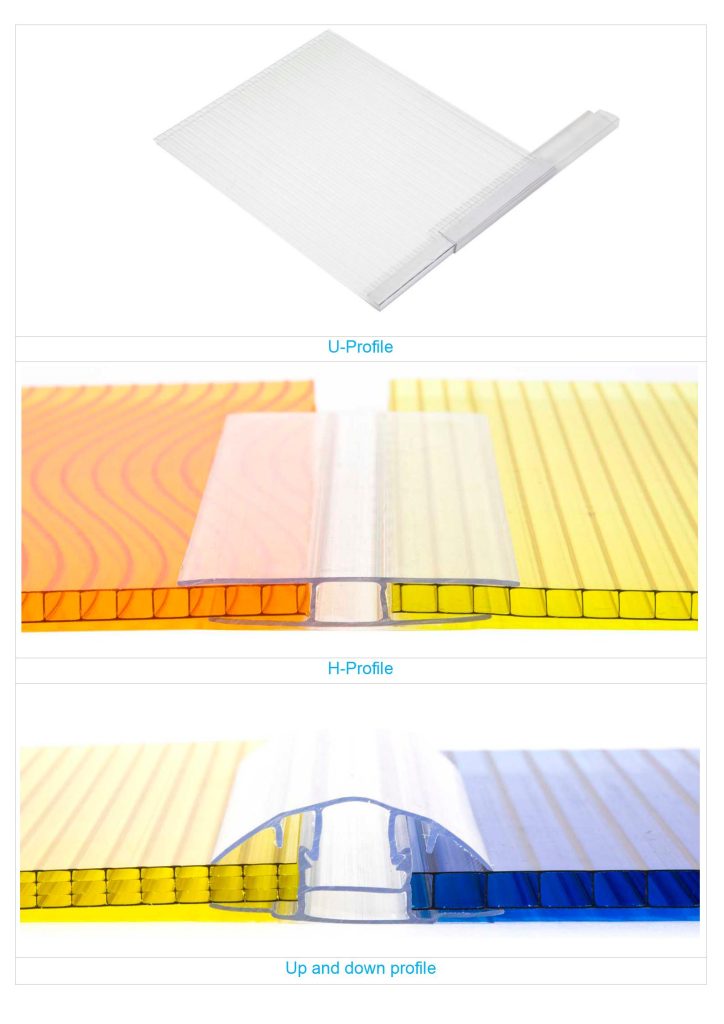

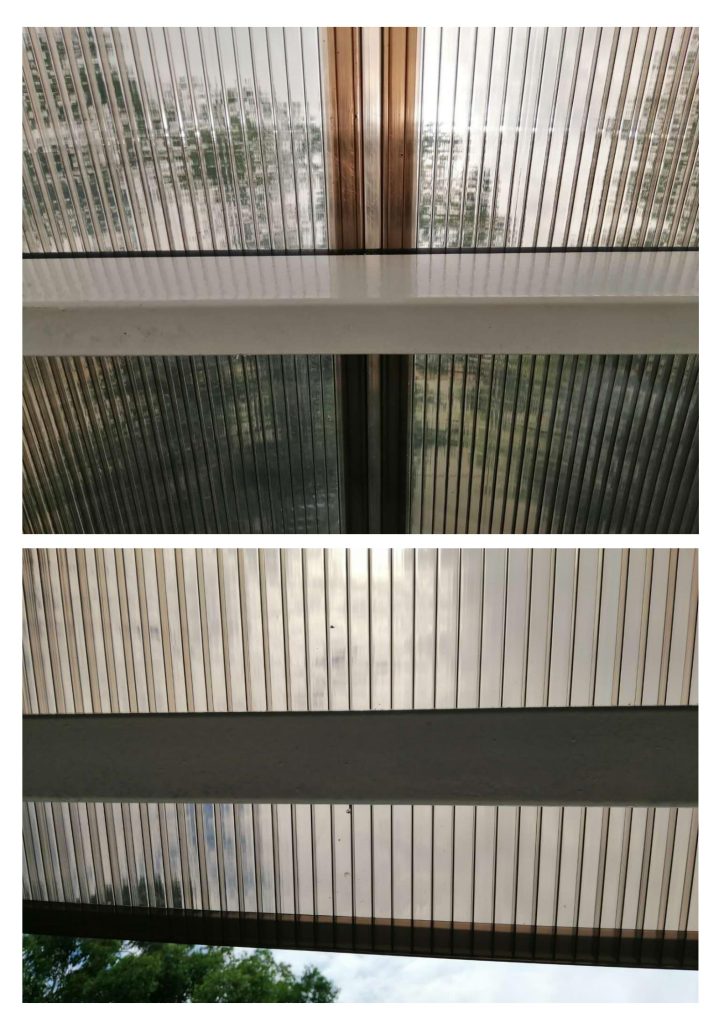

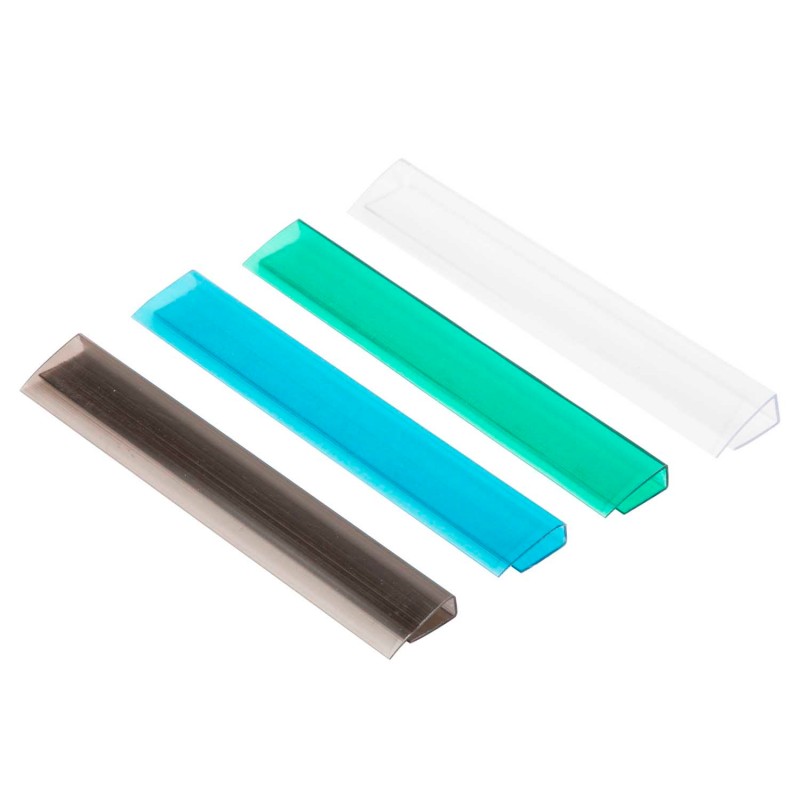

- 1. U-Profile: U-shaped edge sealing connecting profiles

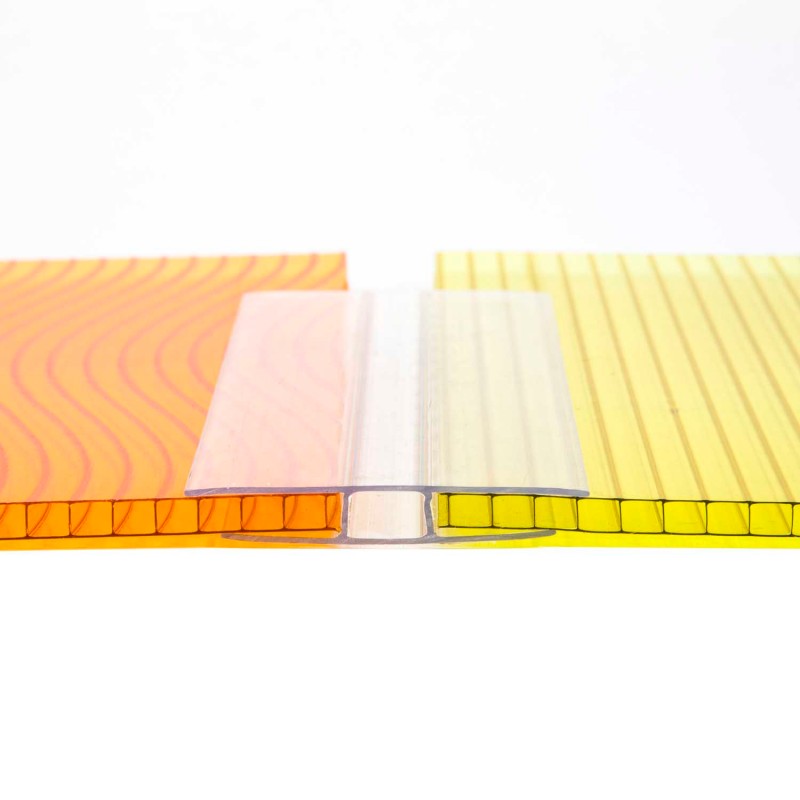

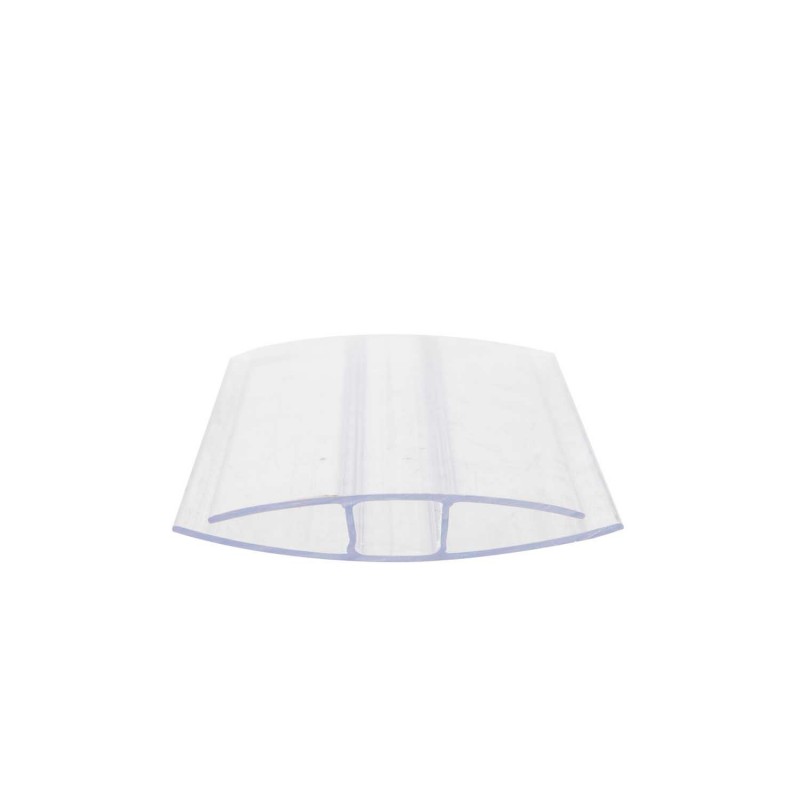

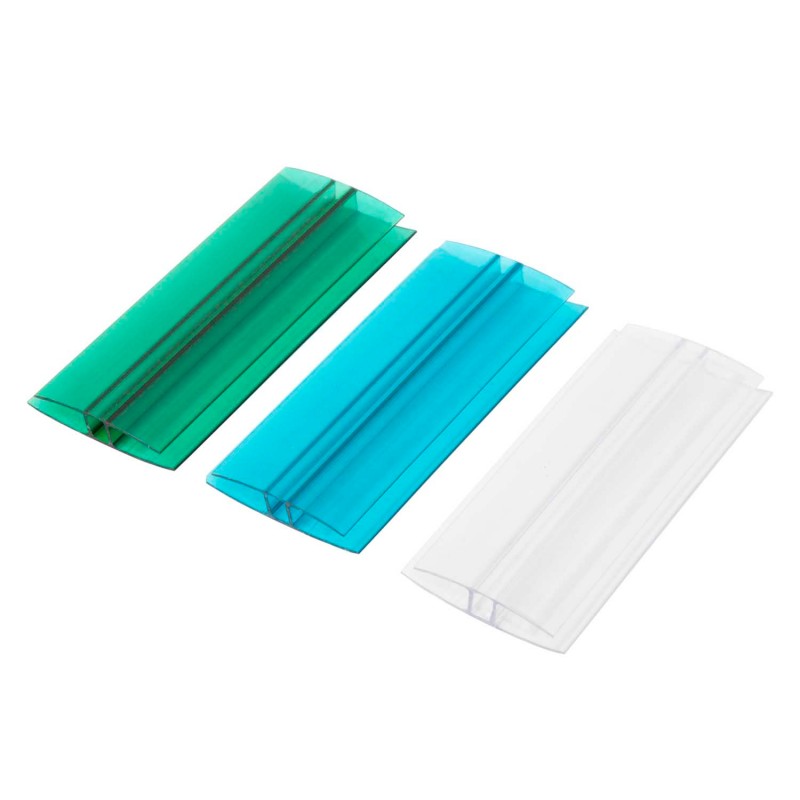

- 2. H-Profile: H-shaped middle splicing connecting profiles

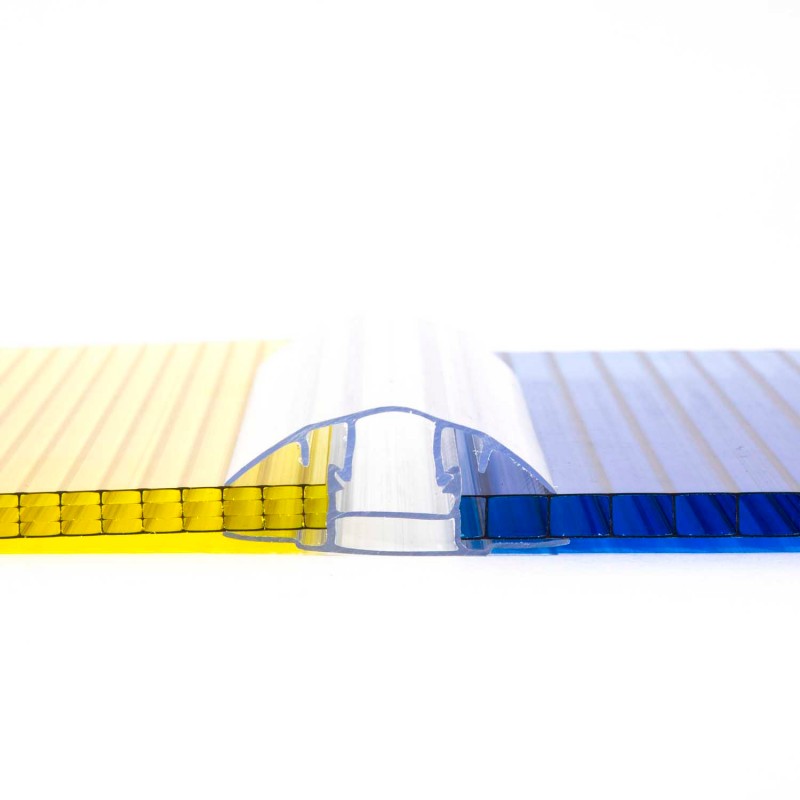

- 3. Up and down profile: Matching upper & lower lock assembly profiles

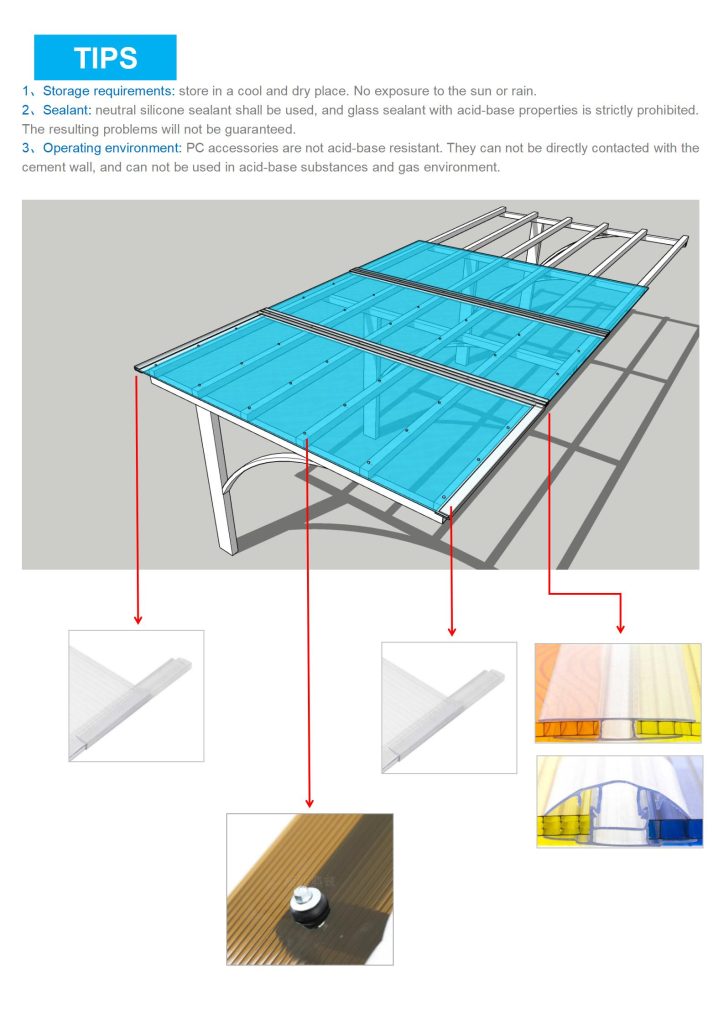

5. Technical Tips for Storage & Construction
5.1 Storage Requirements
Store in cool and dry indoor warehouse. Strictly avoid long-term sun exposure and rain soaking.
5.2 Sealant Matching Rule
Only neutral silicone sealant can be used for construction. Acidic or alkaline glass sealant is forbidden. All quality failures caused by mismatched sealant are not covered by product warranty.
5.3 Construction Environment Restrictions
PC profiles have poor acid & alkali resistance.
- • Cannot be directly attached to bare cement wall;
- • Cannot be used in spaces with corrosive acid-base liquid or gas.

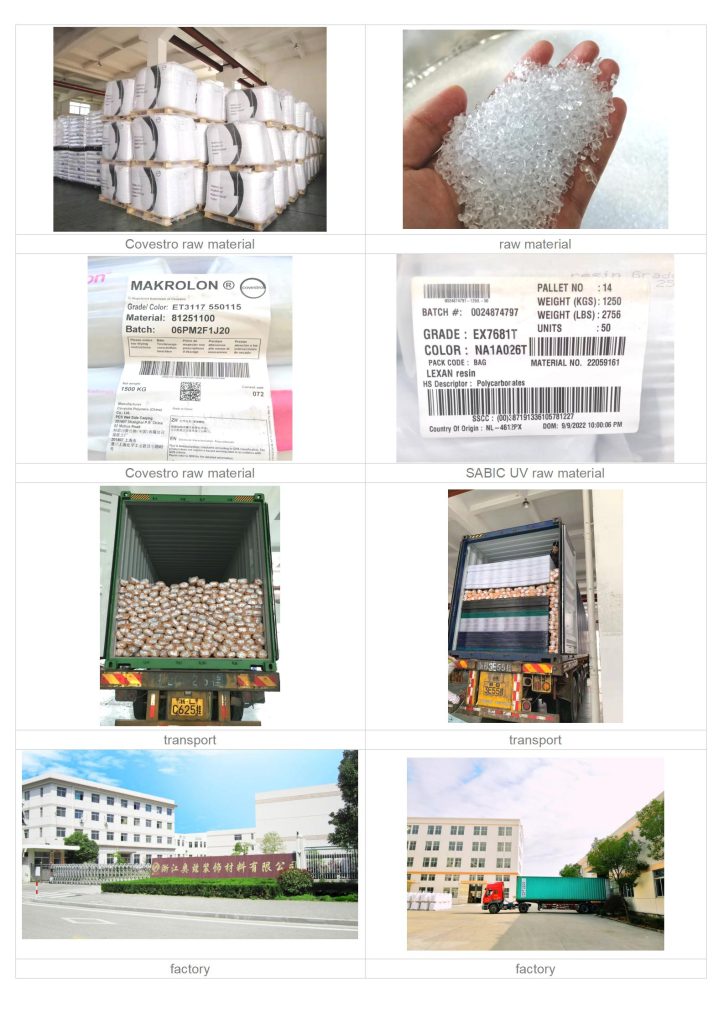

6. Raw Material Supply
| Raw Material Brand | Material Grade Feature |
| Lotte | PC-1070U polycarbonate (base material for standard profiles, excellent anti-aging) |
| Covestro | MAKROLON polycarbonate UV-resistant particles |
| SABIC | LEXAN UV stabilized polycarbonate resin |
7. Factory & Logistics
- • Manufacturer: Zhejiang Aoyi Decoration Materials Co., Ltd.
- • Service: Full container bulk transportation, finished products packed with protective film & wooden end caps
8. Contact Information
E-Mail: polycarbonatesheet@qq.com
