Mold No.	Structure	Thickness	Width	Length
1#	Double-wall	6mm, 8mm, 10mm	600mm	Custom available
2#	Four-wall	12mm, 16mm	600mm	Custom available
3#	Four-wall	8mm, 10mm, 12mm	600mm	Custom available
4#	Honeycomb	8mm, 10mm, 12mm	600mm	Custom available

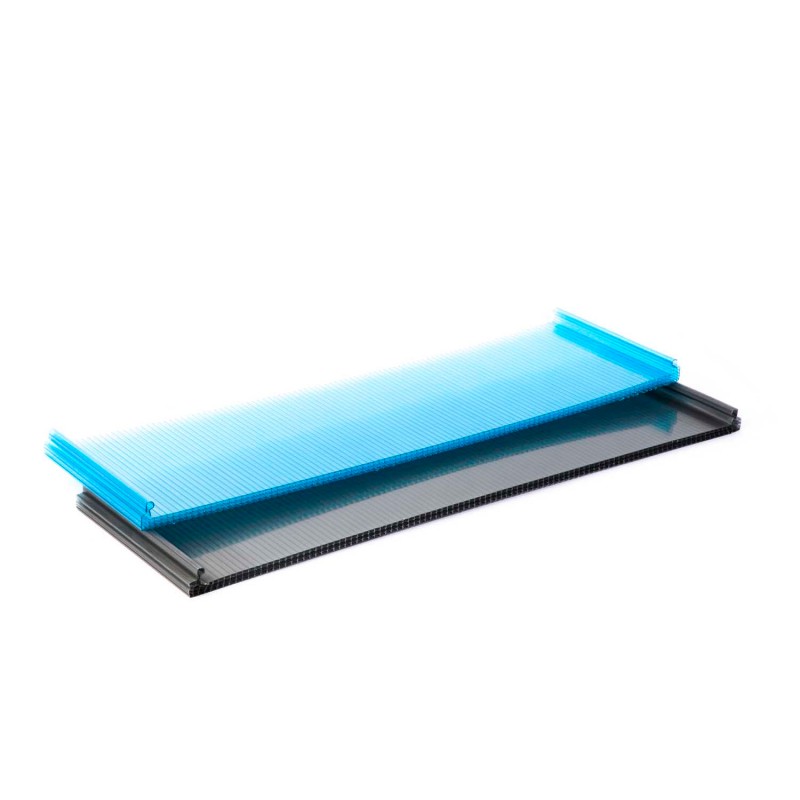

U-System Lock Polycarbonate Roof Panel Product Summary

1. Raw Material & Core Advantages

Raw Material Requirements

The U-System roof panel is manufactured with brand-new polycarbonate raw materials sourced from Covestro or SABIC. Recycled polycarbonate materials are not allowed for production.
All panels are equipped with UV-resistant coating on the surface, supported by a 10-year quality guarantee.

Core Product Advantages

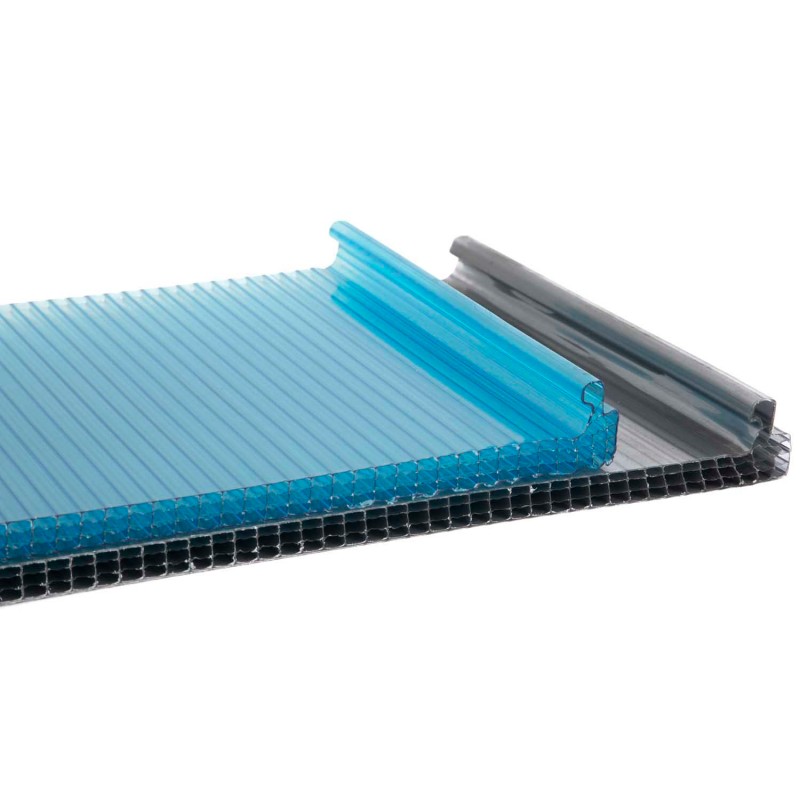

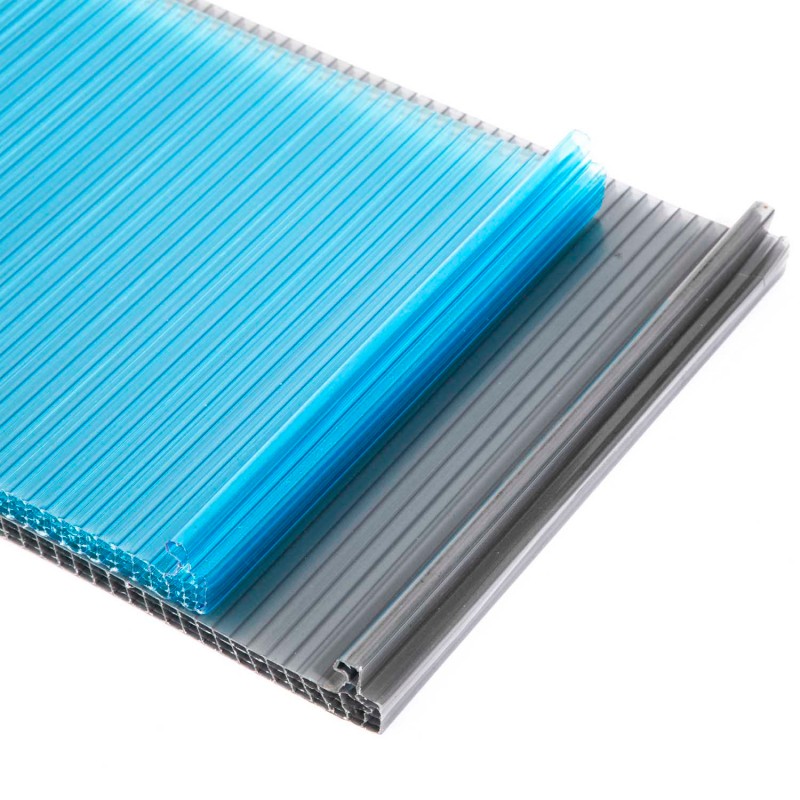

1. Special interlocking structure prevents panel tearing induced by thermal expansion and contraction, ideal for large-span canopy projects.
2. Multiple optional color options, adjustable light transmittance, and inherent thermal insulation performance.

2. Product Size & Physical Performance

Standard fixed width of each U-lock panel: 600mm; panel length can be fully customized according to project demands.

Structural Performance Parameters

Mold Model	Internal Structure	Thickness (mm)	Insulation Coefficient (W/㎡·K)	Sound Insulation (dB)	Minimum Bending Radius (mm)
1#	Double Wall	6	3.2	12	1200
1#	Double Wall	8	3.1	16	1600
1#	Double Wall	10	3.0	20	2000
2#	Four Walls	12	2.5	21	2400
2#	Four Walls	16	2.3	24	3200
3#	Four Walls	8	2.7	17	1600
3#	Four Walls	10	2.6	21	2000
3#	Four Walls	12	2.5	21	2400
4#	Honeycomb Alveolate	8	2.7	17	1600
4#	Honeycomb Alveolate	10	2.6	21	2000
4#	Honeycomb Alveolate	12	2.5	21	2400

Span & Load Bearing Data (Max Purlin Spacing under Uniform Load)

Unit: Meter

Panel Thickness	75KG/㎡ Load	100KG/㎡ Load	125KG/㎡ Load	150KG/㎡ Load	175KG/㎡ Load	200KG/㎡ Load
6mm	0.95	0.80	0.65	Not Applicable	Not Applicable	Not Applicable
8mm	1.10	0.95	0.80	0.70	0.60	0.50
10mm	1.25	1.10	0.95	0.85	0.75	0.65
12mm	1.30	1.15	1.00	0.90	0.80	0.70
16mm	1.35	1.20	1.10	1.00	0.90	0.80
Note: All span data is for reference only.

3. Complete Supporting Accessories

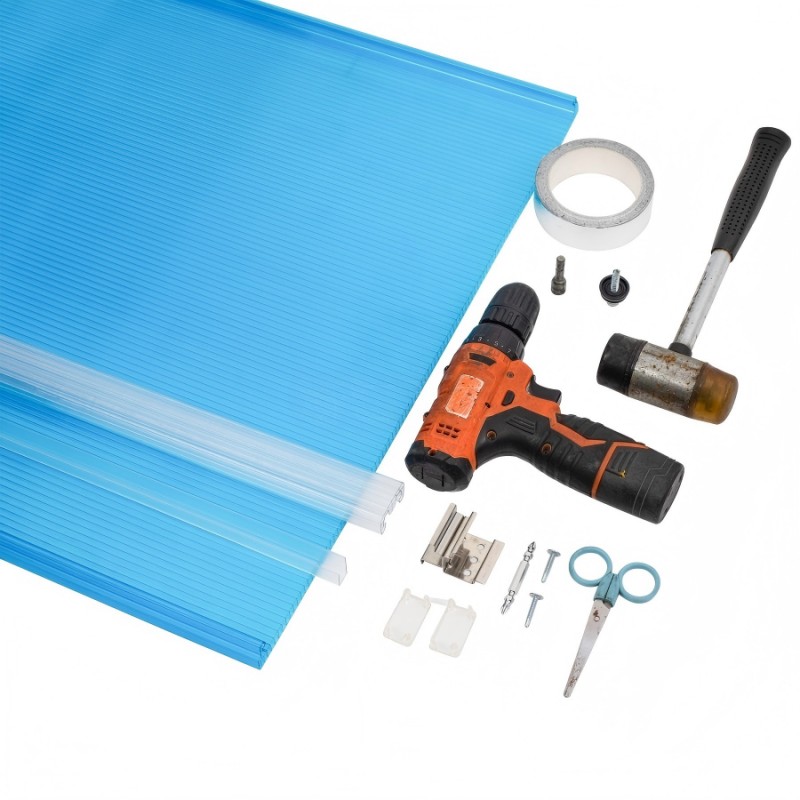

PC Profiles

• AC101, AC102: Interlocking U-shaped connecting profiles for panel joints
• AC608/AC610/AC612: End sealing profiles for 8/10/12mm panels
• AC706/AC708/AC710/AC712: Edge finishing profiles for 6/8/10/12mm panels

Plastic Accessories

• AC201, AC202: Transparent plastic end caps for panel ends

Stainless Steel Fasteners

• AC308/AC310/AC312: Intermediate lock buckles for 8/10/12mm panels
• AC406/AC408/AC410/AC412/AC416: Edge fixing buckles for 6/8/10/12/16mm panels

Aluminum Accessories

• AC816: Special aluminum profile for 16mm thick panels

Tapes & Screws

• AC901: Breathable aluminum sealing tape for panel end sealing
• AC501: Standard self-tapping screws
• AC502: Waterproof self-drilling screws with rubber gaskets

4. Standard Installation Steps

1. Cut four corner slots on both ends of panels to reserve expansion gaps for U-shaped profiles.
2. Peel off the protective bottom film of panels, stick aluminum breathable tape on both hollow ends to block dust and moisture.
3. Install U-shaped PC sealing profiles at both ends of each panel.
4. Fix the edge of the first panel onto purlins with waterproof screws.

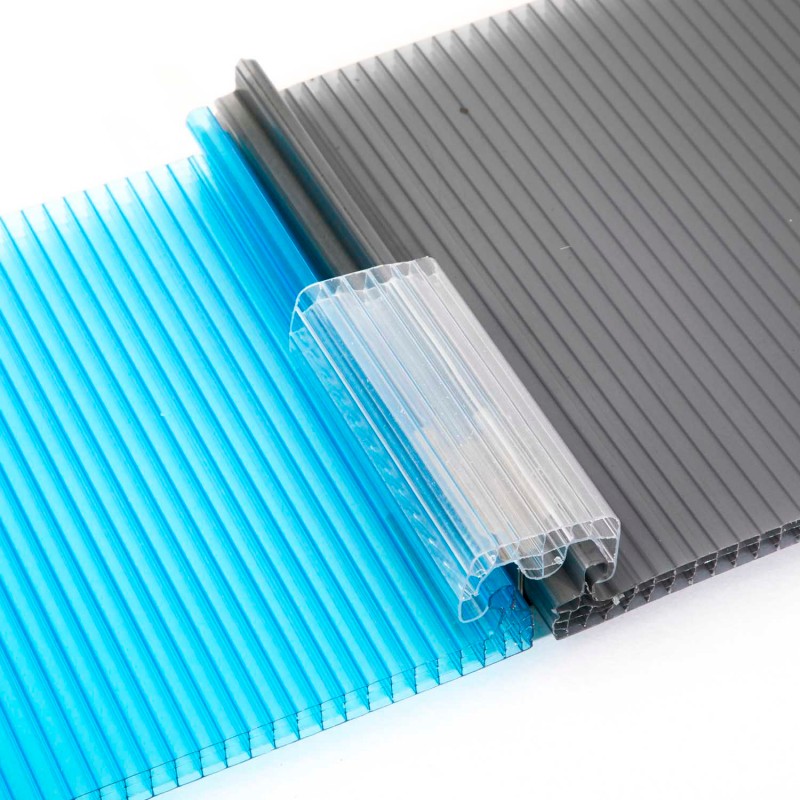

5. Place stainless steel interlocking fasteners on the support purlins between panels.
6. Tighten screws to lock the stainless steel fasteners firmly.
7. Install the second panel and insert its lock edge into the fastener of the previous panel.

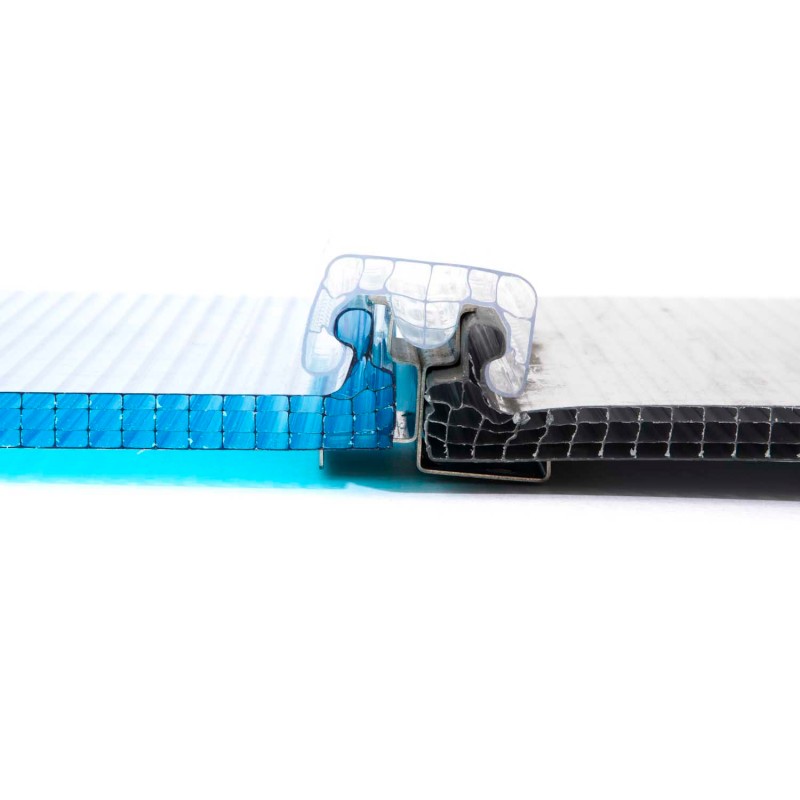

8. Hammer the PC pressure strip to fully connect the two adjacent panels.
9. Mount plastic end caps on both ends of the interlocking joint.
10. Remove the surface protective film of panels after finishing all installation work.

5. Edge & Perimeter Fixing Structure

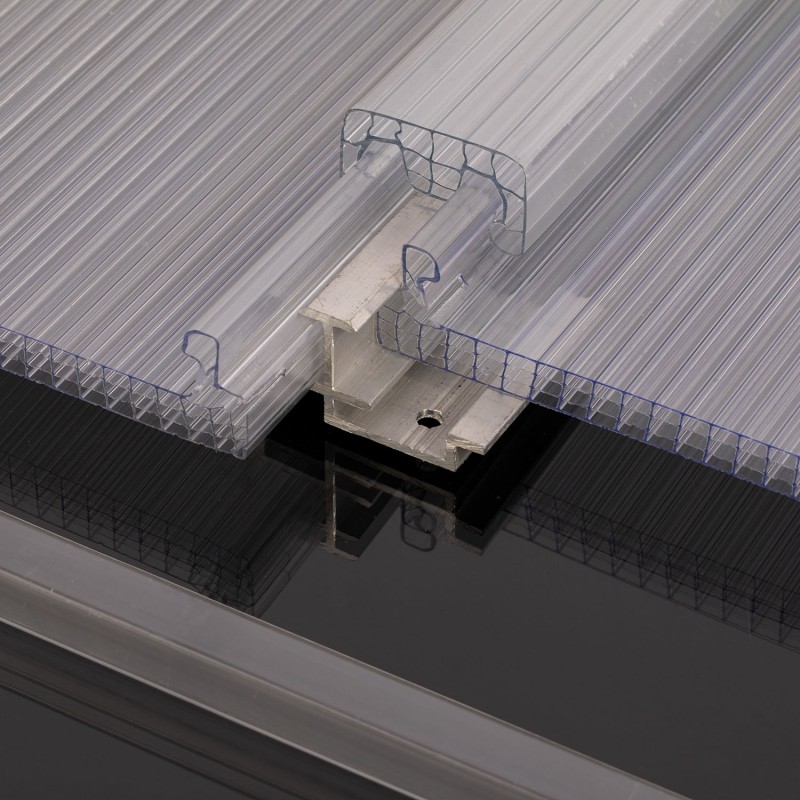

The peripheral fixing system of the canopy consists of four core components: self-tapping screw, waterproof rubber gasket, U-lock polycarbonate panel, and steel purlin. Screws pass through the gasket and panel to fasten the whole system to underlying steel purlins. The interlocking lap design eliminates the need for additional glue filling, realizing fully concealed waterproof installation.

6. Application Scenarios

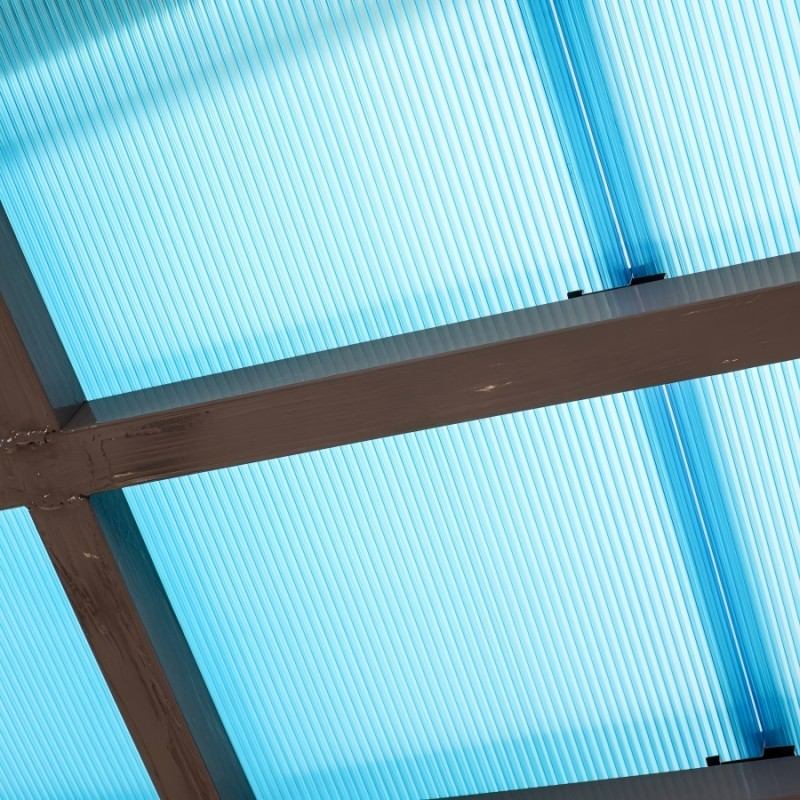

The U-System lock polycarbonate roof panel is widely used for large-span curved canopies, pedestrian walkway skylights, parking lot sunshades, factory daylighting walls, and outdoor terrace roofing systems.
