Polycarbonate Wall Panel System – Product Introduction
1. Product Overview

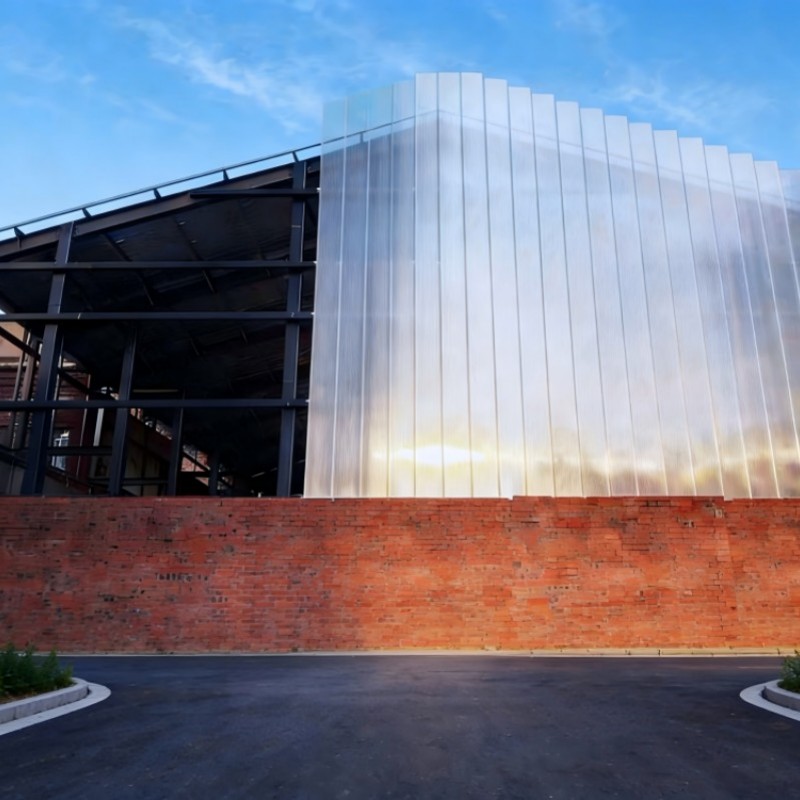

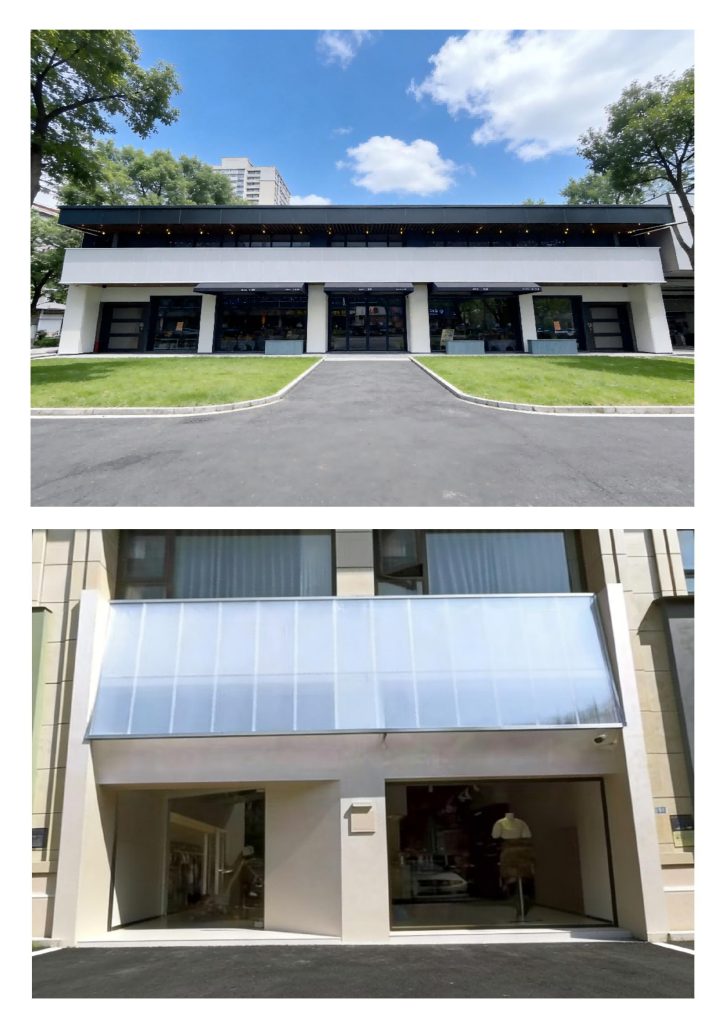

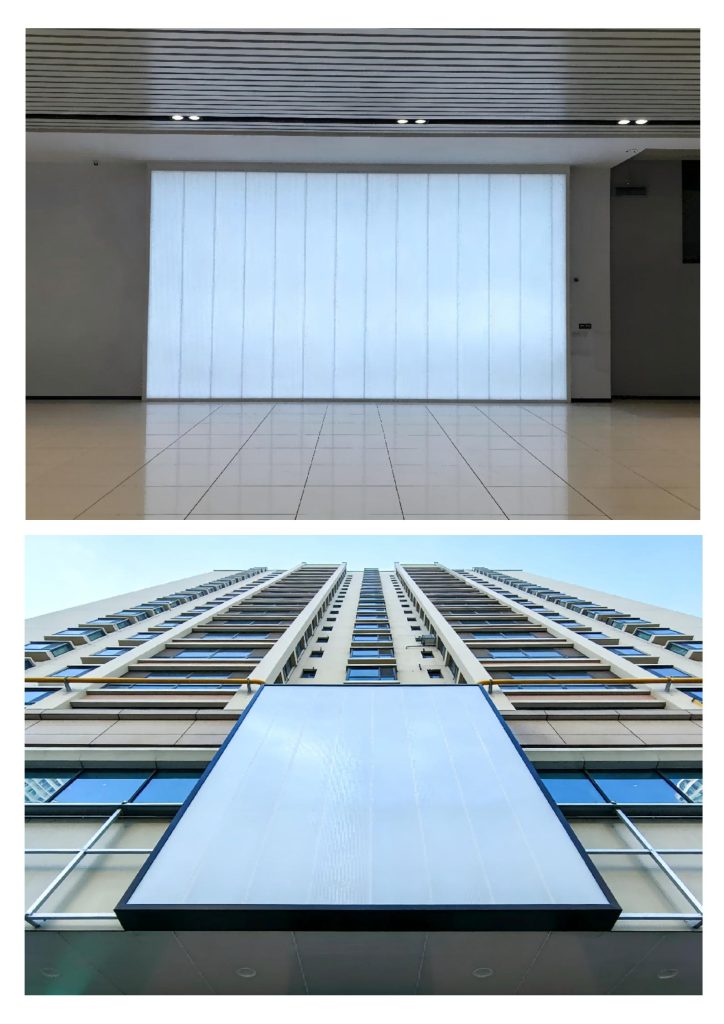

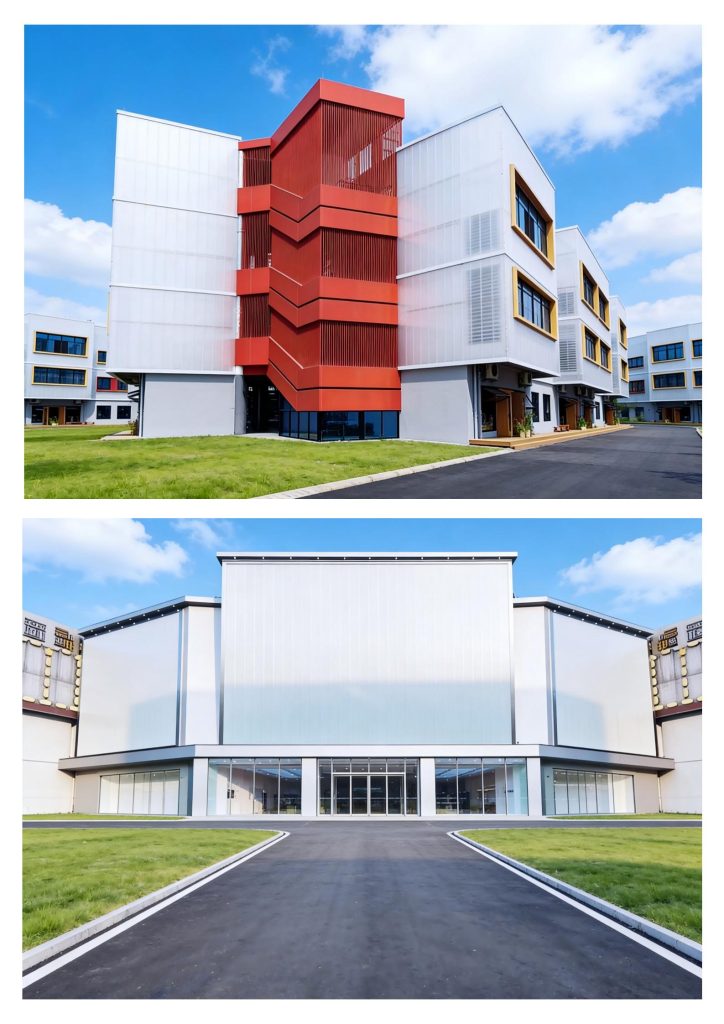

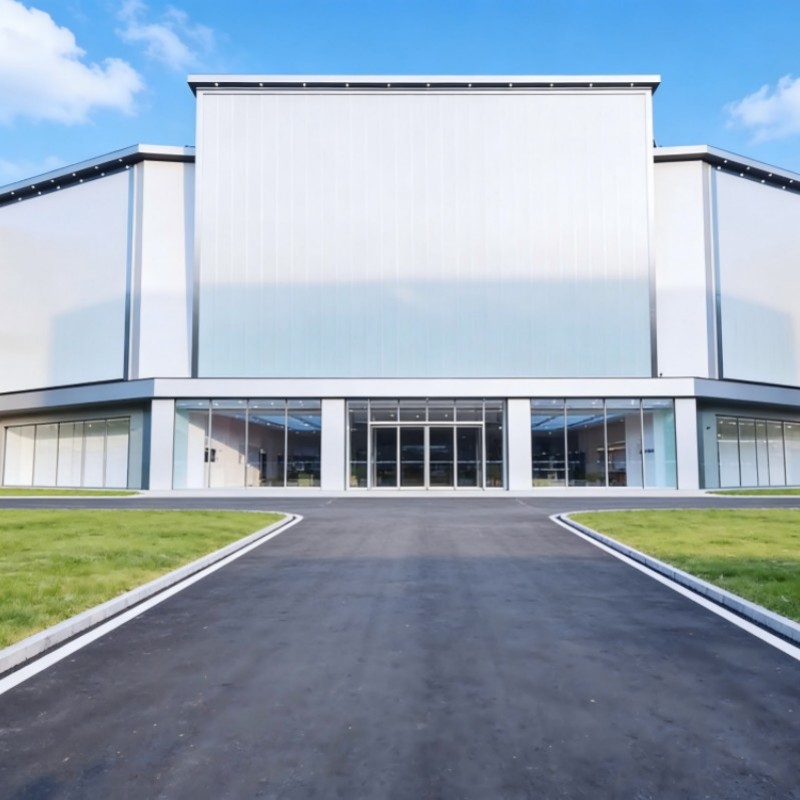

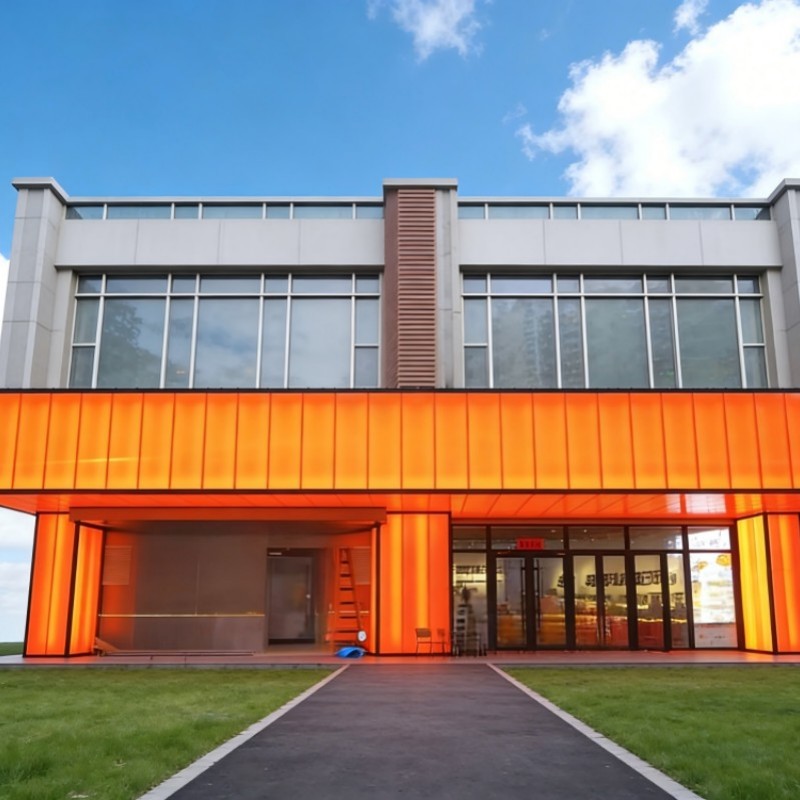

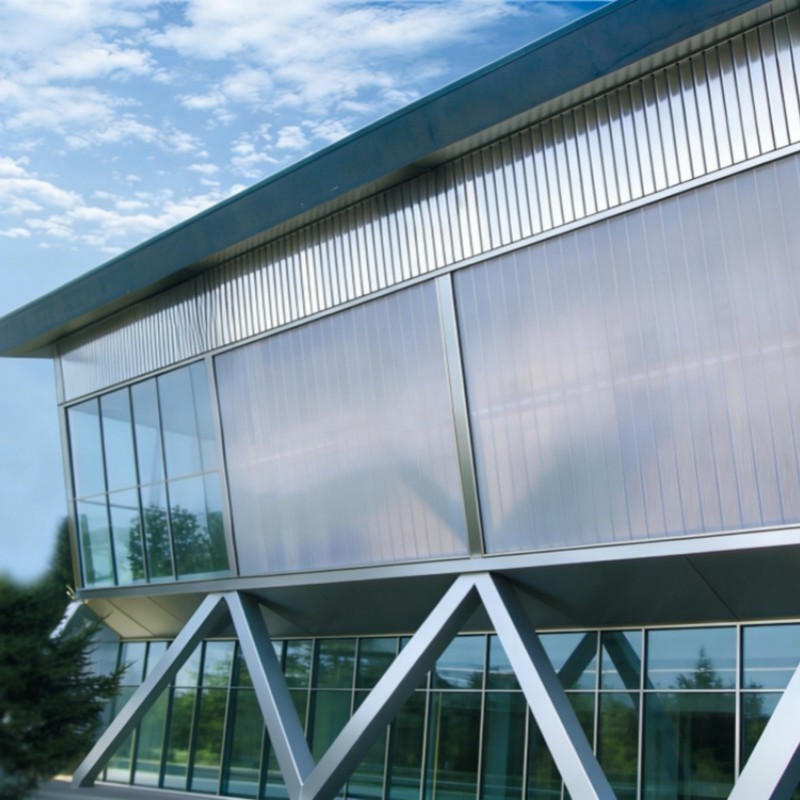

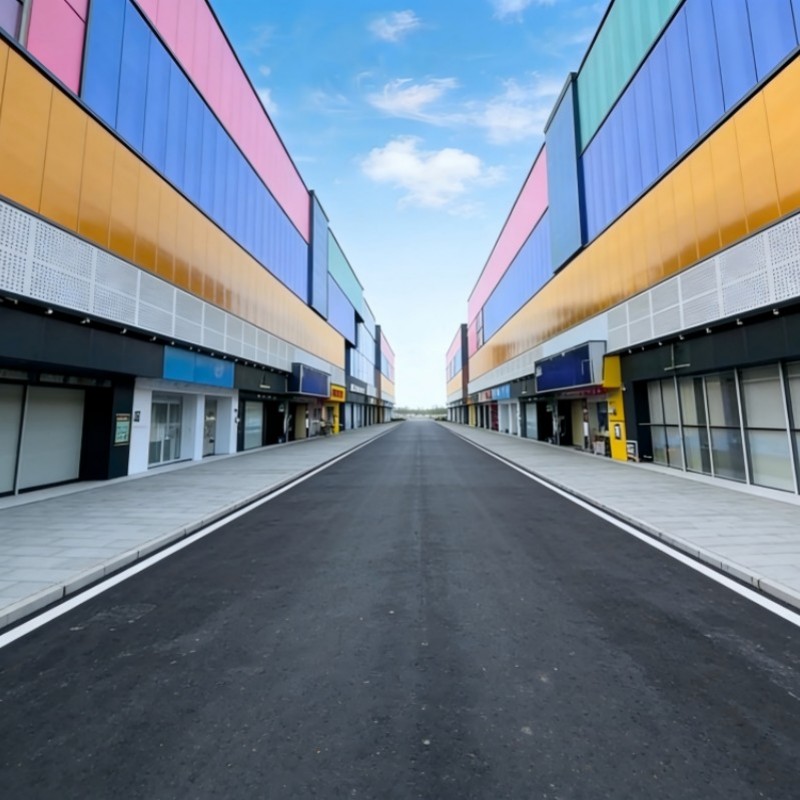

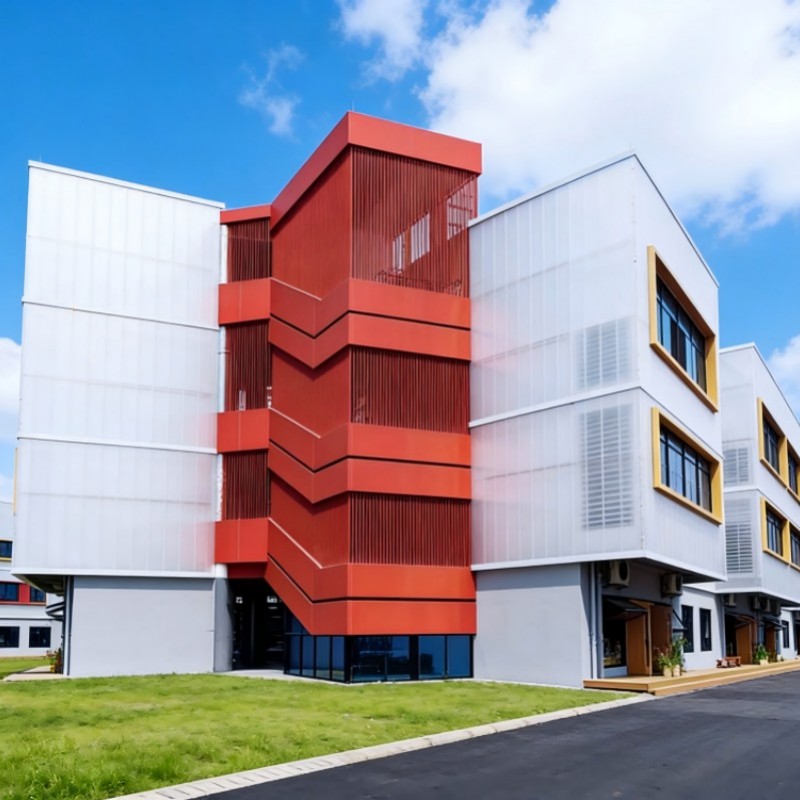

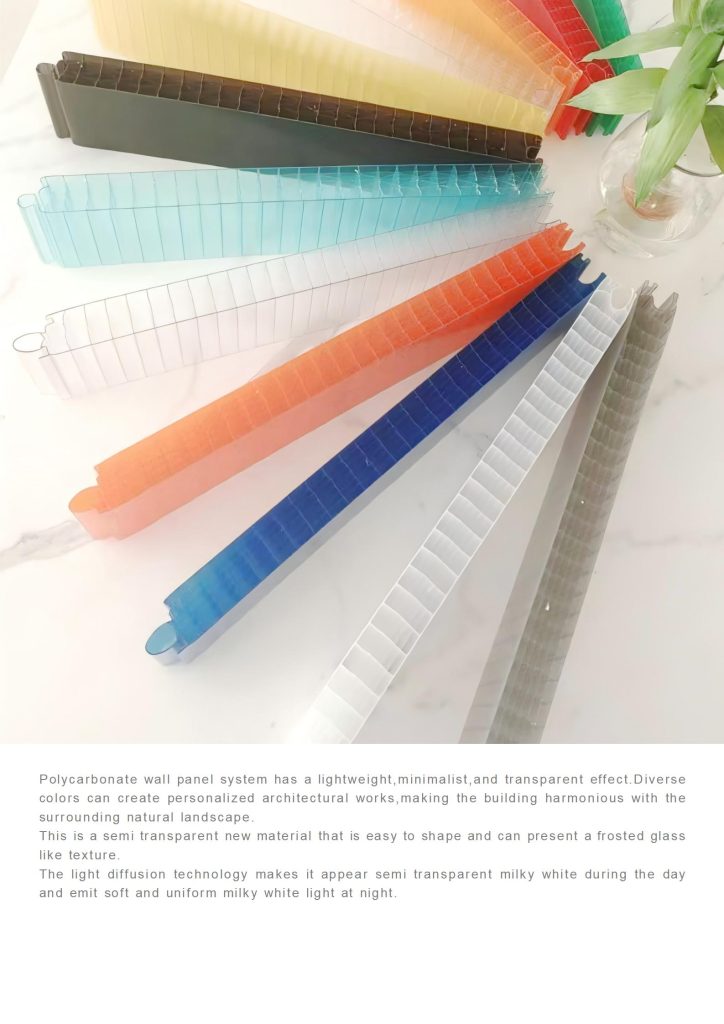

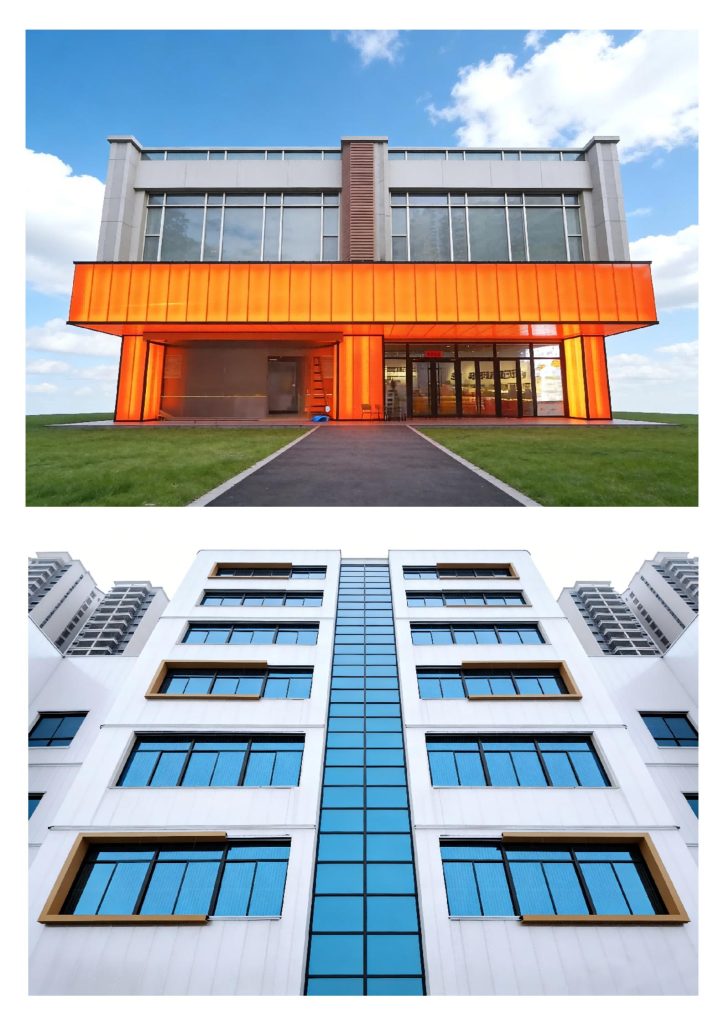

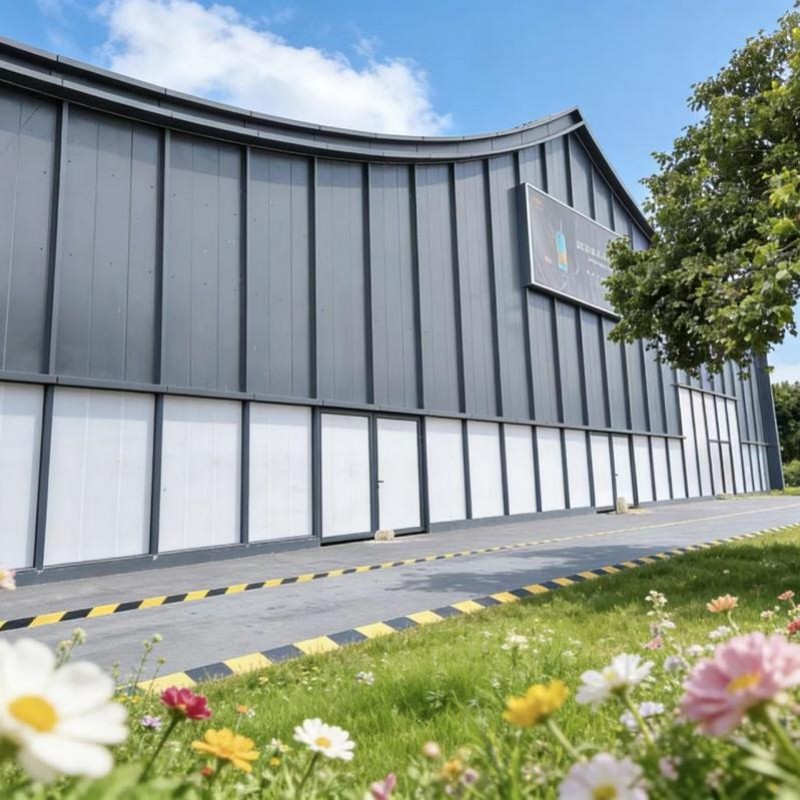

Polycarbonate wall panel system is a semi-transparent new material with lightweight, minimalist and transparent effects. It is easy to shape and can present a frosted glass-like texture. Diverse color options enable personalized architectural design, making buildings harmoniously integrate with the surrounding natural landscape.

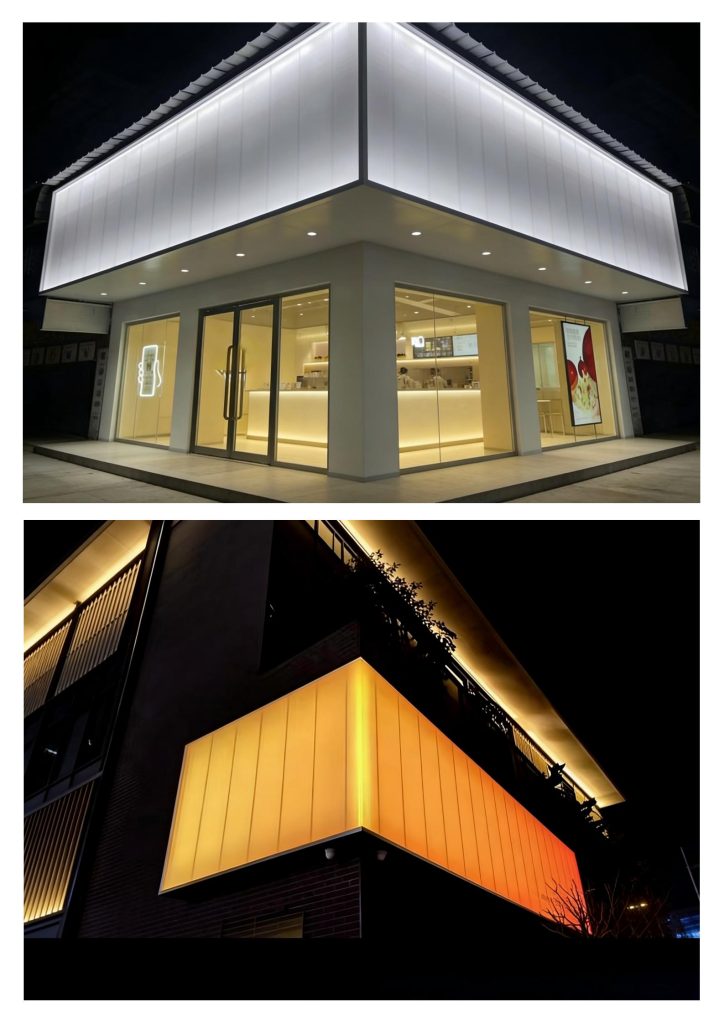

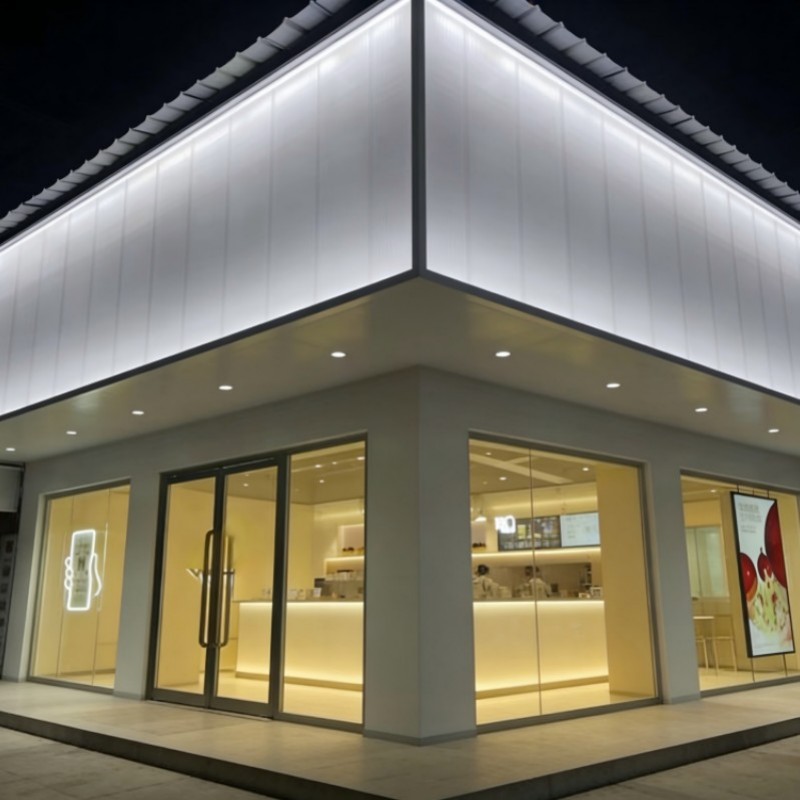

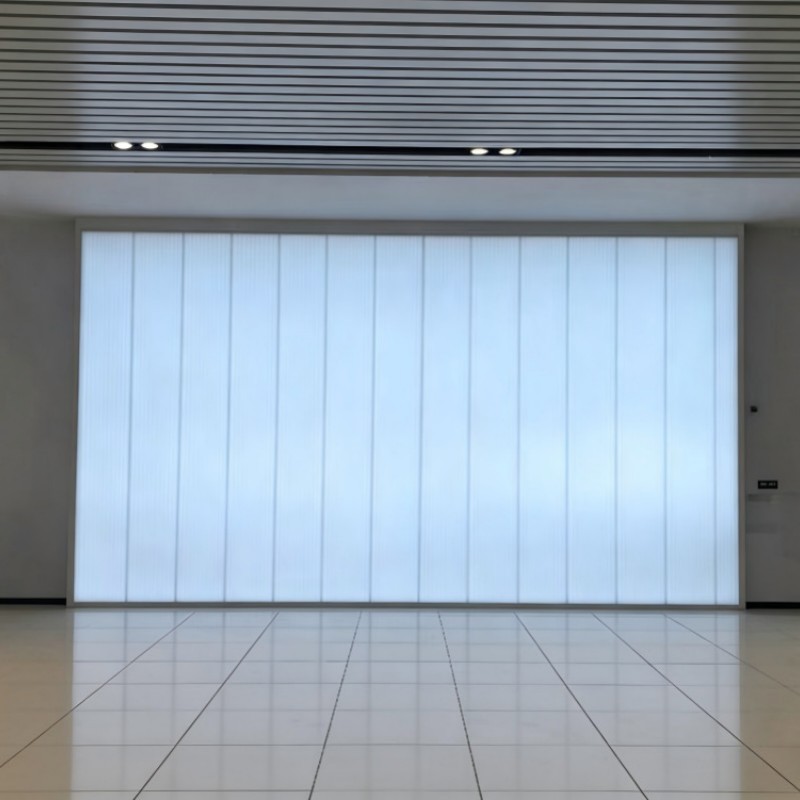

The core light diffusion technology makes the panel appear semi-transparent milky white during the daytime, and emit soft and uniform milky white light at night.

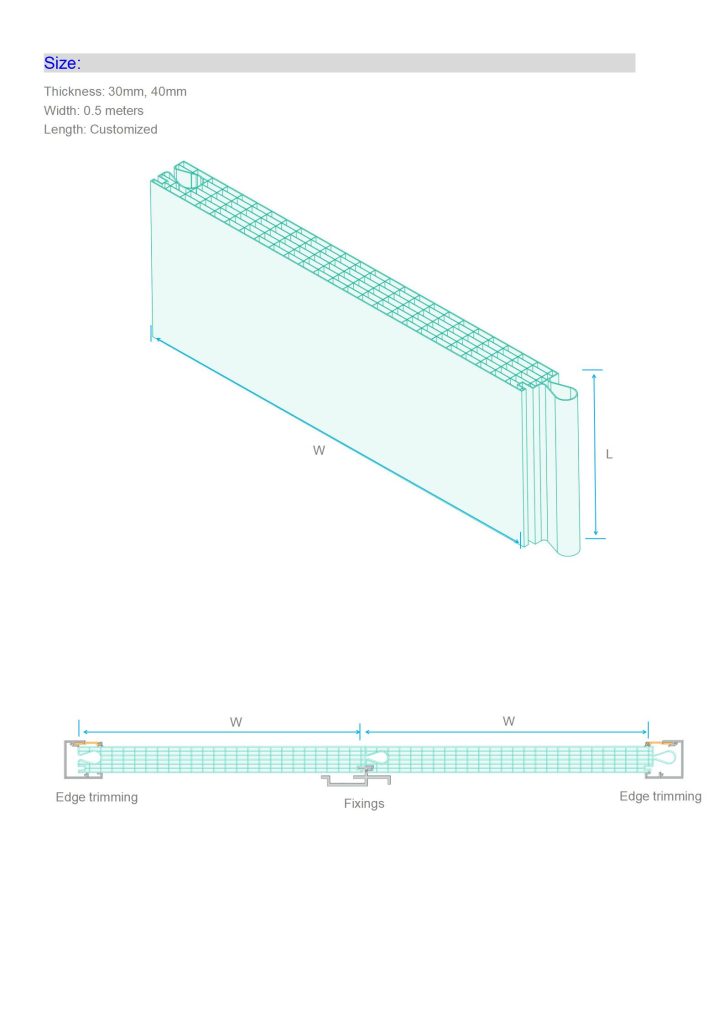

2. Product Specifications & Dimensions
| Parameter | Specific Value |
| Thickness | 30mm, 40mm |
| Width | 0.5 meters (500mm) |
| Length | Customized |

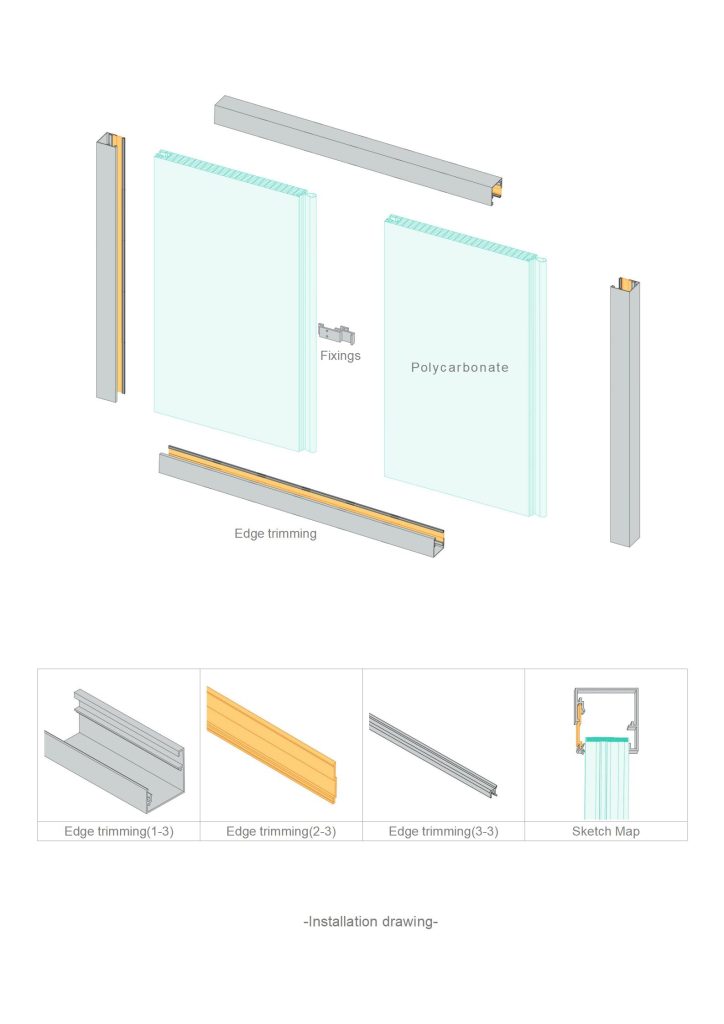

3. Installation Composition
Three core matching parts of the system:
- 1. Polycarbonate wall panel
- 2. Edge trimming profiles
- 3. Fixing accessories

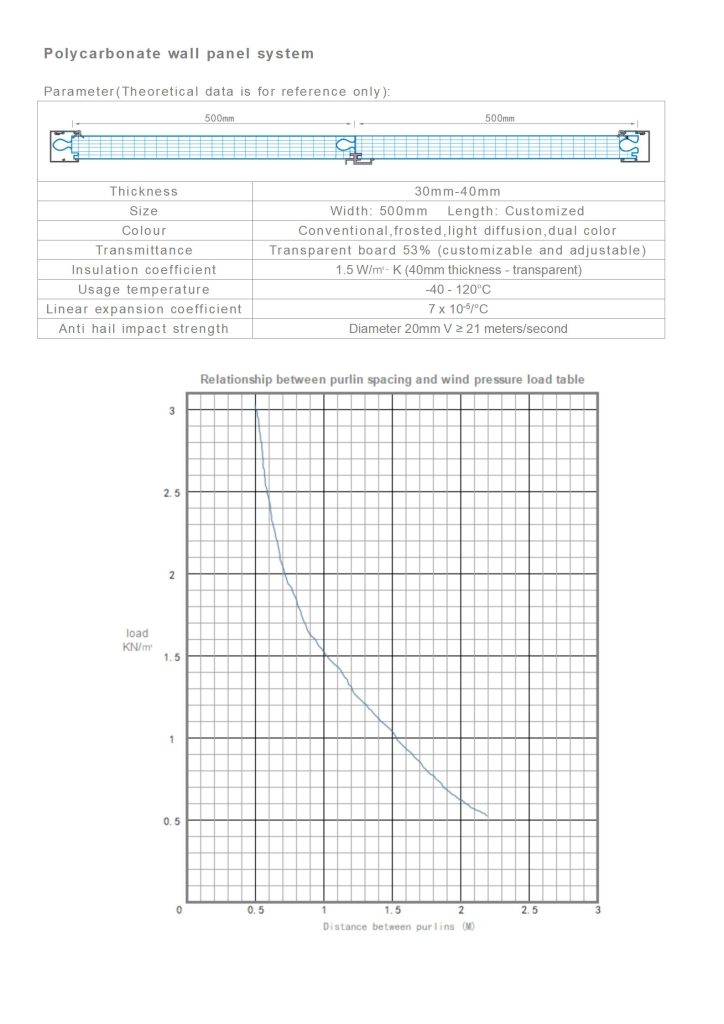

4. Technical Performance Parameters
Note: All theoretical data is for reference only
| Performance Item | Technical Index |
| Available Thickness | 30mm ~ 40mm |
| Fixed Width | 500mm |
| Length Requirement | Fully customized |

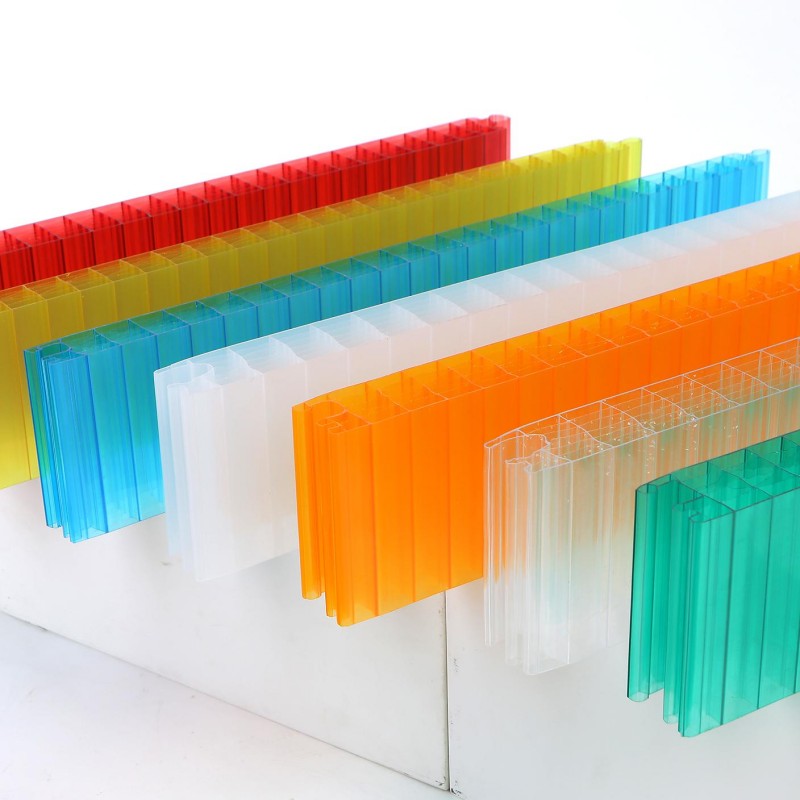

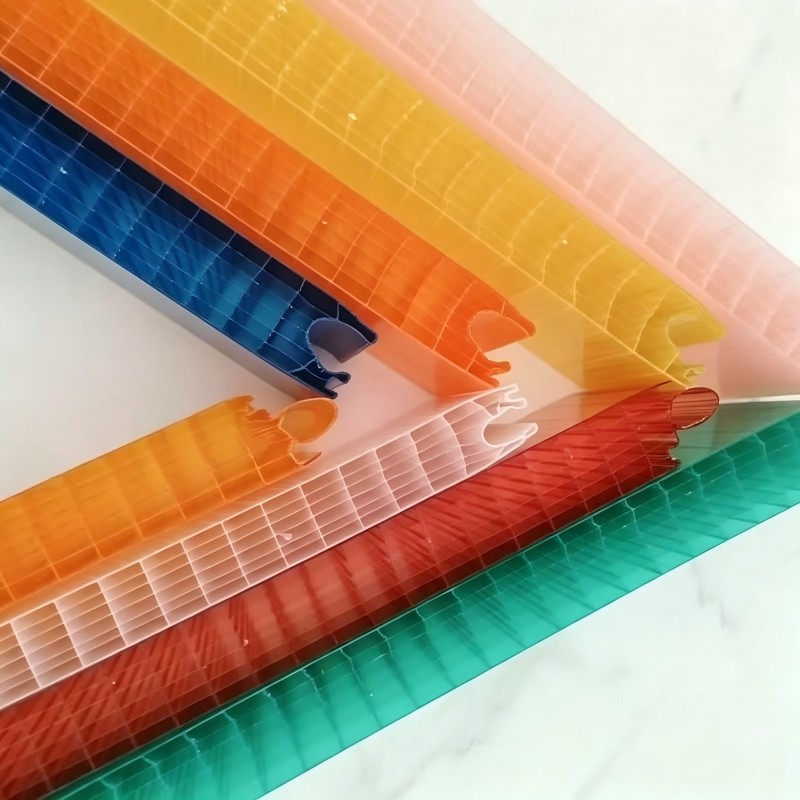

| Color Series | Conventional solid color, frosted surface, light diffusion type, dual-color co-extrusion |
| Light Transmittance | Standard transparent sheet: 53% (adjustable upon custom demand) |
| Thermal Insulation Coefficient | 1.5 W/㎡·K (40mm transparent panel) |
| Service Temperature Range | -40℃ ~ 120℃ |
| Linear Expansion Coefficient | 7 × 10⁻⁵ /℃ |
| Anti-hail Impact Resistance | 20mm diameter hail, impact speed ≥ 21 m/s |

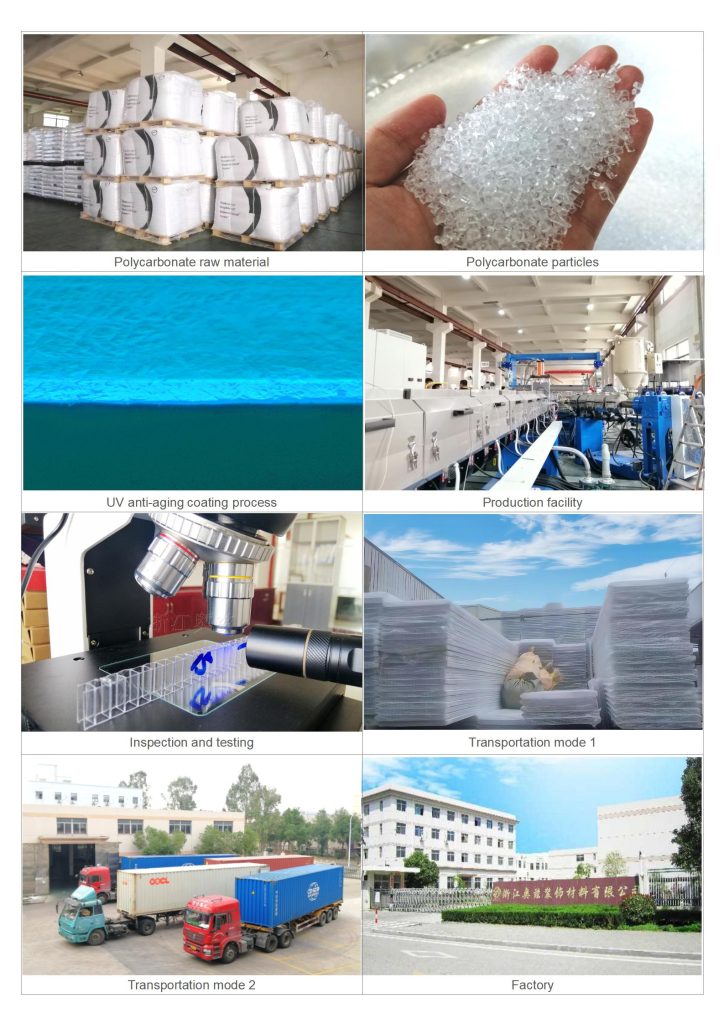

5. Complete Production & Delivery Flow
- 1. Raw material preparation: Polycarbonate plastic particles
- 2. Surface treatment: UV anti-aging coating process
- 3. Deep processing: Full automatic extrusion production line manufacturing
- 4. Quality control: Microscope inspection & performance testing
- 5. Packaging & storage: Protective film packaging and stacking
- 6. Logistics transportation: Two delivery schemes (bulk sheet truck / container shipping)
- 7. Factory delivery

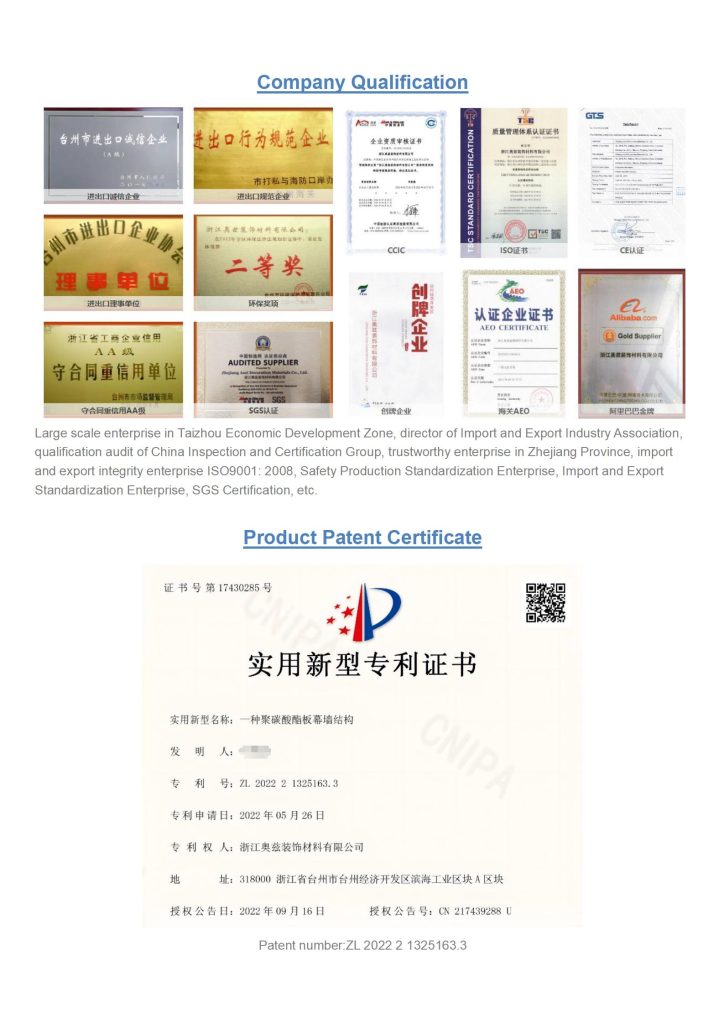

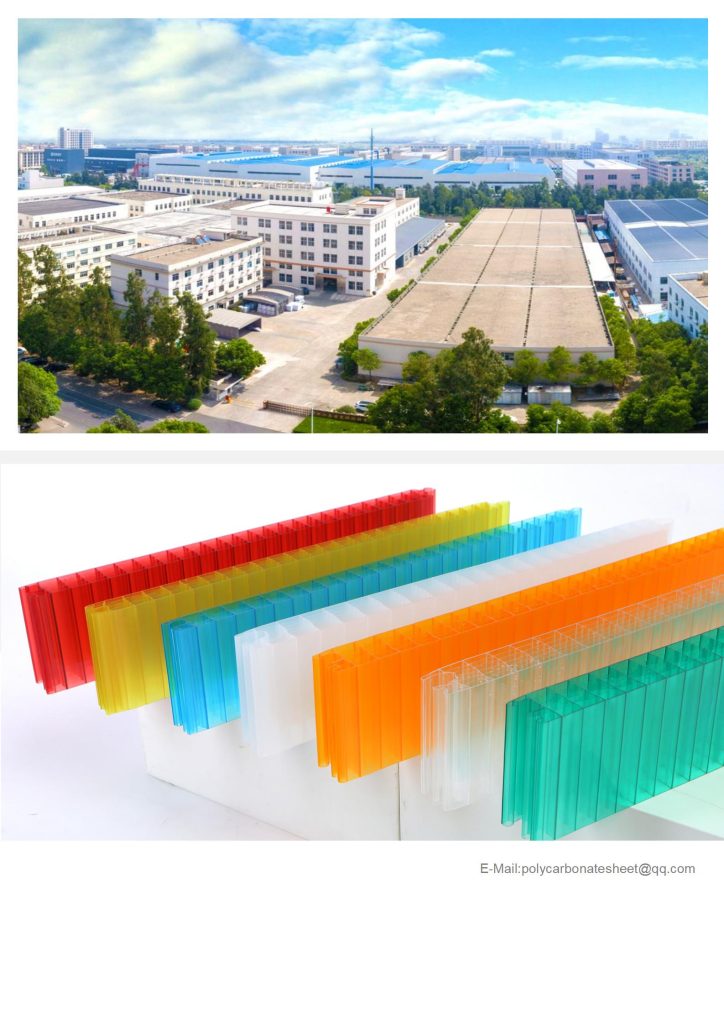

6. Enterprise Qualifications
- • Large-scale manufacturing enterprise in Taizhou Economic Development Zone
- • Director unit of Taizhou Import and Export Industry Association
- • Audited and certified by CCIC (China Inspection and Certification Group)
- • Zhejiang Provincial Trustworthy Enterprise
- • Taizhou Import & Export Integrity Enterprise (Class A)
- • ISO9001:2008 Quality Management System Certified
- • Safety Production Standardization Enterprise
- • Import & Export Standardized Operation Enterprise
- • SGS Third-party Testing Certification
- • AEO Customs Certified Enterprise
- • Alibaba Gold Supplier
7. Independent Intellectual Property Patent
Utility Model Patent Name: A Polycarbonate Panel Curtain Wall Structure
Patent No.: ZL 2022 2 1325163.3
Application Date: May 26, 2022
Authorization Announcement Date: September 16, 2022
