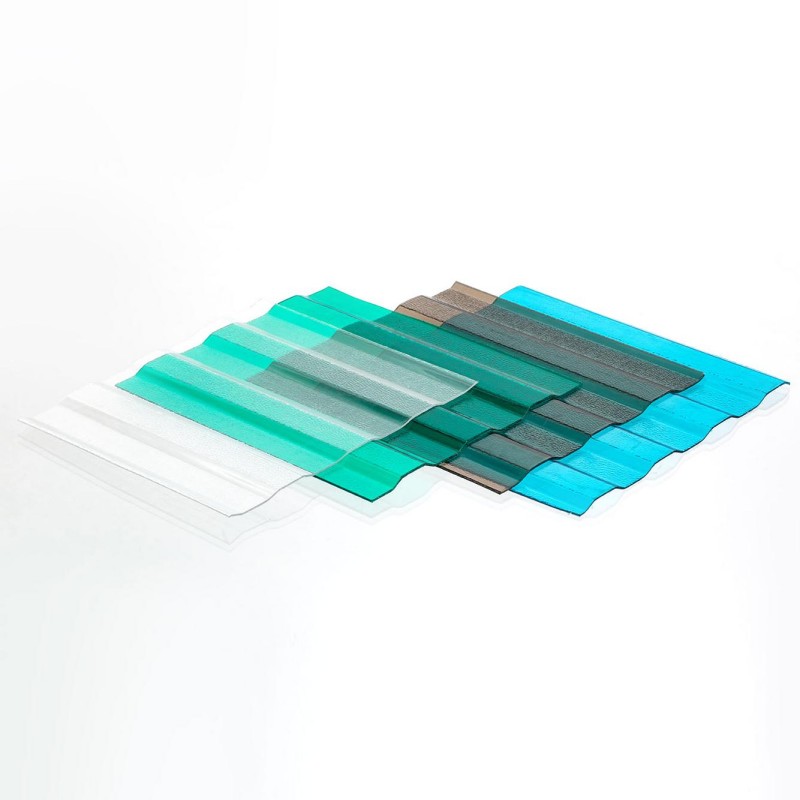

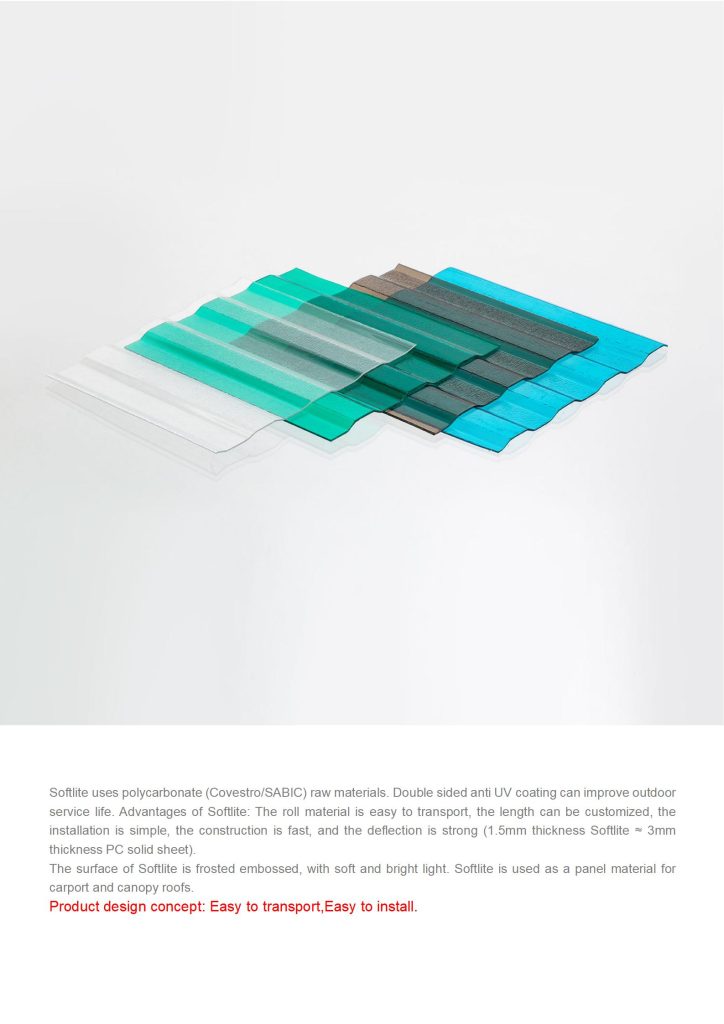

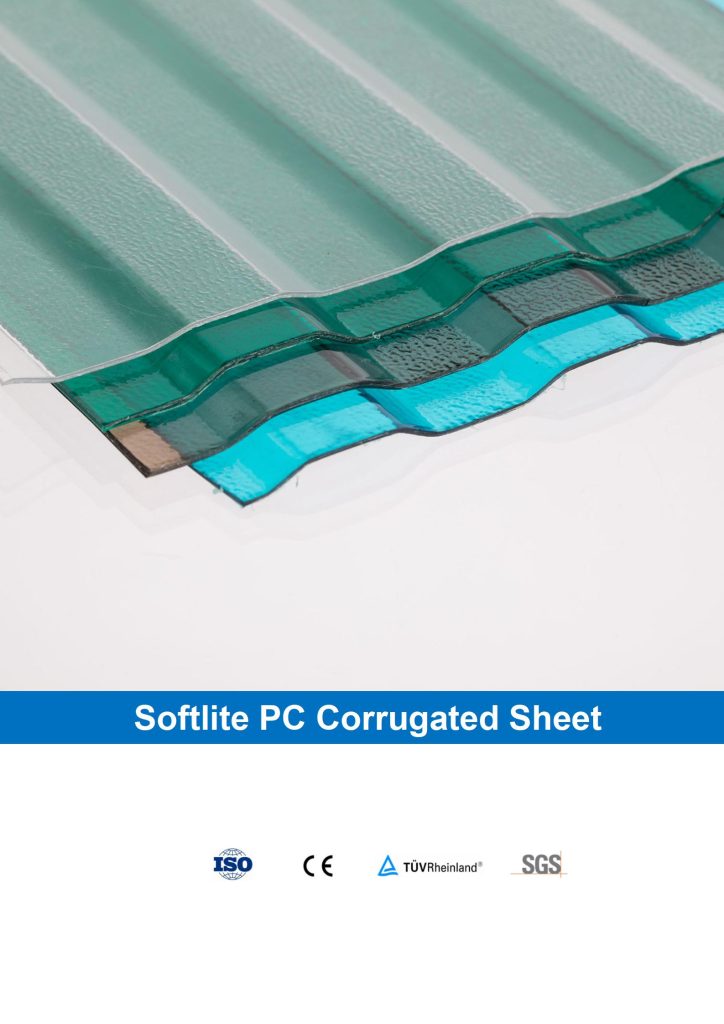

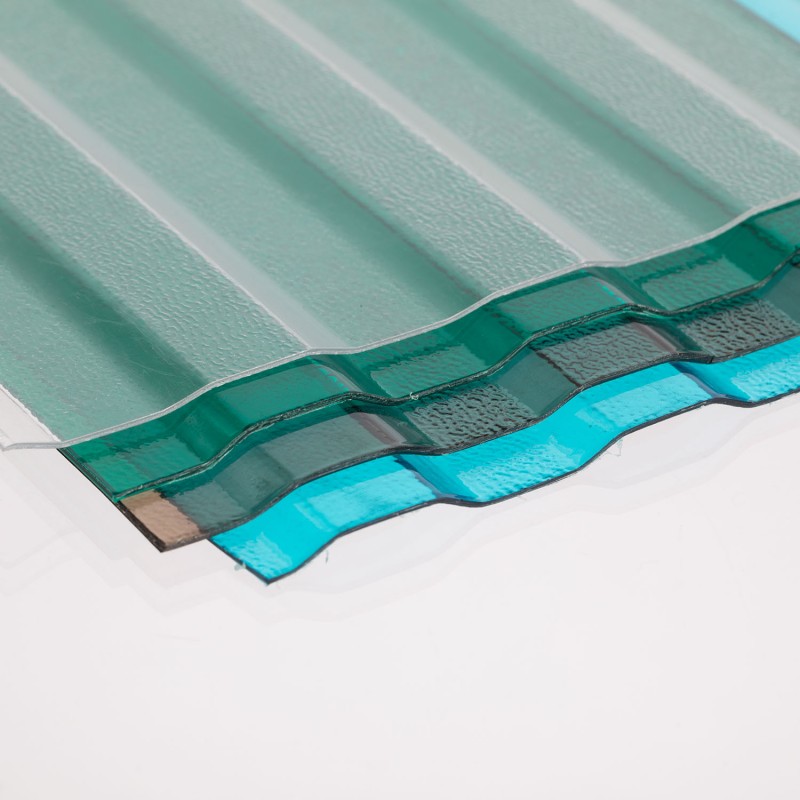

Softlite PC Corrugated Sheet Product Introduction
1. Product Basic Information
| Item | Content |
| Product Name | Softlite PC Corrugated Sheet |
| Raw Material | Polycarbonate (Covestro / SABIC brand PC) |
| Surface Treatment | Double-sided anti-UV coating |

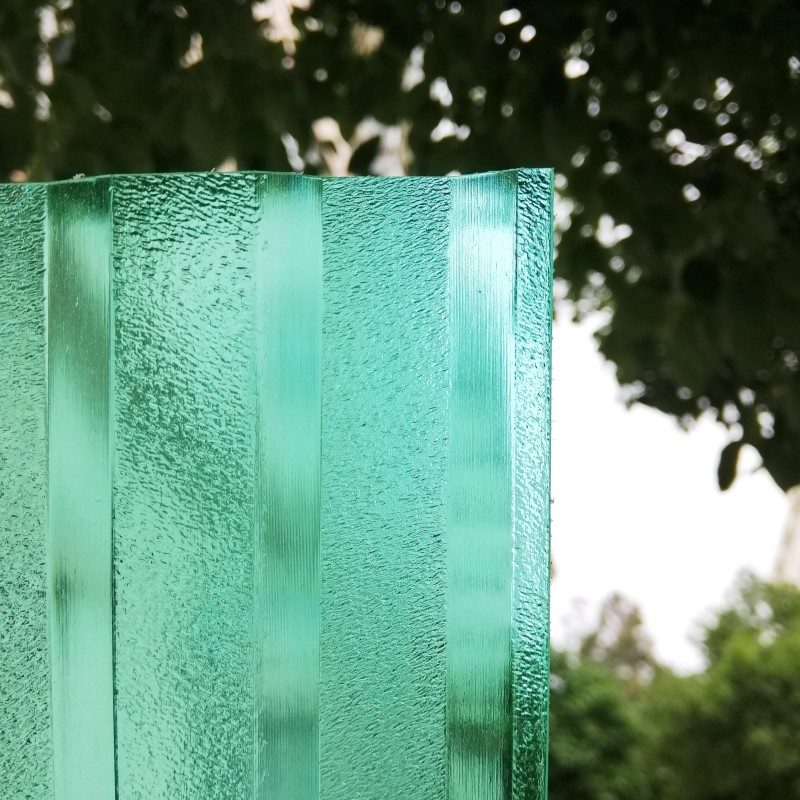

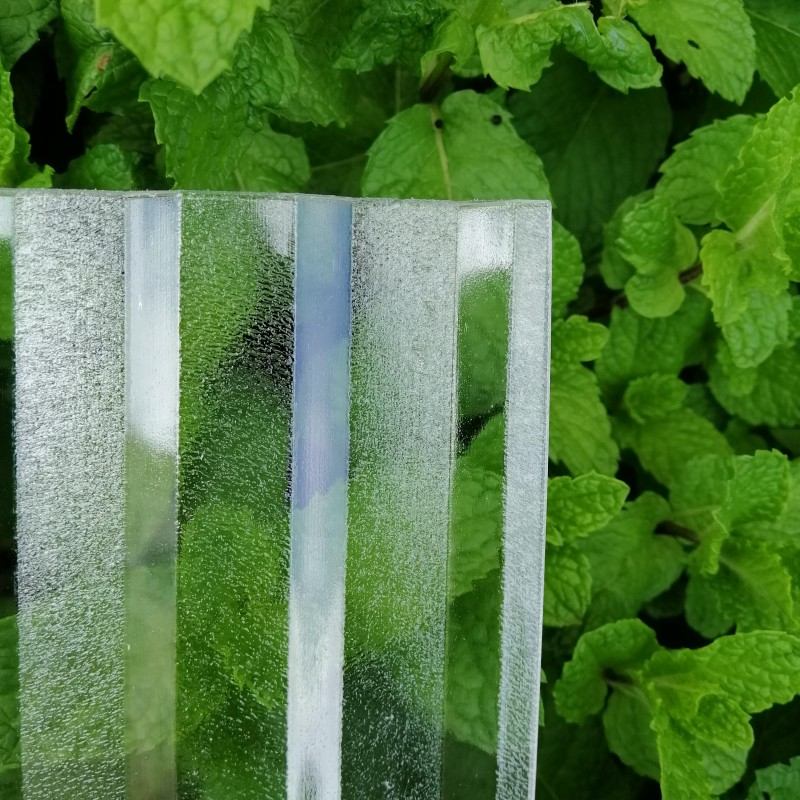

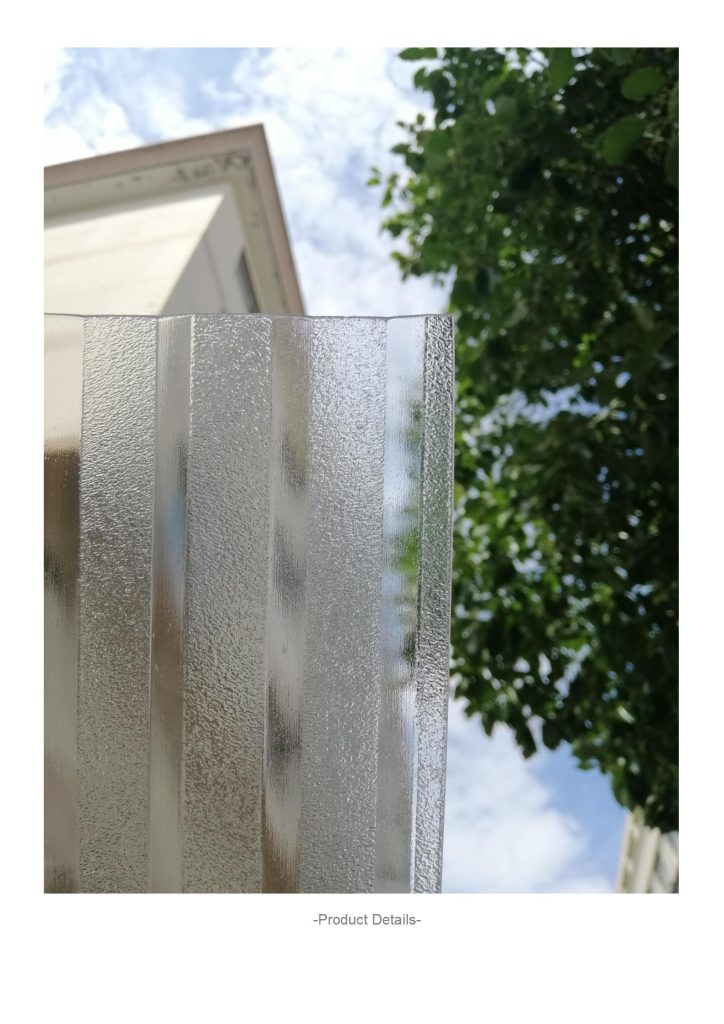

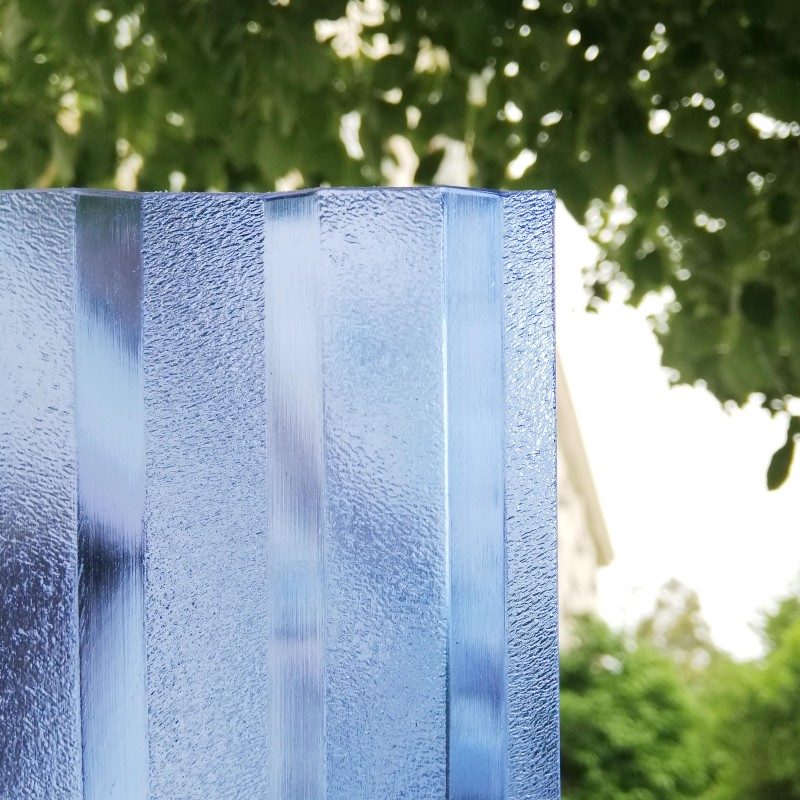

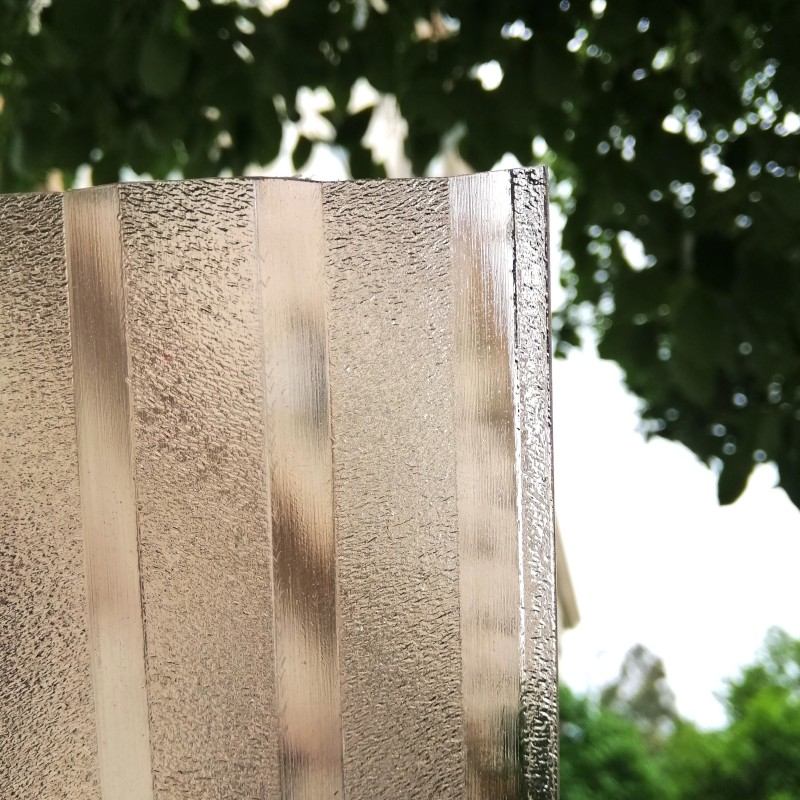

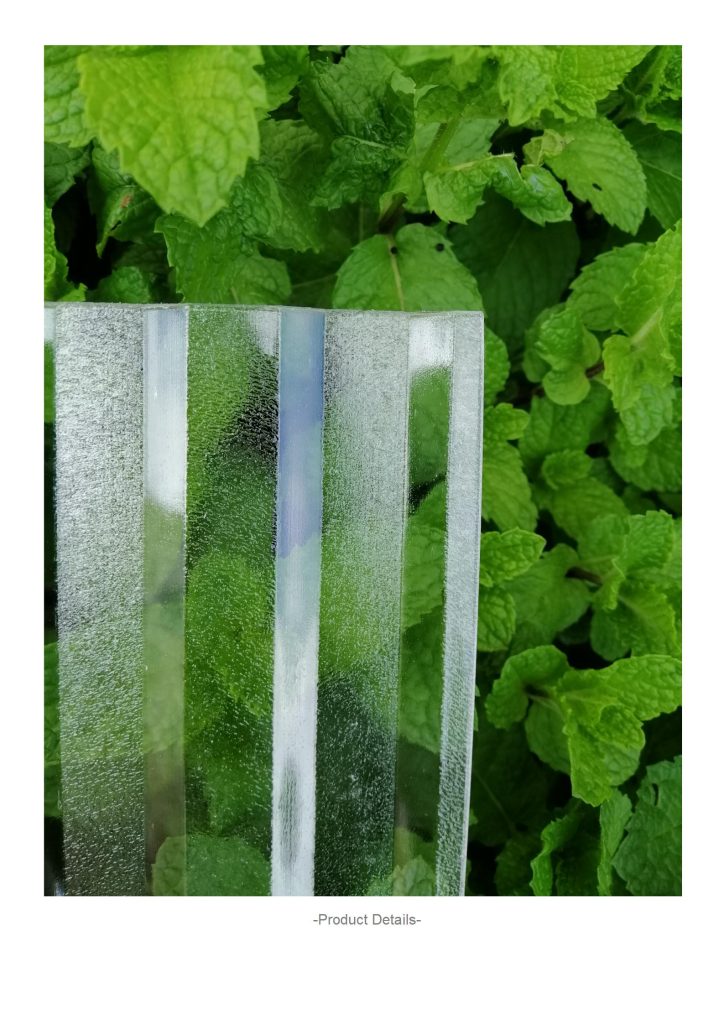

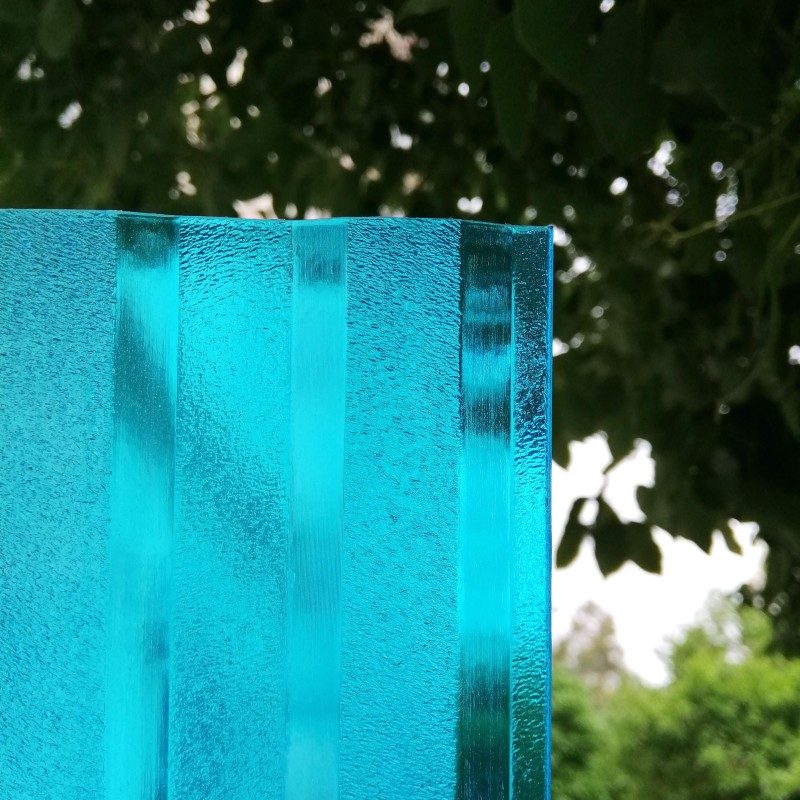

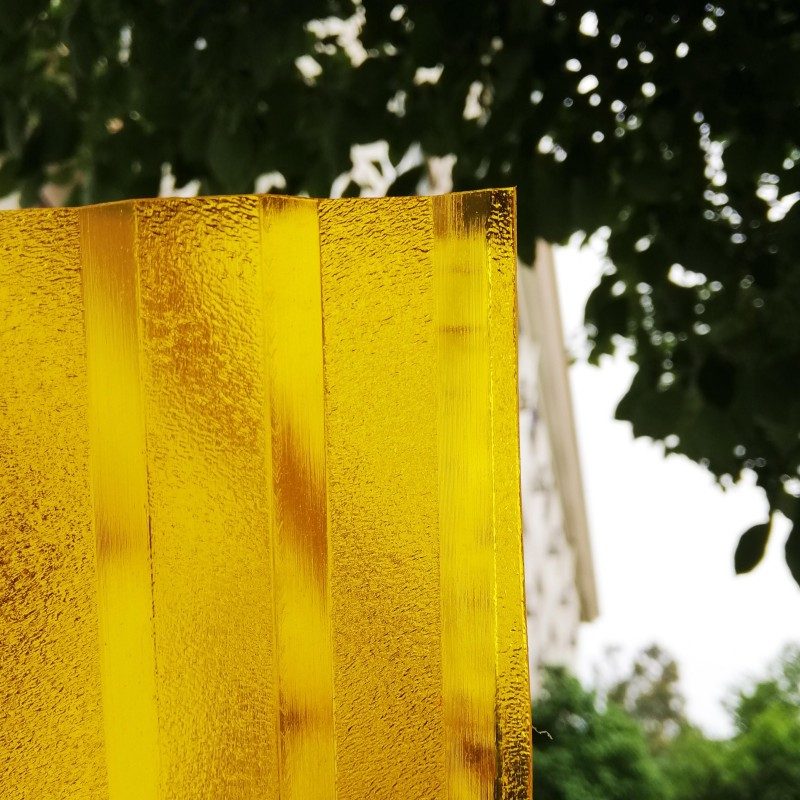

| Surface Texture | Frosted embossed surface, soft uniform light transmission |
| Core Advantages | 1. Roll-type packaging, convenient transportation 2. Length can be customized on demand 3. Simple installation, fast construction speed 4. Excellent bending resistance: 1.5mm Softlite corrugated sheet ≈ 3mm solid PC flat sheet |

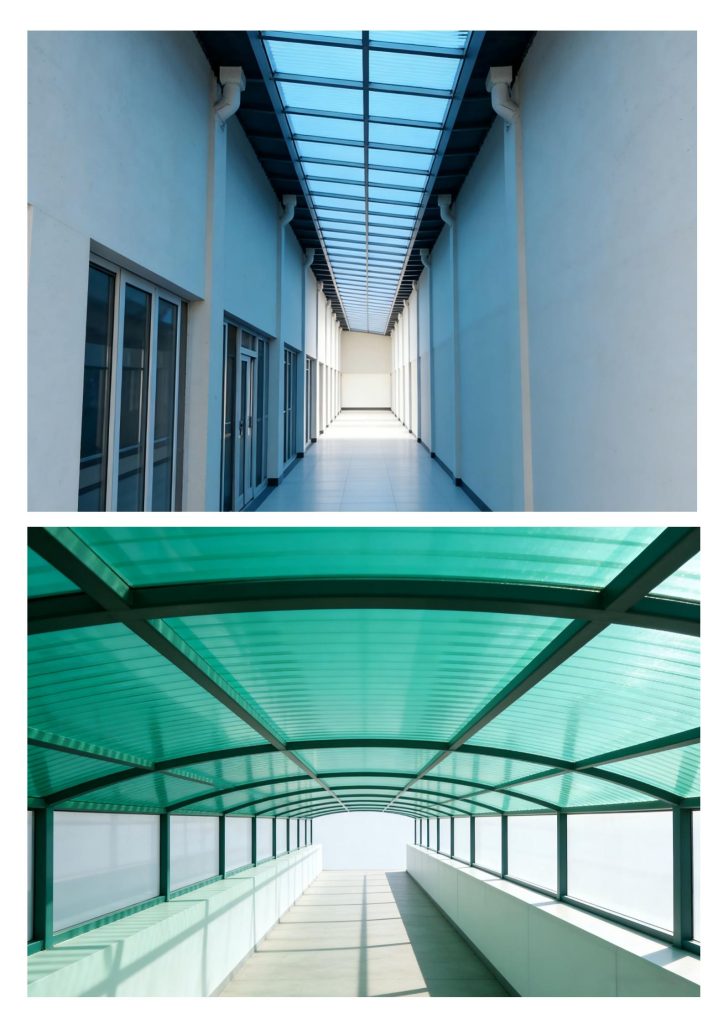

| Application Scenarios | Carport roof, sunshade canopy roofing panel |
| Design Concept | Easy to transport, Easy to install |

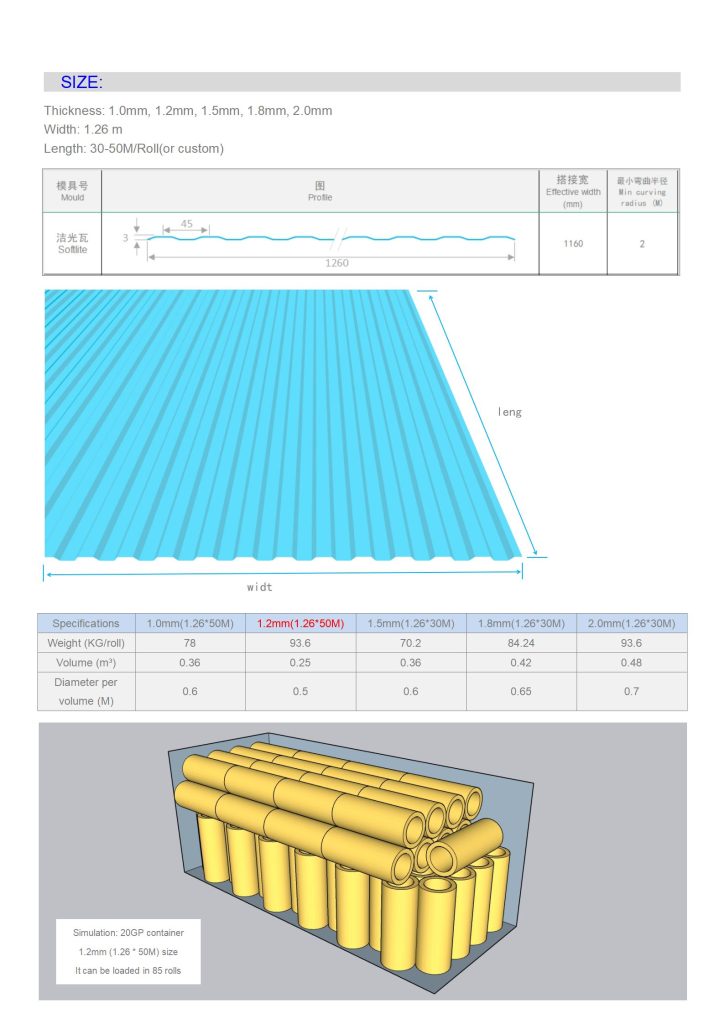

2. Product Dimension Options
| Dimension Item | Optional Parameters |
| Thickness | 1.0mm / 1.2mm / 1.5mm / 1.8mm / 2.0mm |
| Fixed Width | 1.26 m |
| Standard Roll Length | 30–50 M per roll (custom length acceptable) |
3. Complete Roll Specification Data Table
| Specification (Thickness-Width-Length) | Weight (KG/roll) | Volume (m³) | Roll Diameter (M) |
| 1.0mm (1.26m*50M) | 78 | 0.36 | 0.6 |
| 1.2mm (1.26m*50M) | 93.6 | 0.25 | 0.5 |
| 1.5mm (1.26m*30M) | 70.2 | 0.36 | 0.6 |
| 1.8mm (1.26m*30M) | 84.24 | 0.42 | 0.65 |
| 2.0mm (1.26m*30M) | 93.6 | 0.48 | 0.7 |
4. Container Loading Data
| Item | Parameter |
| Container Model | 20GP standard container |
| Tested Product Spec | 1.2mm (1.26m*50M) roll |
| Max Loading Quantity | 85 rolls per 20GP |

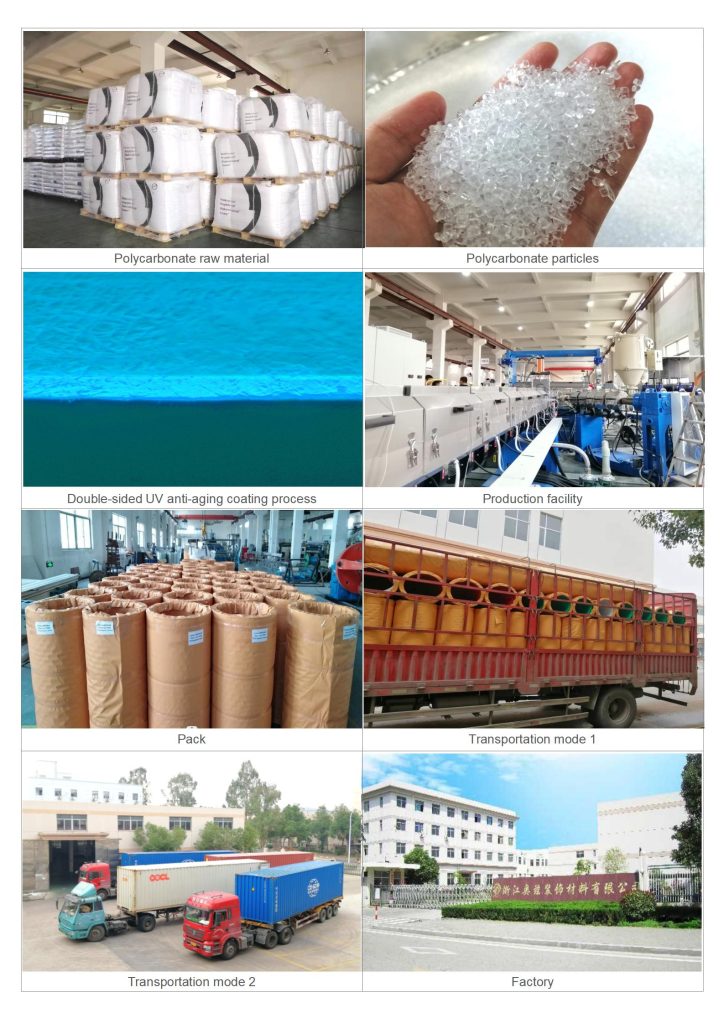

5. Raw Material & Production Process
| Process Link | Details |
| Base Raw Material | Industrial polycarbonate bulk material & transparent PC particles |
| Key Production Process | Double-sided UV anti-aging co-extrusion coating |
| Production Equipment | Full automatic PC corrugated sheet extrusion production line |
6. Packaging & Logistics
| Section | Description |
| Outer Packaging | Kraft paper roll packaging for single coil |
| Transport Mode 1 | Domestic bulk truck delivery |
| Transport Mode 2 | Container sea freight for export |
| Production Base | Zhejiang Aojia Decoration Materials Co., Ltd. |
7. Standard Installation Specifications

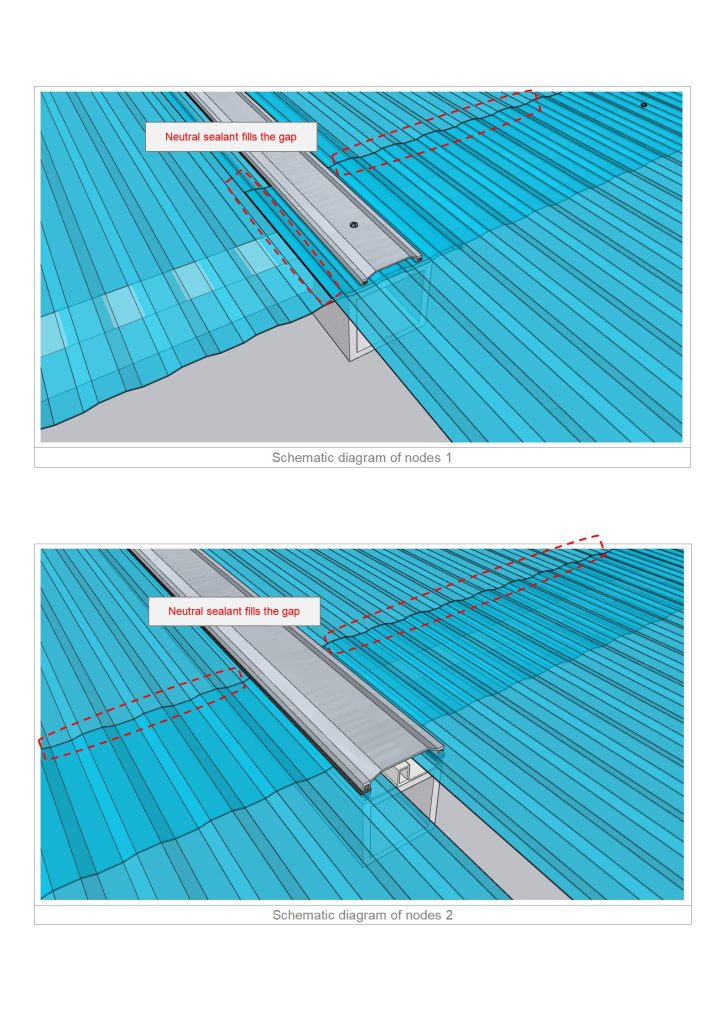

7.1 Gap Sealing Rule
All splicing gaps must be filled with neutral silicone sealant

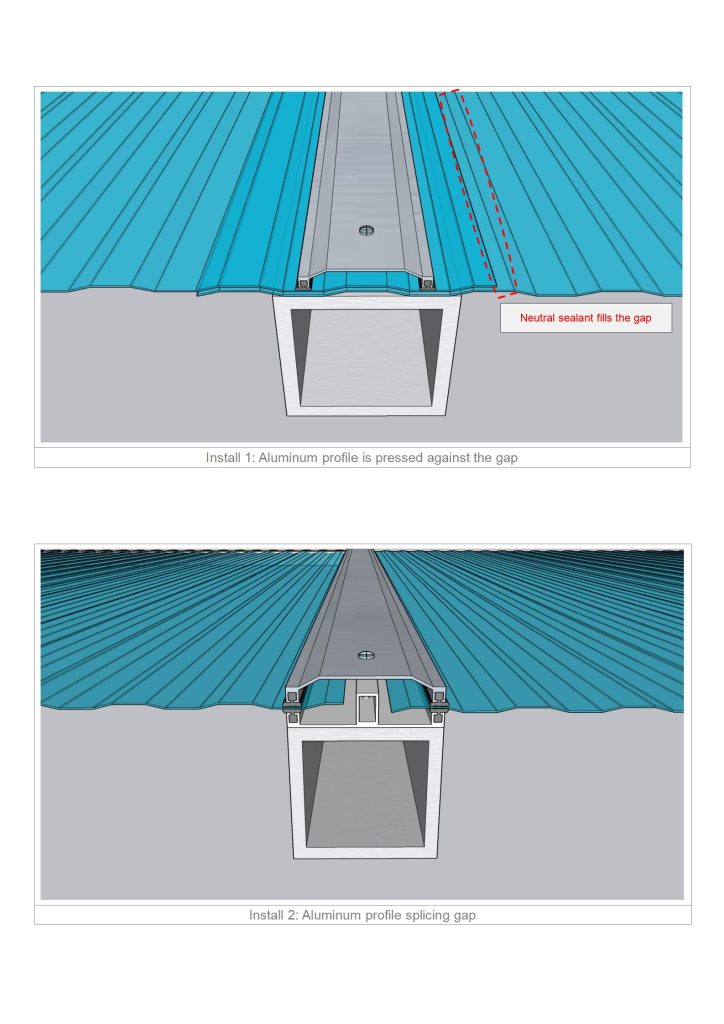

- 1. Installation Type 1: Aluminum cover plate compresses the sheet joint gap
- 2. Installation Type 2: Splicing gap between two aluminum cover profiles
- 3. Node Detail Treatment: Neutral sealant filling required for all roof node joints

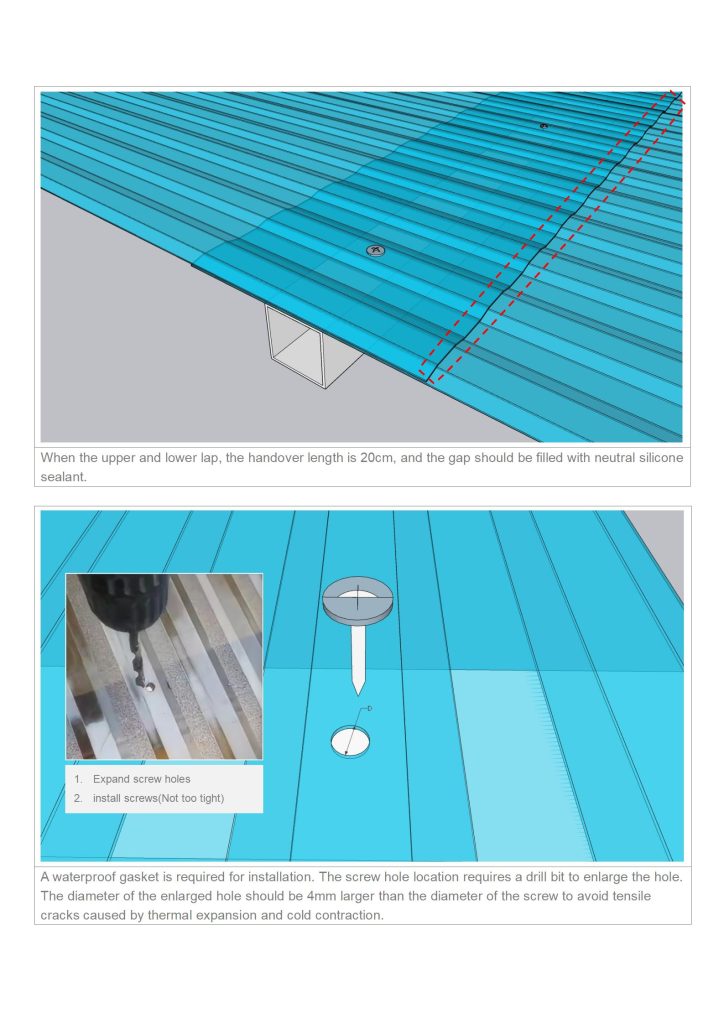

7.2 Overlap Lap Requirement
- • Upper & lower sheet overlap length: 20 cm
- • Seal all overlapping gaps with neutral silicone sealant
7.3 Screw Fixing Operation Steps & Notes
Operation Steps:
- 1. Drill and enlarge screw holes in advance
- 2. Install self-tapping screws (Do not over-tighten screws)
Mandatory Installation Notes:
- 1. Waterproof rubber gaskets must be matched with each screw
- 2. Expanded hole diameter = screw diameter + 4mm
- 3. Purpose of hole expansion: Prevent sheet cracking caused by thermal expansion and cold contraction
