PC Solid Sheet – Polycarbonate Sheet

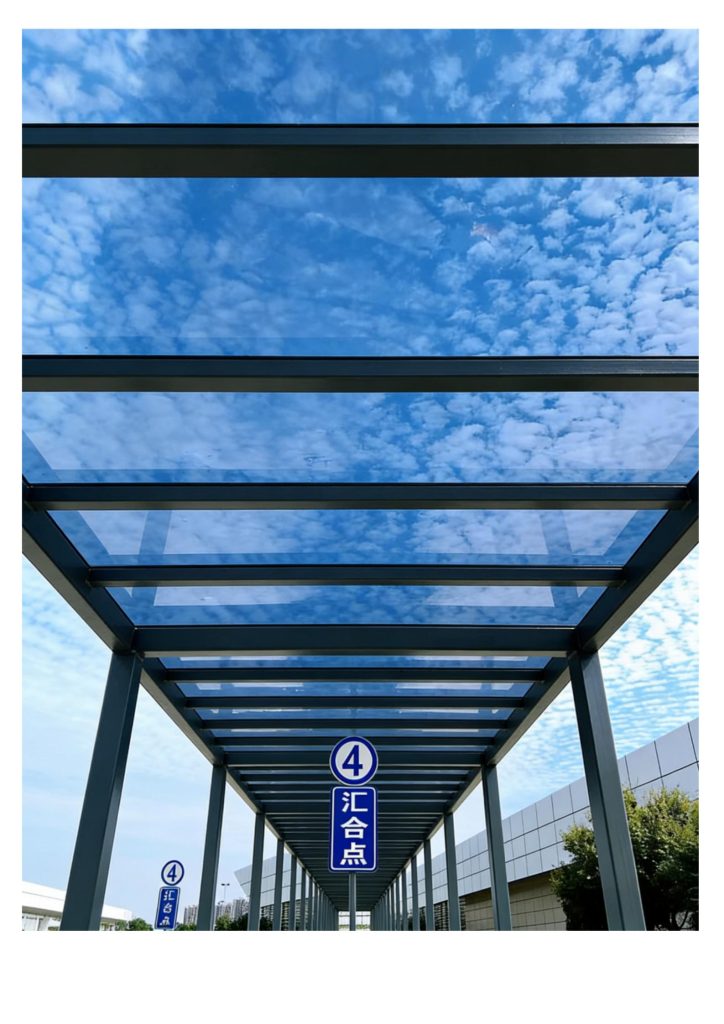

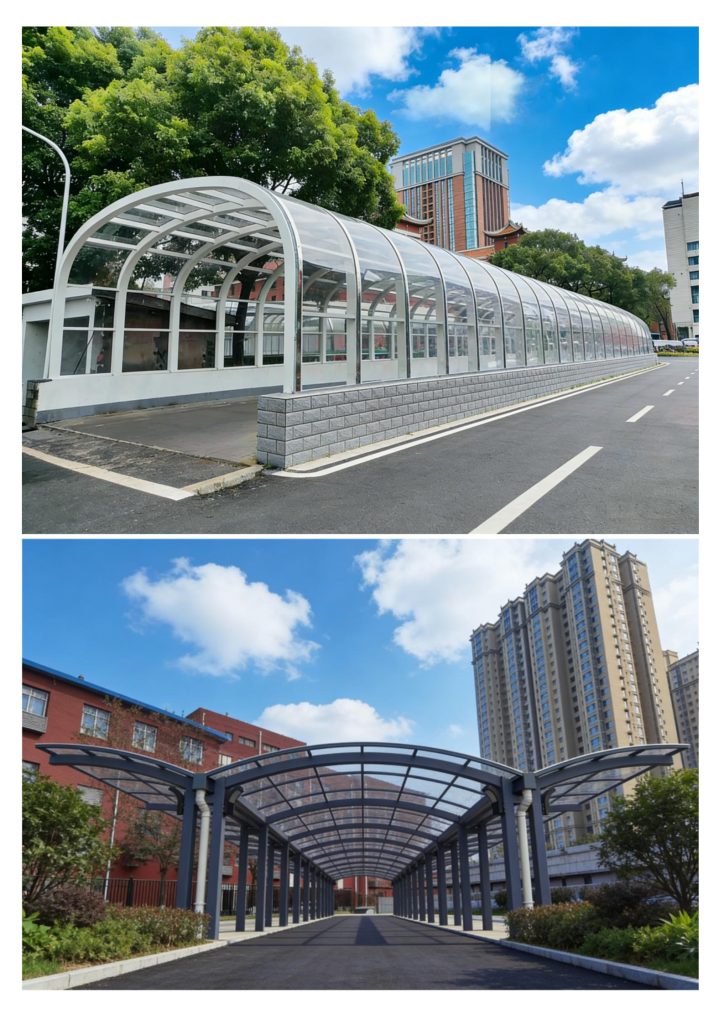

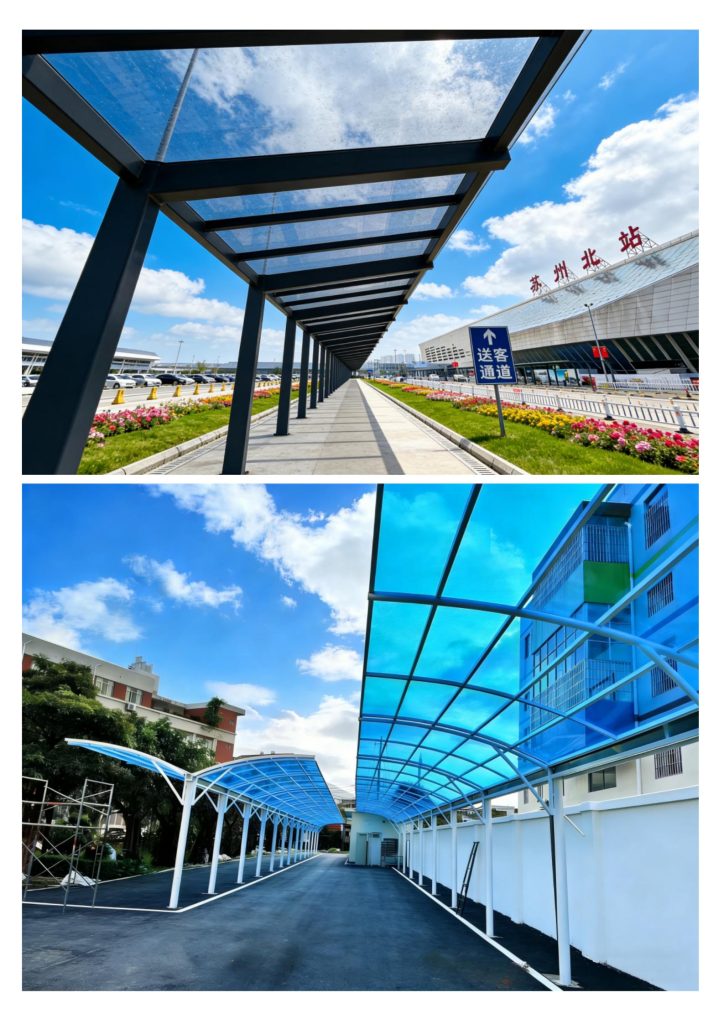

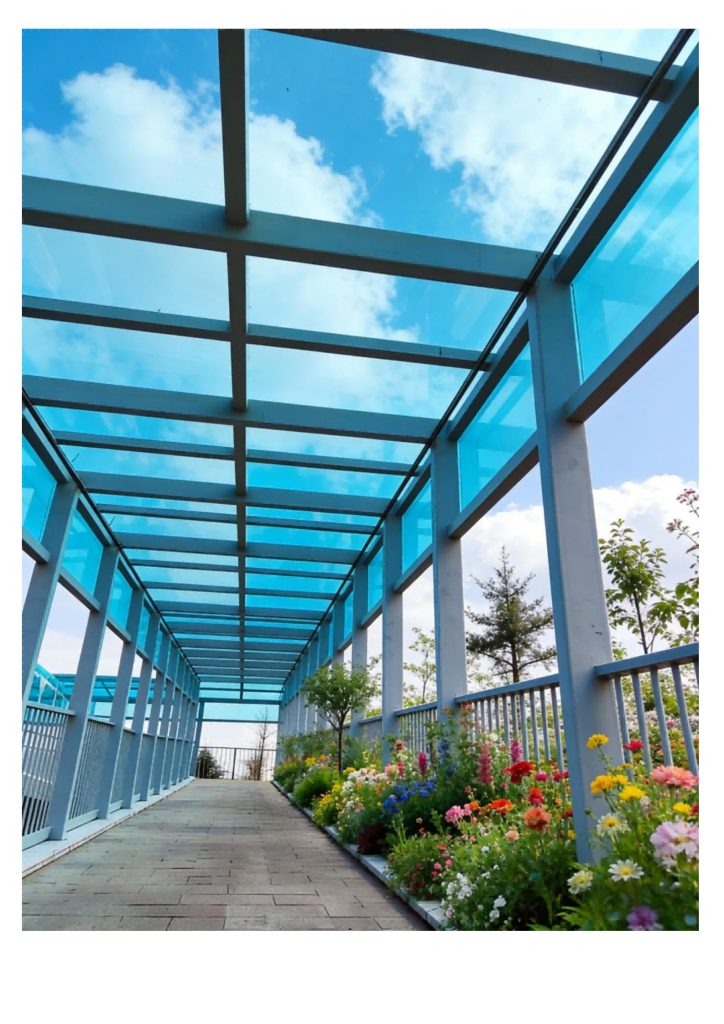

PC Solid Sheet is a high-performance solid panel manufactured with premium polycarbonate raw materials. It features a full range of outstanding properties and is widely applied in architectural daylighting, safety protection, advertising display and many other fields. Detailed specifications are as follows:

1. Product Features

1. Premium Raw Materials: Produced exclusively with Covestro and Sabic polycarbonate raw materials without recycled materials to guarantee consistent product quality.

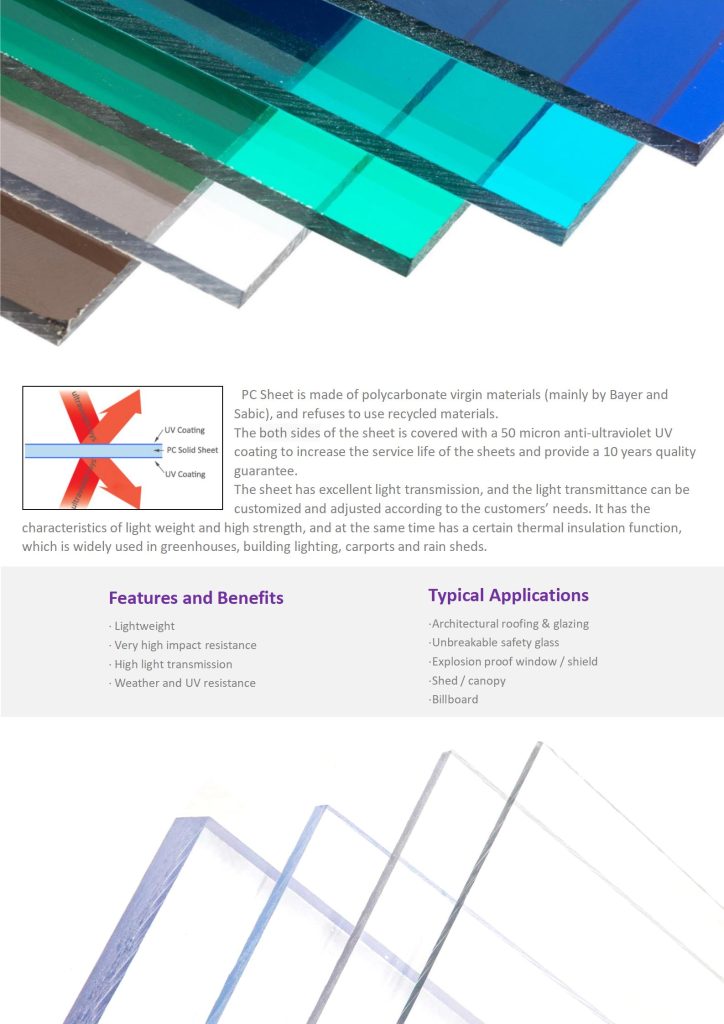

2. UV Resistance: Equipped with high-concentration co-extruded UV coating on both sides to extend service life and covered by a 10-year quality warranty. Accelerated weathering tests prove that UV coating effectively slows down panel aging. Without UV coating, PC sheets will turn yellow, crack and degrade within only 2–3 years, as pure polycarbonate has poor natural UV resistance. Double-sided UV coating is mandatory to secure a 10+ year outdoor service life.
3. Adjustable Light Transmittance: Excellent light transmission comparable to glass. Transmittance and color can be customized per client demands, including clear, bronze, lake blue, royal blue, dark grey, light grey, grass green, opal white and other shades.
4. Lightweight & High Impact Resistance
   • Weight equals only half of glass with identical thickness, enabling easy transportation and installation.
   • Impact resistance is 30 times that of tempered glass, delivering superior safety performance for shatterproof glazing, explosion-proof viewing windows, riot shields and similar scenarios.
5. Multifunctional Performance
   • Effective thermal insulation to improve building energy efficiency.
   • Easy fabrication and installation to meet diverse engineering requirements.

2. Product Specifications

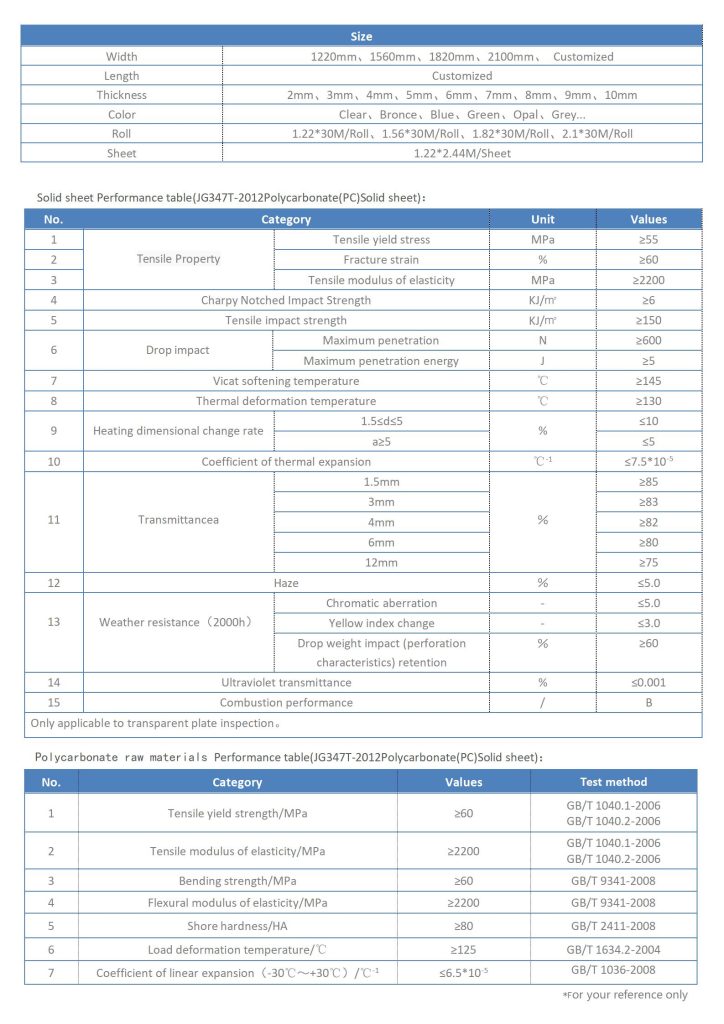

2.1 Dimensional Parameters

Item	Details
Standard Width	1220mm, 1560mm, 1820mm, 2100mm; custom widths available
Length	Fully customizable
Available Thickness	2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm
Roll Dimensions	1.22m×30m/roll, 1.56m×30m/roll, 1.82m×30m/roll, 2.1m×30m/roll
Standard Sheet Size	1.22m×2.44m per sheet

2.2 Physical & Mechanical Properties (Compliant with Standard JG347/T-2012 Polycarbonate (PC) Solid Sheets)

Performance Category	Index Standard Value
Tensile Yield Stress	≥55MPa
Nominal Tensile Breaking Strain	≥60%
Tensile Modulus of Elasticity	≥2200MPa
Charpy Notched Impact Strength	≥6kJ/㎡
Tensile Impact Strength	≥150kJ/㎡
Maximum Penetration Force (Drop Weight Impact)	≥600N
Maximum Penetration Energy (Drop Weight Impact)	≥5J
Vicat Softening Temperature	≥145℃
Heat Distortion Temperature	≥130℃
Heating Dimensional Change Rate (1.5mm ≤ d ≤ 5mm)	≤10%
Heating Dimensional Change Rate (d ≥ 5mm)	≤5%
Linear Thermal Expansion Coefficient	≤7.5×10⁻⁵ /℃
Light Transmittance (Clear 1.5mm Sheet)	≥85%
Light Transmittance (Clear 3mm Sheet)	≥83%
Light Transmittance (Clear 4mm Sheet)	≥82%
Light Transmittance (Clear 6mm Sheet)	≥80%
Light Transmittance (Clear 12mm Sheet)	≥75%
Haze Value	≤5.0%
UV Transmittance Ratio	≤0.001%
Color Difference after 2000h Weathering Test	≤5.0
Yellow Index Variation after 2000h Weathering Test	≤3.0
Retention Rate of Drop Weight Impact Performance after Weathering	≥60%
Combustion Performance	Class B or above

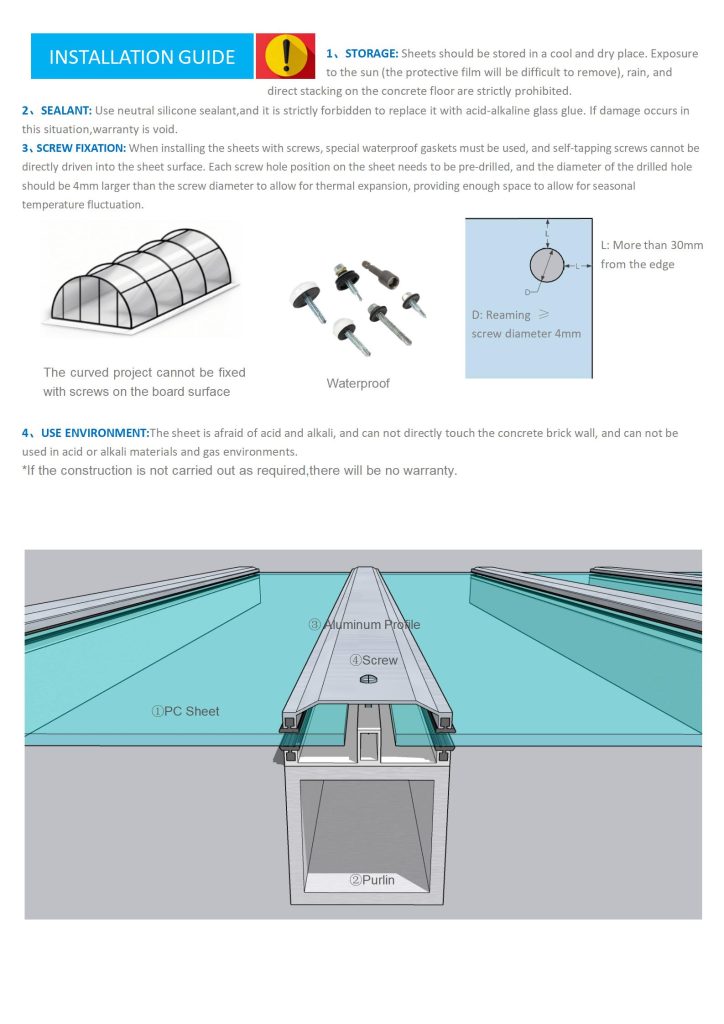

3. Installation & Operation Notes

1. Storage Requirements: Store panels in cool, dry areas. Avoid direct sunlight (protective film will stick firmly and become unpeelable) and rain exposure. Do not stack sheets directly on bare cement ground.
2. Sealant Selection: Only neutral silicone sealant is permitted; acidic or alkaline glass sealants are prohibited.
3. Screw Fastening Rules
   • Rivet installation is forbidden. For curved PC Solid Sheet projects, drilling screws through panels is not allowed; flat-slope applications are also discouraged. If screw installation is unavoidable, special waterproof gaskets must be fitted. Pre-drill enlarged holes: drill diameter shall be 4mm larger than screw diameter. All screw holes shall be set at least 30mm away from sheet edges to prevent cracking caused by thermal expansion and contraction.
4. Service Environment Limitations: PC Solid Sheet is vulnerable to acid and alkali chemicals. Direct contact with cement brick walls is forbidden, and it cannot be used in environments with acidic or alkaline substances/vapors.
5. Protective Film Removal: Surface protective films prevent scratches during transportation and installation. All films must be fully peeled off immediately after construction completion.
6. Joint Schematic: Illustrates assembly connections of PC sheets, purlins, special aluminum profiles, self-tapping screws and other fittings.
