1. Introduction
This guide covers the installation of two types of polycarbonate (PC) sheet canopies: PC hollow sheet canopy and PC solid sheet canopy. It includes required accessories, specifications and standard assembly steps for your reference.
2. Required Accessories & Functions

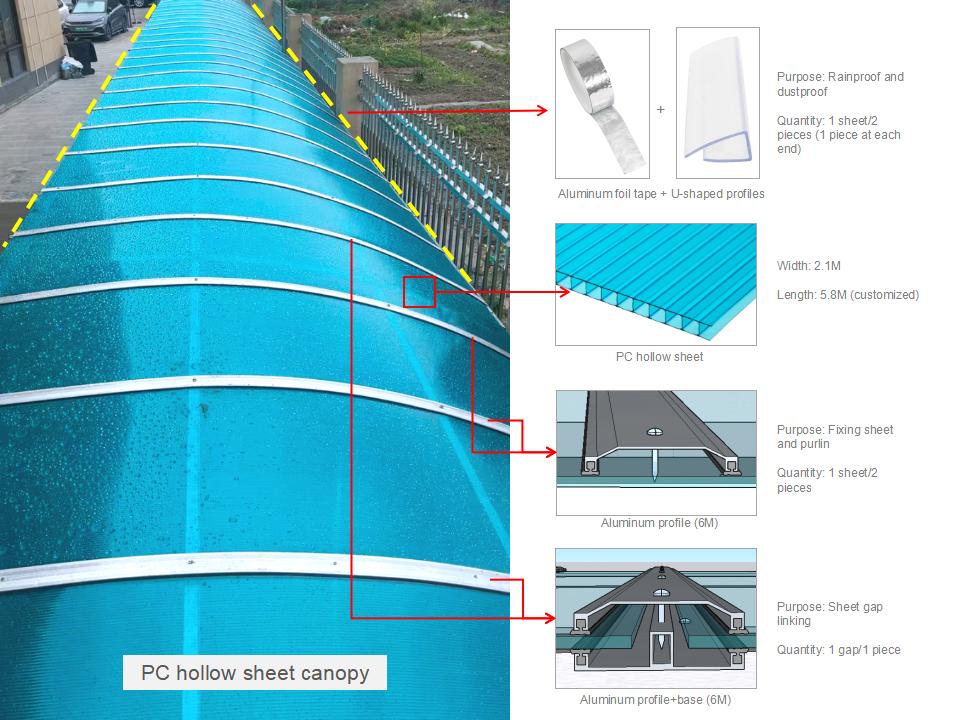

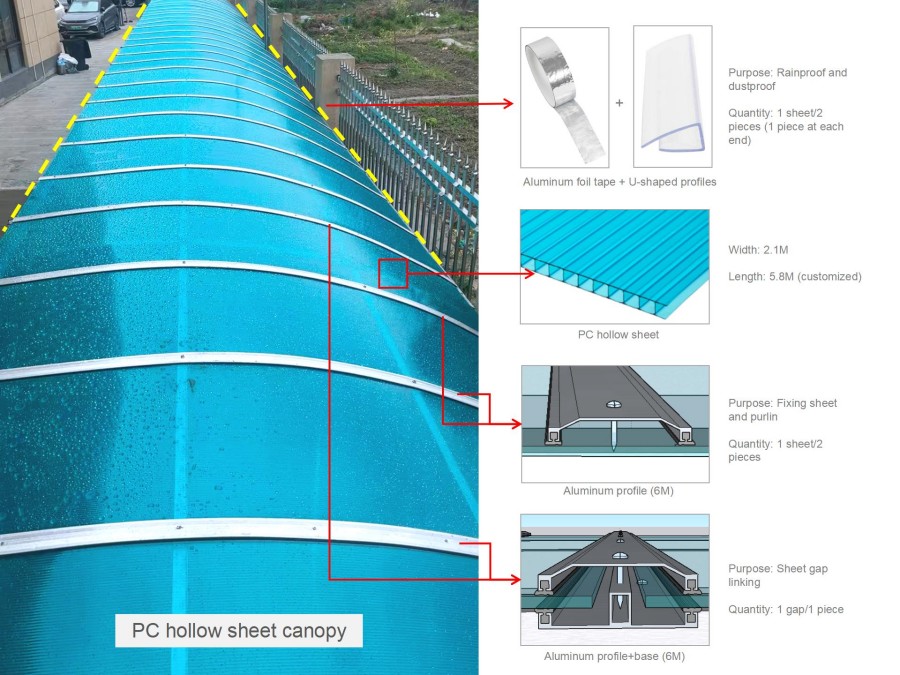

- Aluminum foil tape
Function: Rainproof and dustproof.
Usage: 2 pieces per sheet (one for each end).
- U-shaped profiles
Function: Connect gaps between PC sheets.
Usage: 1 piece for each sheet gap.
- 6m Aluminum profiles & Aluminum profiles with bases
Function: Fix PC sheets to purlins.
Usage: 2 pieces per sheet.
3. PC Hollow Sheet Canopy Installation
Product Specification
Standard size: 2.1m (Width) × 5.8m (Length). Custom lengths are acceptable.
Assembly Steps
- Arrange purlins in place as required.
- Install aluminum profiles and aluminum profiles with bases on the purlins.
- Place PC hollow sheets onto the profiles and fasten with screws.
- Use U-shaped profiles to connect gaps between adjacent sheets.
- Paste aluminum foil tape at both ends of each sheet for waterproof and dustproof treatment.
Structure Reference

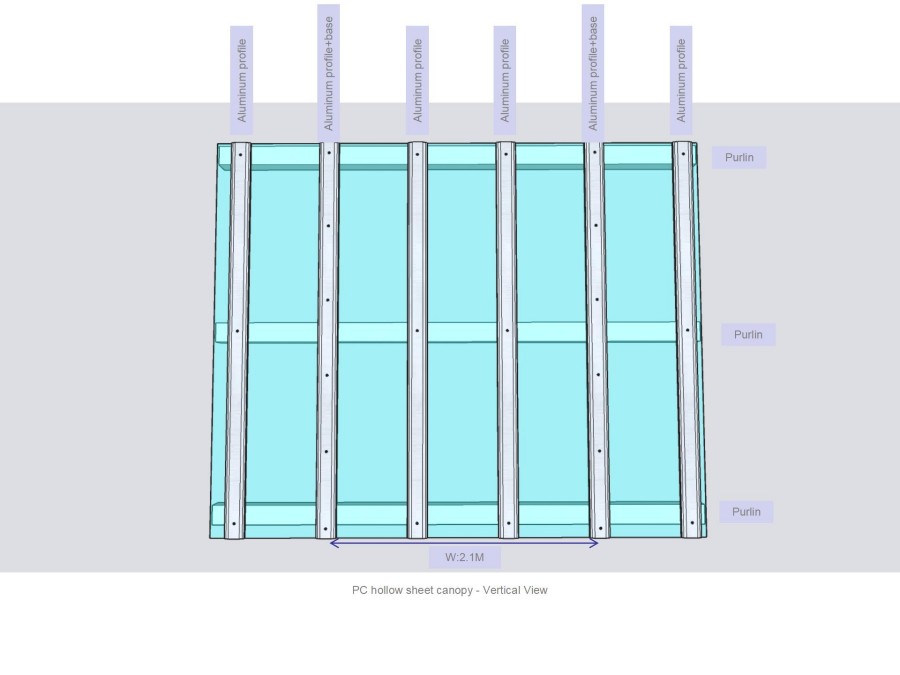

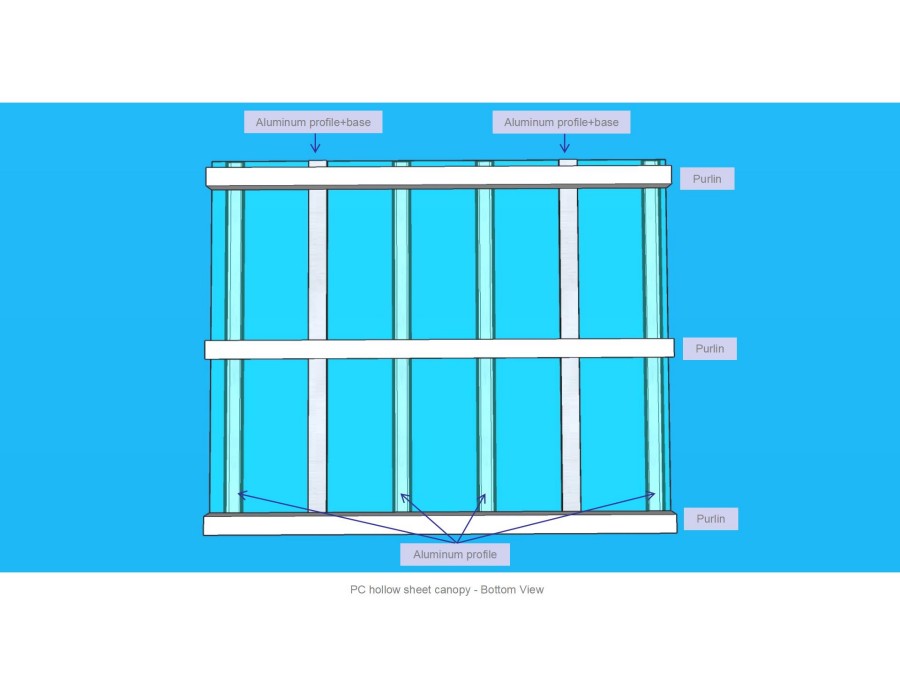

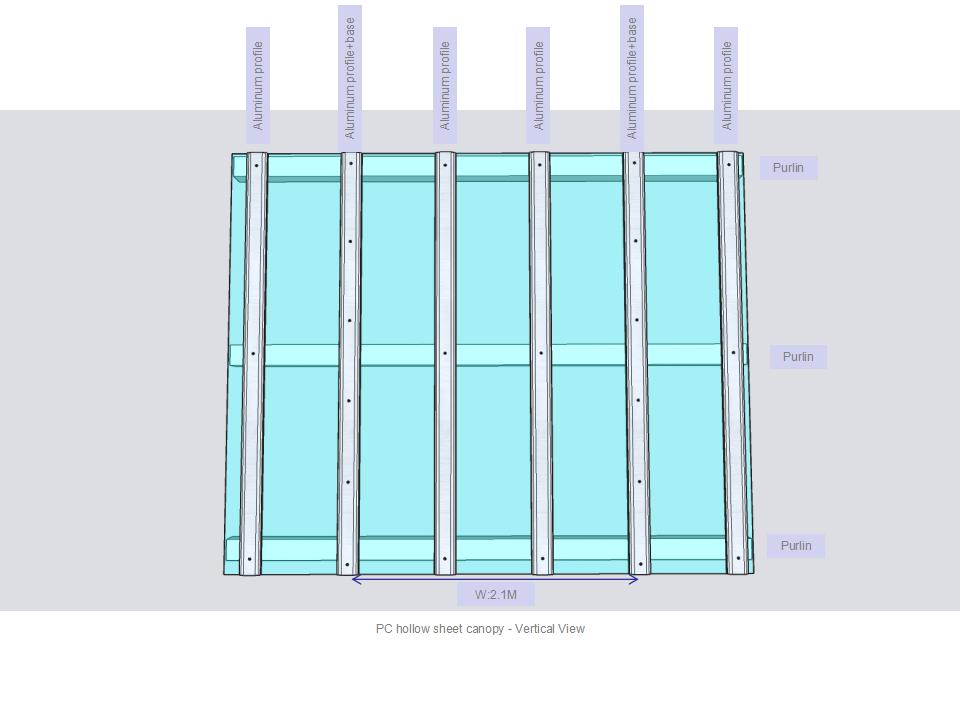

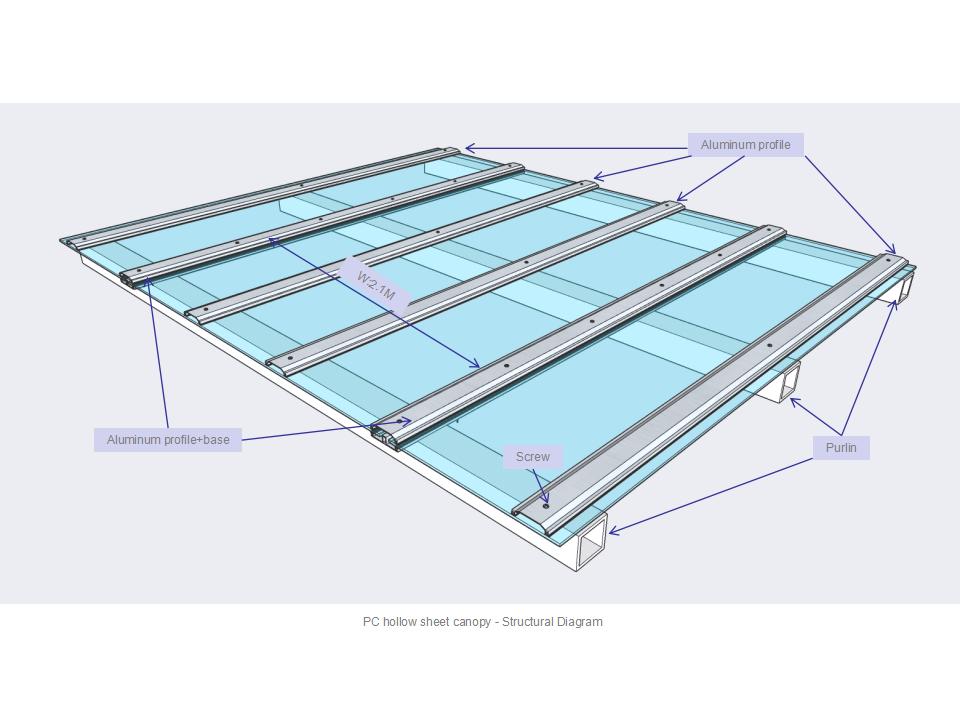

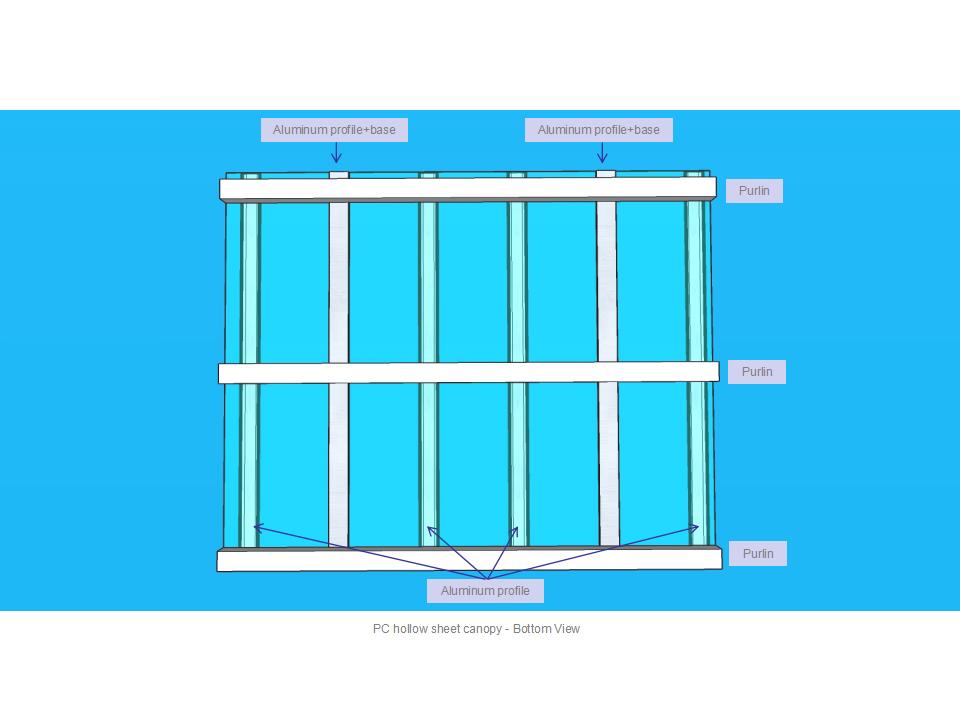

Follow the provided structural diagram, vertical view and bottom view for overall layout during installation.
4. PC Solid Sheet Canopy Installation
Product Specification

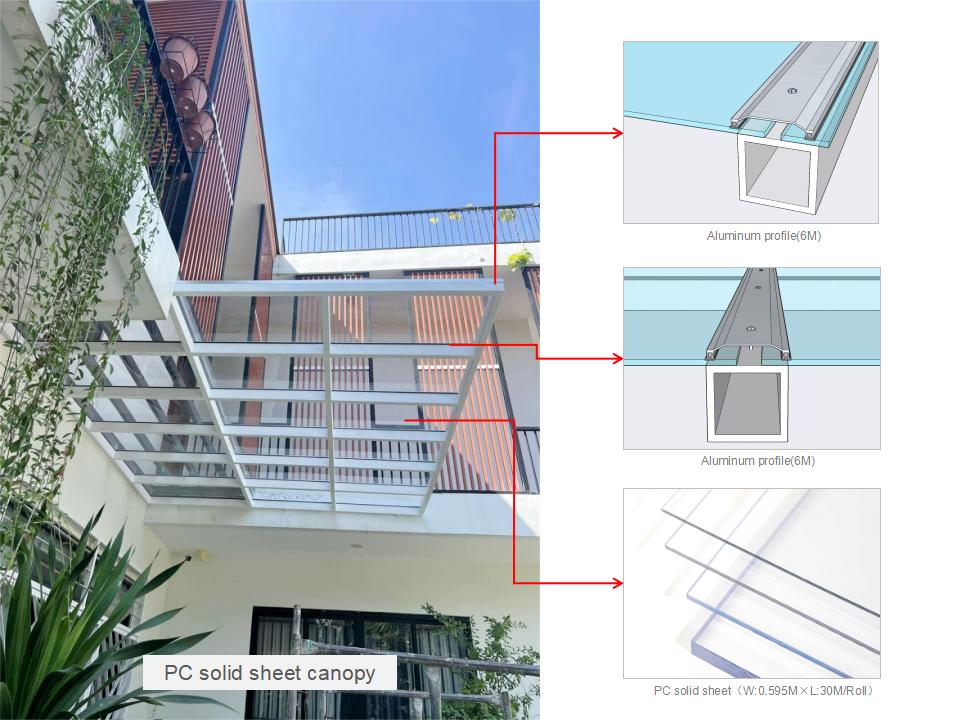

Roll size: 0.595m (Width) × 30m (Length).
Installation Requirement
Keep the center-to-center spacing between purlins at 0.6m.
Assembly Steps
- Set purlins with a standard spacing of 0.6m (center to center).
- Mount aluminum profiles on the purlins orderly.
- Unfold PC solid sheets and lay them on the profiles.
- Connect sheet joints with U-shaped profiles.
- Apply aluminum foil tape at sheet ends to prevent water and dust ingress.
Structure Reference

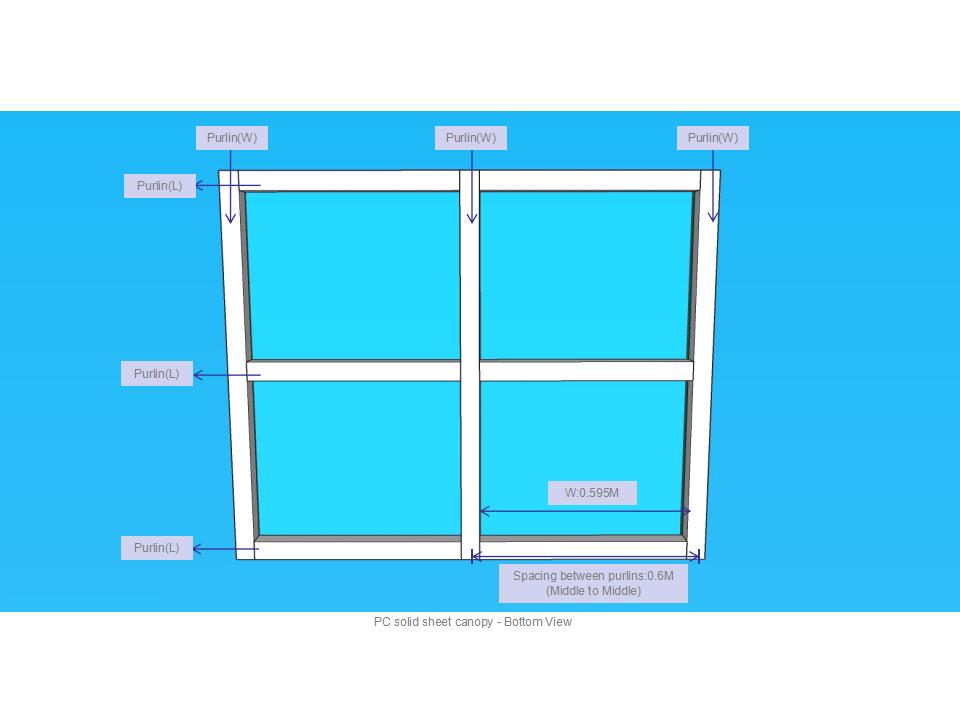

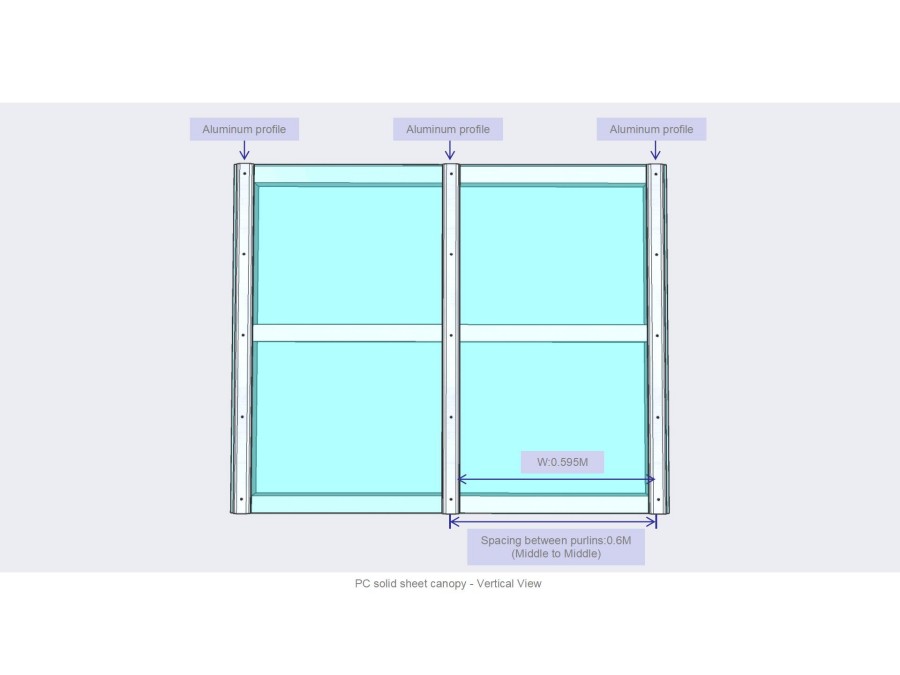

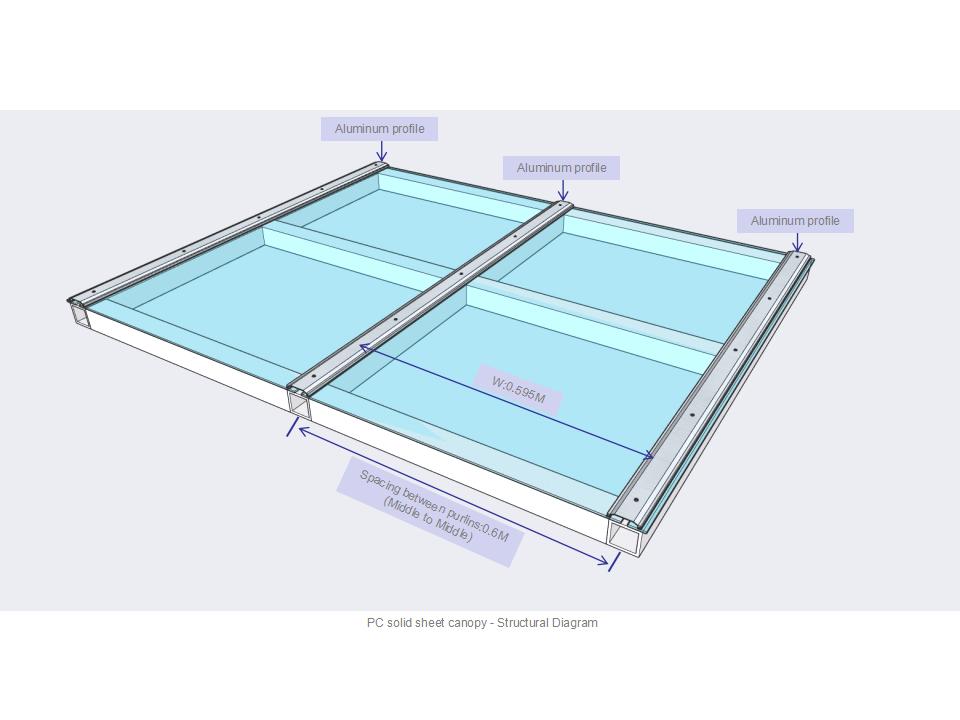

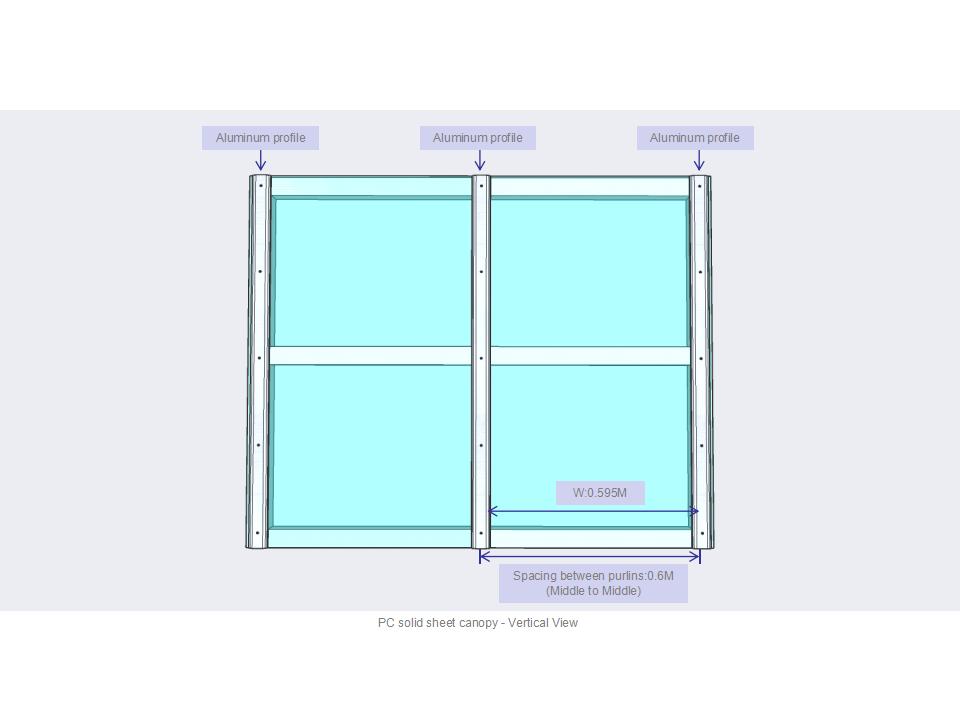

Refer to the vertical view, bottom view and structural diagram to complete assembly.
5. Notes
- Install all accessories firmly to ensure stability.
- Strictly follow the standard purlin spacing for better load-bearing performance.
- All connection gaps must be properly sealed for long-term service life.
